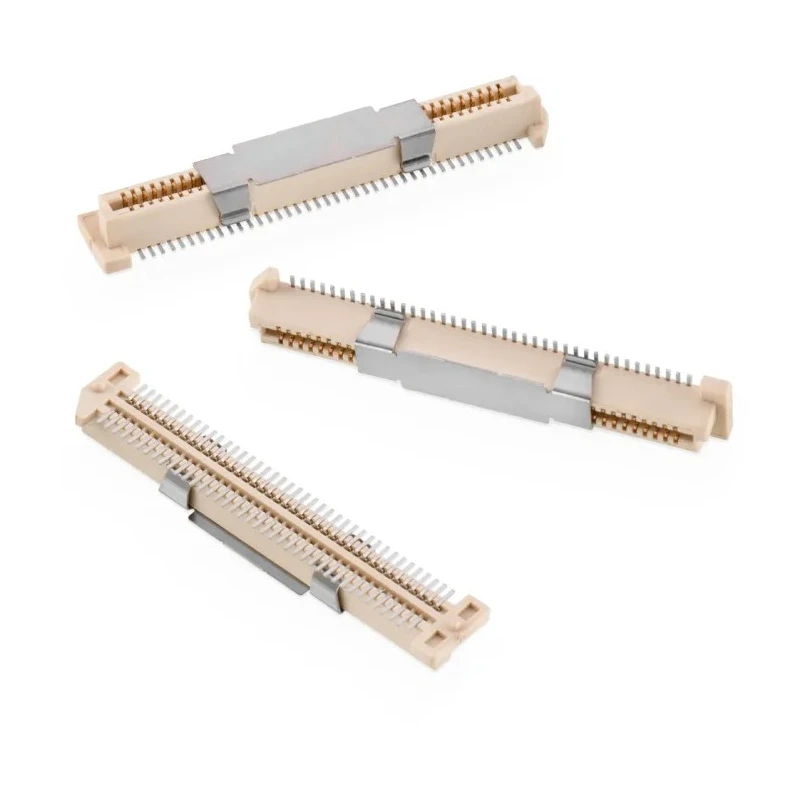

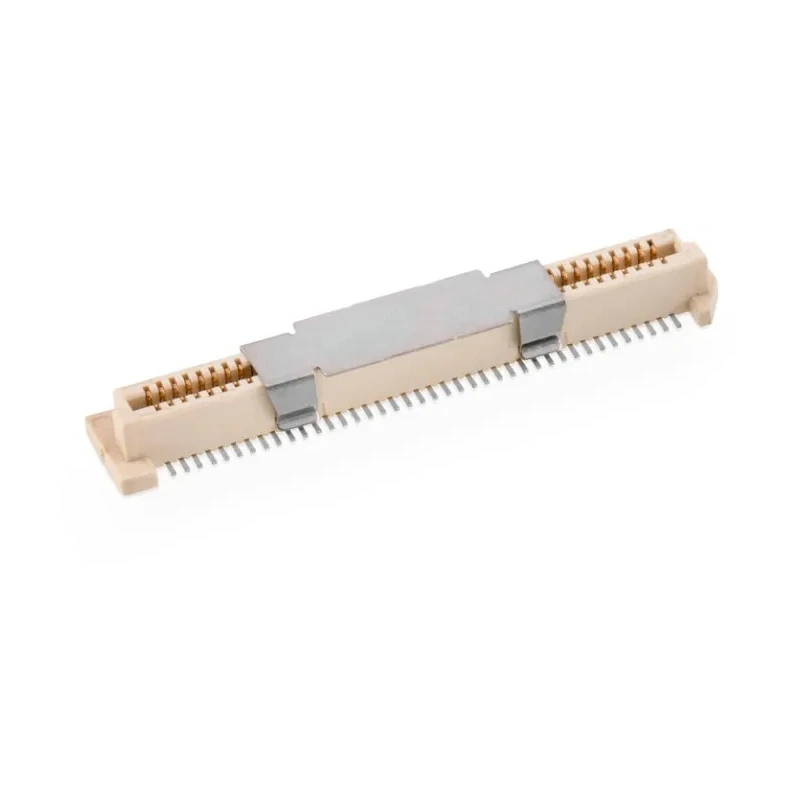

Wurth Elektronik WR-BTB Series Vertical Surface PCB Socket 80-Contact 1 Row 0.8 mm Pitch 50V 500mA 658803713080

Name: Wurth Elektronik WR-BTB Series Vertical Surface PCB Socket 80-Contact 1 Row 0.8 mm Pitch 50V 500mA 658803713080
Brand: Wurth Elektronik
SKU: 190483
Price: 7.57 USD
Availability: InStock



Category PCB Socket Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	50V
Brand	Wurth Elektronik
Orientation	Vertical
Current	500mA
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	WR-BTB
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	80
Contact Gender	Female
Connector System	Board-to-Board
Withstanding Voltage	500 V (AC)
Insulator Material	LCP

Key Features

The connector system supports board-to-board interfacing with a female contact gender.
Constructed with liquid crystal polymer housing and copper alloy contacts plated with gold for reliability.
Rated for 500 mA current and 50 V voltage withstanding voltage of 500 V AC.
Designed to operate within a temperature range of -55°C to 85°C suitable for industrial environments.
This WR-BTB series PCB socket uses solder termination for surface mount technology.
Vertical orientation facilitates compact assembly on PCBs.
Manufactured in China ensuring adherence to specified quality standards.
Absence of formal approvals simplifies integration in custom electronics projects.

Product Description

Wurth Elektronik 658803713080 vertical surface PCB socket is engineered for reliable board-to-board connections with 80 contacts arranged in a single row and a precise 0.8 mm pitch.

This socket belongs to the WR-BTB series designed for vertical mounting, utilizing solder termination on surface mount technology substrates. Its housing is made from liquid crystal polymer (LCP), offering excellent insulation and mechanical stability.

The contacts are composed of copper alloy and plated with gold, ensuring superior conductivity and corrosion resistance. The connector system is female type and supports current up to 500 mA and voltage up to 50 V with a withstand rating of 500 V AC, making it suitable for various low-power electronic circuits.

Operating reliably within temperatures from -55°C to 85°C, this component is ideal for use in industrial and commercial electronic assemblies where robust performance is mandatory.

This PCB socket is manufactured in China under strict quality controls but does not carry formal certifications or regulatory approvals, allowing for flexible application across diverse projects.

The connector supports board-to-board connections with vertical orientation. Features 80 contacts arranged in a single row with 0.8 mm pitch. Housing constructed from liquid crystal polymer provides insulation and durability.

Copper alloy contacts are gold plated for enhanced electrical performance. Supports 500 mA current at 50 V voltage with a 500 V AC withstand. Operates in a wide temperature range from -55°C to 85°C. Solder termination ensures reliable surface mount connection.

Manufactured in China ensuring consistent quality standards. This product is a key component for industrial, laboratory, manufacturing, and commercial electronic equipment requiring dependable board connectors. Explore more top-quality PCB Sockets and connectors from Wurth Elektronik at EnvMart for your next project needs.
