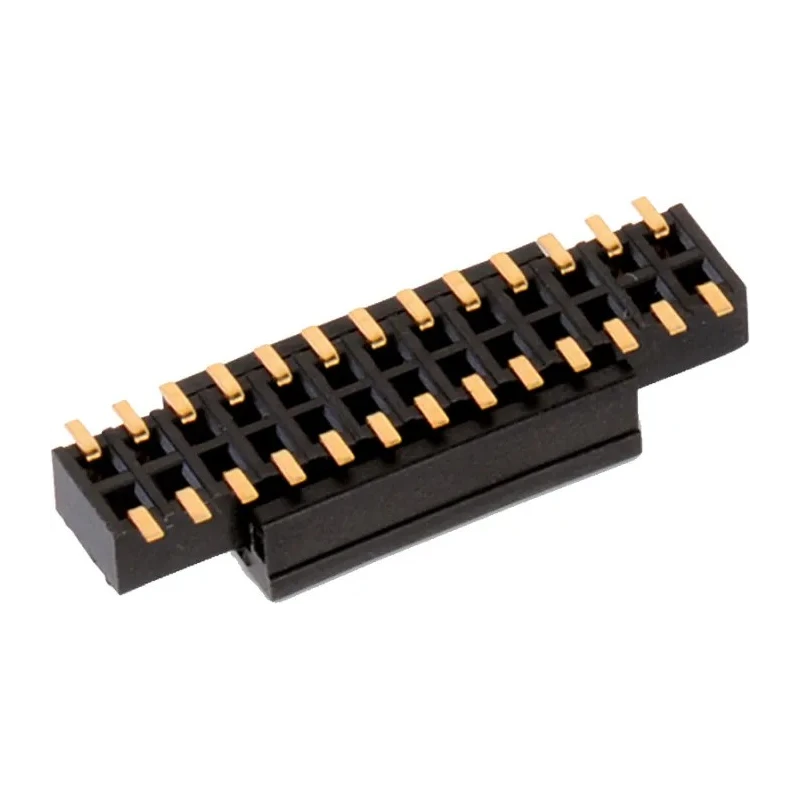

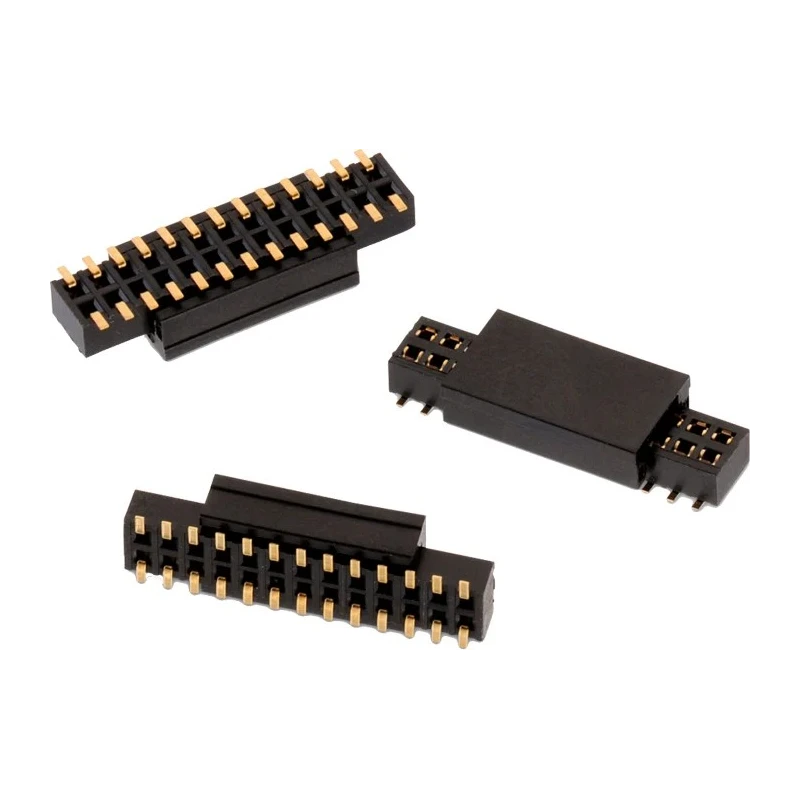

Wurth Elektronik WR-PHD Series Bottom Entry Surface PCB Socket, 50-Contact, 2 Row, 1.27 mm Pitch, 1A, 100V 623350235321

Wurth Elektronik 623350235321 Bottom Entry Surface PCB Socket is part of the WR-PHD series engineered for reliable board-to-board electrical connections. This PCB socket features 50 contacts arranged in 2 rows with a precise 1.27 mm pitch, optimized for surface mounting applications. The socket uses a durable polyamide housing (PA9T) providing strong insulation and mechanical strength.

The contact system includes female contacts made from copper alloy plated with gold, enhancing conductivity and corrosion resistance. It is designed for a maximum current of 1A and operates safely at voltages up to 100V. It can withstand AC voltages up to 500 V, making it suitable for various electronics assembly requirements.

Its bottom entry orientation and 1.27 mm row pitch ensure compact placement and compatibility within high-density PCB layouts. The product has a robust operating temperature range from -40°C to +105°C, supporting use in demanding industrial and commercial electronics environments including telecommunications, computing, and measurement equipment.

Manufactured in China with the Wurth Elektronik quality standards, this socket is ideal for electronic component manufacturers seeking a dependable board-to-board connector solution. It facilitates efficient solder termination on PCBs and supports the assembly of multi-layer circuit designs.

Polyamide housing provides electrical insulation and durability. 50 female contacts plated with gold for enhanced connectivity. Supports 1A current and 100V voltage rating typical for PCB applications. Bottom entry surface mount design for streamlined PCB assembly.

Wide operating temperature range from -40 to 105 degrees Celsius for industrial use. Explore the extensive range of PCB Sockets and connectors at EnvMart for your electronics projects and industrial applications.
