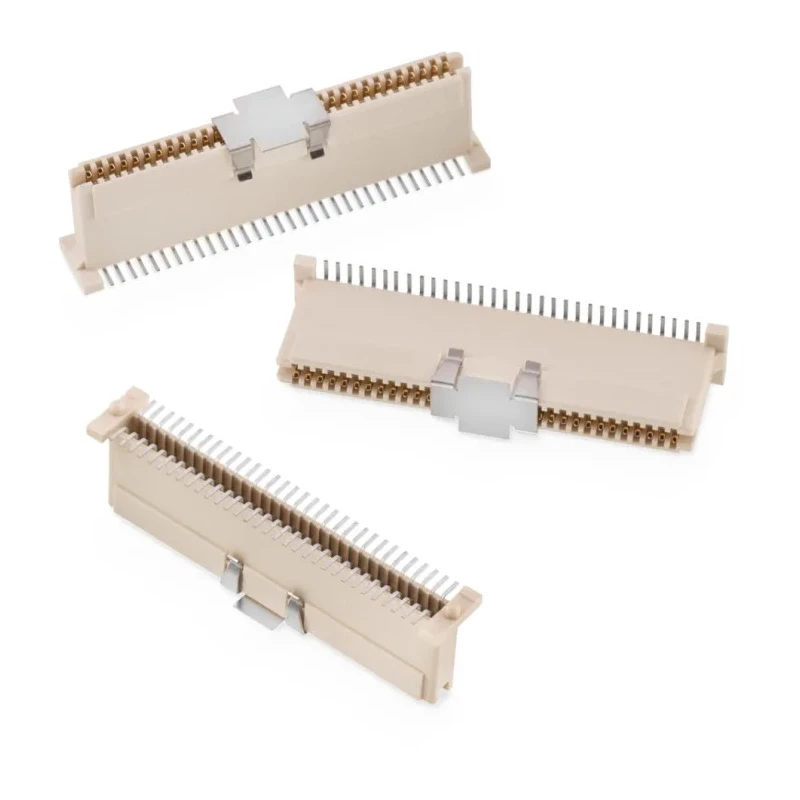

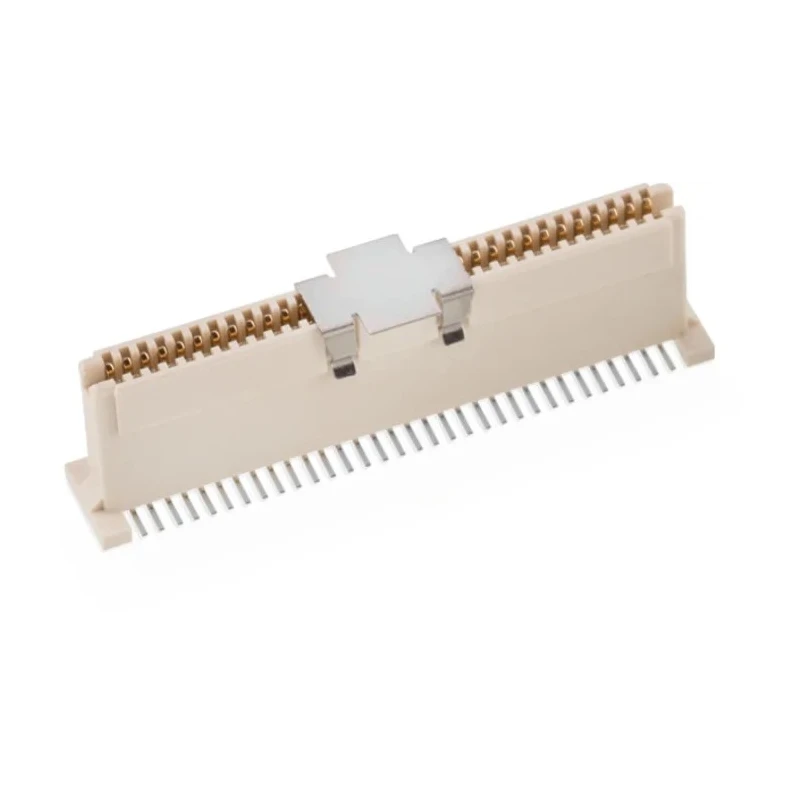

Wurth Elektronik WR-BTB Series Vertical Surface PCB Socket, 64-Contact, 1 Row, 1 mm Pitch, 1A Current, 100V 658101003064
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-BTB |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 64 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Withstanding Voltage | 250 V (AC) |
| Insulator Material | LCP |
Key Features
- Constructed with Liquid Crystal Polymer housing for high durability and insulation.
- Phosphor Bronze contact material with gold plating ensures reliable conductivity.
- Operates within a temperature range of -55°C to 85°C for wide environmental tolerance.
- Rated for 1A current and 100V voltage withstanding up to 250 V (AC).
- Features a vertical orientation suitable for surface mounting technology (SMT).
- Designed for solder termination providing secure electrical connections.
- Provides compatibility with board-to-board connector systems.
- Manufactured in China with quality compliance but no specific certifications indicated.
Product Description
Wurth Elektronik 658101003064 is a high-quality WR-BTB Series Vertical Surface PCB Socket featuring 64 contacts arranged in a single row with 1 mm pitch. This female receptacle connector is engineered for efficient board-to-board electrical connections in electronic assemblies.
The housing is molded from Liquid Crystal Polymer (LCP), delivering excellent mechanical strength and thermal stability. Contacts are made of phosphor bronze and plated with gold to guarantee low contact resistance and corrosion resistance during use.
It supports an operating current of 1 ampere and operating voltage up to 100 volts, withstanding voltages up to 250 volts AC, suitable for various low-power electronic applications. The product withstands temperatures from -55°C to +85°C, allowing stable functioning in diverse industrial and commercial environments.
This connector is designed for vertical orientation and surface mount technology solder termination, facilitating easy PCB assembly and reliable mechanical fixing.
Typical applications include electronics manufacturing, industrial PCB interfacing, telecommunications equipment, computing hardware, and other precision electronic devices requiring secure board-to-board connections.
Constructed with durable Liquid Crystal Polymer housing. Phosphor bronze contacts with gold plating ensure optimal conductivity. Single row 64-contact configuration with 1 mm pitch for compact PCB layouts. Operating temperature range from -55°C to +85°C expands usage environments.
Current rating of 1A and withstands voltage up to 250 V (AC). Vertical surface mount design for seamless PCB integration. Suitable for board-to-board connector systems in industrial and commercial electronics. Manufactured in China with adherence to standard quality expectations.
This Wurth Elektronik WR-BTB series socket is an ideal choice for engineers and manufacturers seeking a reliable, durable, and high-performance vertical PCB socket connector. Explore extensive electronic components and connectors at EnvMart to find compatible products and accessories tailored to your industrial and laboratory needs.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1 ampere.
It can withstand voltages up to 250 volts AC, with a rated operating voltage of 100 volts.
The operating temperature range is from -55°C to +85°C.
The housing is made from Liquid Crystal Polymer, while the contacts are made of phosphor bronze with gold plating.
It features 64 contacts arranged in a single row with a 1 mm pitch.
This connector uses solder termination for secure electrical connections.
It is designed for vertical orientation, suitable for surface mounting technology.
It is compatible with board-to-board connector systems.
The pitch of the contacts is 1 mm.
Typical applications include electronics manufacturing, industrial PCB interfacing, telecommunications equipment, and computing hardware.
It is manufactured in China.
The contacts in this model are female.
