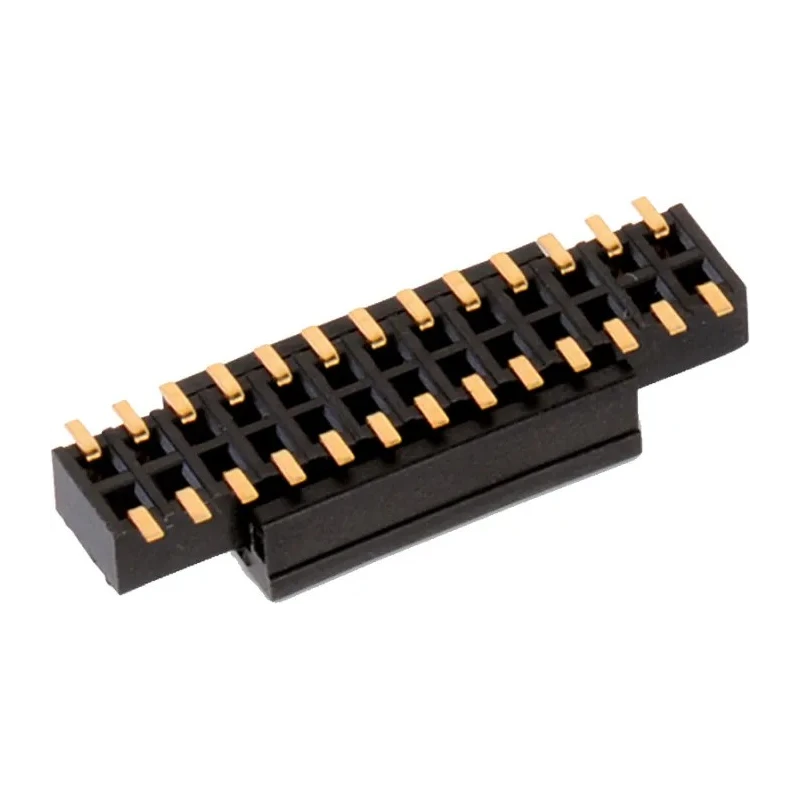

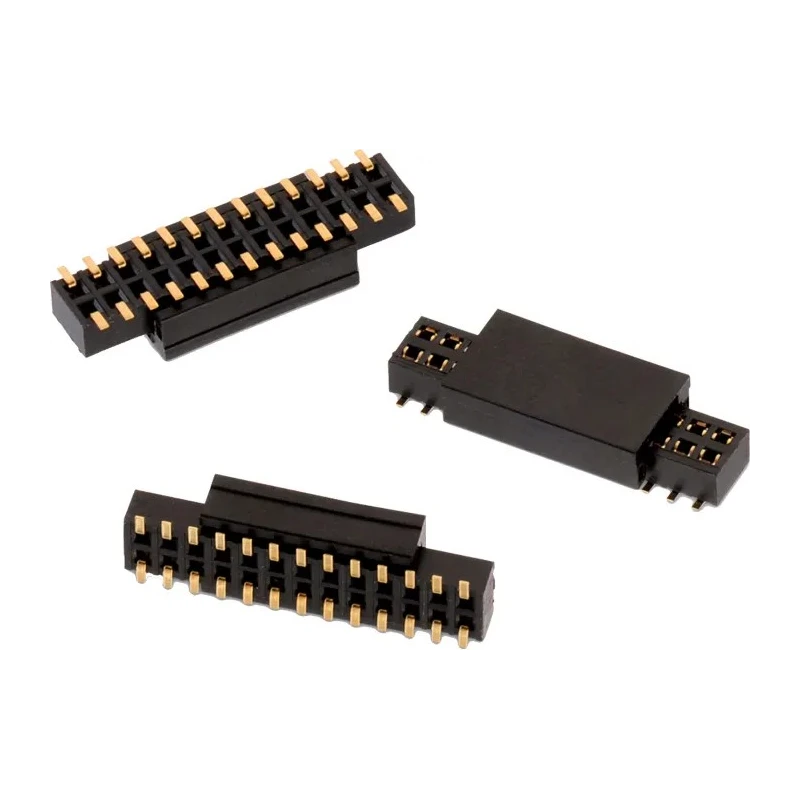

Wurth Elektronik WR-PHD Series Bottom Entry Surface PCB Socket 26-Contact 2 Row 1.27 mm Pitch Solder 623326235321

Wurth Elektronik 623326235321 Bottom Entry Surface PCB Socket is engineered for efficient board-to-board connections in electronic applications. This surface-mount socket features 26 contacts arranged across 2 rows, with a precise 1.27 mm pitch ensuring compact and reliable interfacing.

The housing is crafted from high-quality polyamide (PA9T) to provide excellent insulation and durability in demanding environments. The contacts are made of copper alloy and plated with gold to ensure superior electrical conductivity and corrosion resistance.

Rated for a maximum current of 1A and voltage of 100V, this socket operates within a broad temperature range of -40°C to 105°C, making it suitable for diverse industrial and commercial electronics applications. Its bottom entry orientation facilitates flexible PCB stack configurations.

The socket withstands voltages up to 500 V (AC), providing significant safety margins during operation. The 1.27 mm row pitch and female contact gender design are tailored for precise mating with compatible connectors in board-to-board systems.

Constructed with polyamide housing for durable insulation. Features copper alloy contacts plated with gold for optimal conductivity. Designed for a maximum current of 1A and voltage rating of 100V. Mount type is surface-mount technology (SMT) with bottom entry orientation.

Operates reliably in a temperature range from -40°C to 105°C. Offers a withstanding voltage of 500 V (AC) for safety and stability. Compatible with board-to-board connector systems requiring 1.27 mm row pitch. Includes 26 female contact points arranged in 2 rows.

This PCB socket is widely applied in electronics manufacturing, industrial automation, computing, and control systems where stable and compact PCB connections are essential. Explore more Wurth Elektronik PCB Sockets and related components at EnvMart for diverse electronics and electrical needs.
