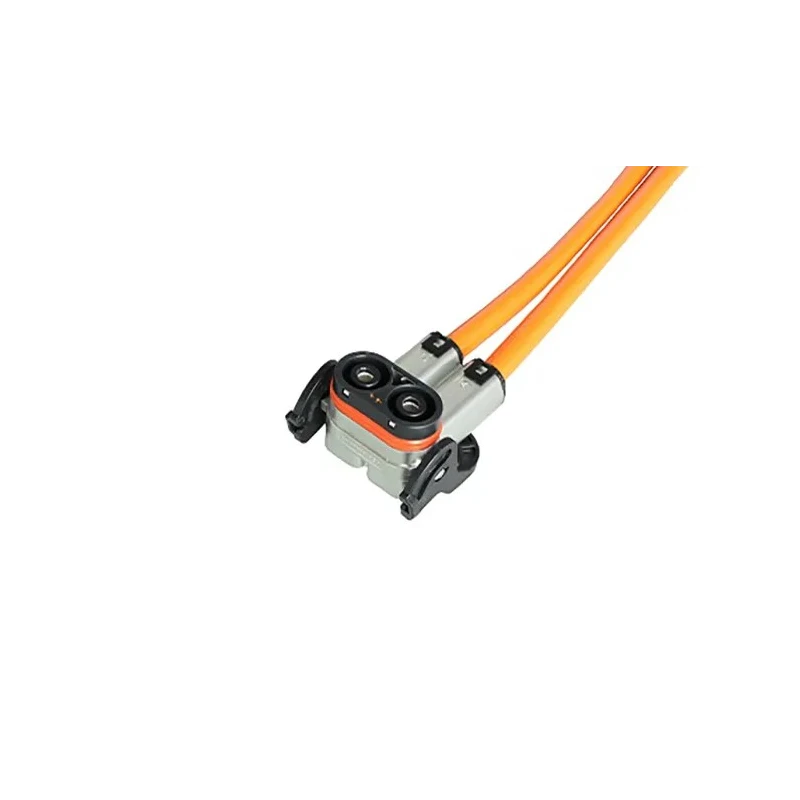

Amphenol Industrial EV Connector Type EV Male 120A 1000V Crimp Termination Right Angle HVSLS600

Amphenol Industrial HVSLS600 is a Type EV male connector designed specifically for electric vehicle (xEV) applications that require secure high-current electrical connections. Rated for 120A current and 1000V operating voltage, this connector supports robust power transmission in EV battery, inverter, and power distribution systems.

The connector uses a crimp termination type compatible with 16mm² wire sizes, providing a reliable mechanical and electrical connection. Its copper alloy contacts ensure excellent conductivity while the durable zinc alloy housing offers robust protection against mechanical wear and environmental exposure. The right angle orientation with dimensions 79.9mm height, 65mm width, and 55.2mm depth facilitates compact and ergonomic system assembly.

Designed to operate efficiently between -40°C and 125°C, this connector suits a wide range of climates and operating conditions. It complies with EN 60664-1 to meet strict electrical insulation and safety standards. Protection ratings IP69K and IP67 make it highly resistant to dust, water jets, and immersion, ensuring reliability in harsh operational environments.

The HVSLS600 features a key type A configuration with a 6mm pin diameter, offering multiple coding positions for secure mating and prevention of mismatches. It integrates an internal HVIL (High Voltage Interlock Loop), enhancing operational safety when interfaced with other xEV equipment.

This product is a renewable energy solution promoting sustainable transportation technologies. Suitable for use with high power connector systems in electric vehicles, it is ideal for manufacturers and integrators focusing on advanced EV components.

Designed for electric vehicle high power connections at 120A current rating. Durable materials including copper alloy contacts and zinc alloy housing. Wide temperature range from -40°C to 125°C for various industrial applications.

High ingress protection with IP69K and IP67 ratings against dust and water. Right angle connector orientation for compact system integration. Complies with EN 60664-1 safety standards. Supports crimp termination on 16mm² wire for secure electrical contacts.

Key type A and 6mm pin diameter ensure correct mating and high reliability. Explore more in the EV Connector category to find advanced and reliable connectors for automotive electrical systems on EnvMart.
