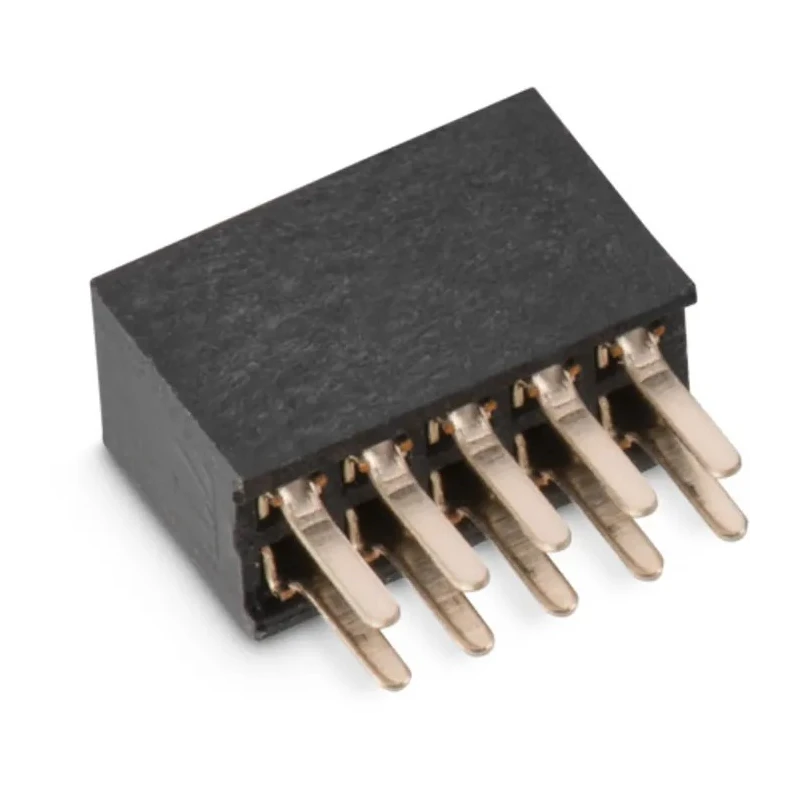

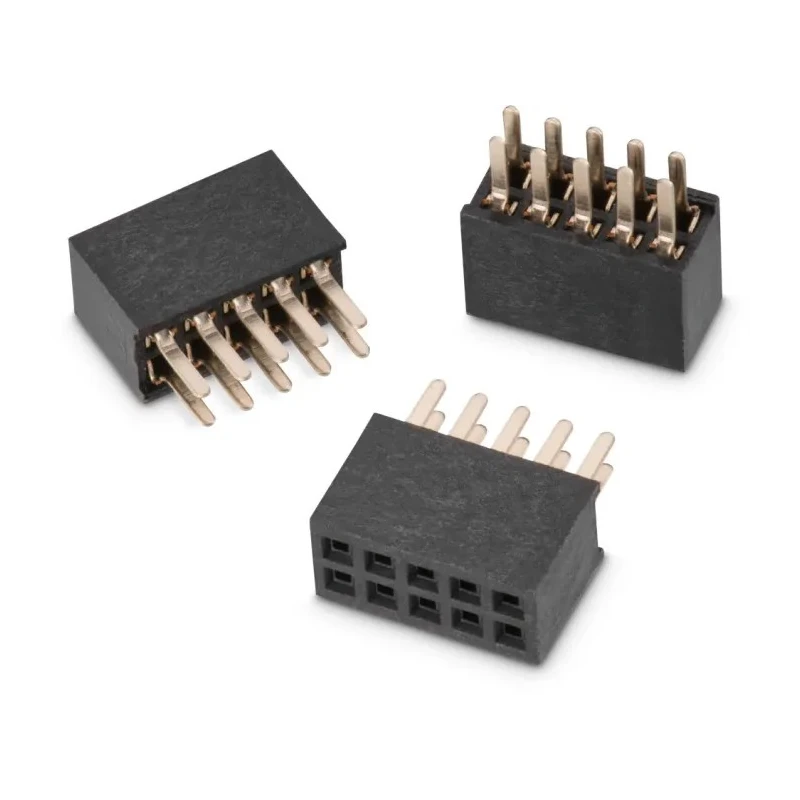

Wurth Elektronik WR-PHD Series Straight Through Hole PCB Socket 14-Contact 2 Row 1.27 mm Pitch Solder 62201421821
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Withstanding Voltage | 500 V (AC) |
| Insulator Material | PA9T |
Key Features
- The PCB socket features a solder termination type ensuring secure mounting.
- Constructed with polyamide housing and copper alloy contacts plated with gold.
- Designed to operate in temperatures ranging from -40°C to 105°C.
- Supports operating voltage of 100V and current rating of 1A suitable for low power applications.
- Withstands voltage up to 500 V AC, assuring insulation integrity.
- Mount type is through hole with straight orientation for easy PCB integration.
- Connector system is board-to-board, compatible with matching connectors.
- Insulator material is PA9T providing high temperature resistance and mechanical stability.
Product Description
Wurth Elektronik 62201421821 WR-PHD Series Straight Through Hole PCB Socket is a high-quality electronic component designed for reliable board-to-board electrical connections. Featuring 14 contacts in 2 rows with a standardized 1.27 mm pitch, this socket enables precise interconnection between printed circuit boards.
Its polyamide housing and copper alloy contacts plated with gold ensure excellent electrical performance and mechanical durability. The socket operates efficiently in extreme temperature conditions ranging from -40°C to +105°C, making it suitable for various industrial and commercial electronics applications.
This PCB socket supports continuous current of 1 Ampere and operates at up to 100V voltage, withstanding voltage spikes up to 500 V AC. The solder termination and through-hole mount type allow robust and secure PCB integration with straight orientation for optimal layout design.
The insulator material PA9T enhances the socket’s thermal resilience and mechanical strength, guaranteeing stable operation in demanding environments. It is an ideal component for industries such as electronics manufacturing, laboratory equipment, and electrical system prototyping.
The PCB socket features solder termination type ensuring secure mounting. Constructed with polyamide housing and copper alloy contacts plated with gold. Operating temperature range from -40°C up to 105°C. Current rating of 1A at 100V operating voltage.
Through-hole mounting with straight orientation for easy PCB assembly. Board-to-board connector system suitable for WR-PHD series connectors. Insulator material PA9T provides mechanical and thermal stability. Withstand voltage of 500 V AC ensuring protection against surges.
Manufactured in China complying with Wurth Elektronik quality standards. Suitable for industrial, laboratory, and manufacturing PCB applications. Explore the broad range of WR-PHD series PCB Sockets and connectors at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 105°C.
This socket supports an operating voltage of 100V.
It features 14 contacts arranged in 2 rows.
The termination type of this PCB socket is solder.
The current rating is 1A, suitable for low power applications.
It is constructed with a polyamide housing and copper alloy contacts plated with gold.
The pitch of the contacts is 1.27 mm.
The mounting type is through hole with a straight orientation.
The insulator material is PA9T, which provides high temperature resistance and mechanical stability.
It can withstand voltages up to 500 V AC, ensuring insulation integrity.
This model is manufactured in China.
It supports a board-to-board connector system, compatible with WR-PHD series connectors.
