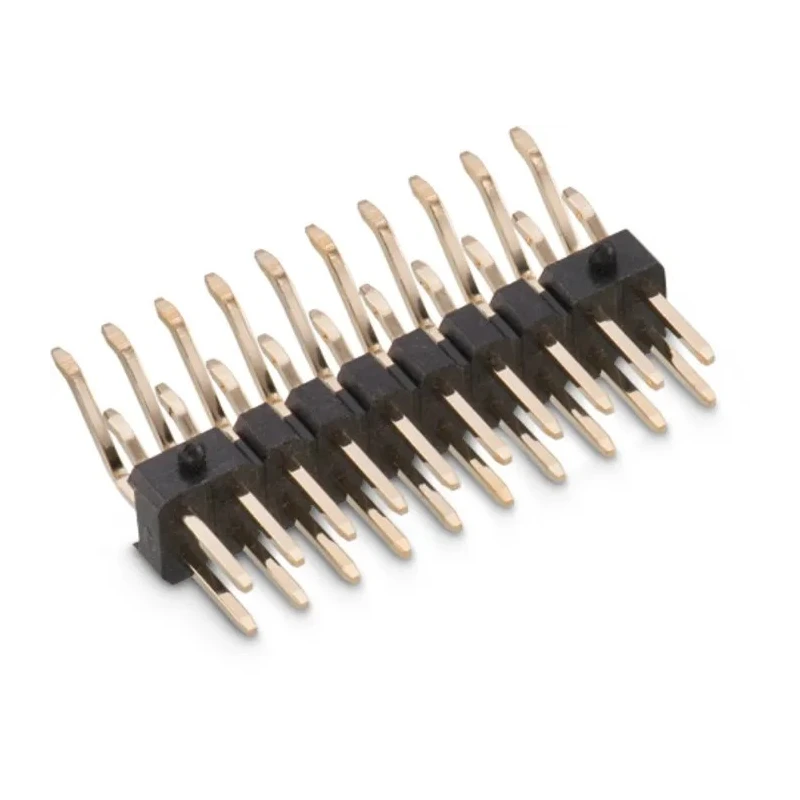

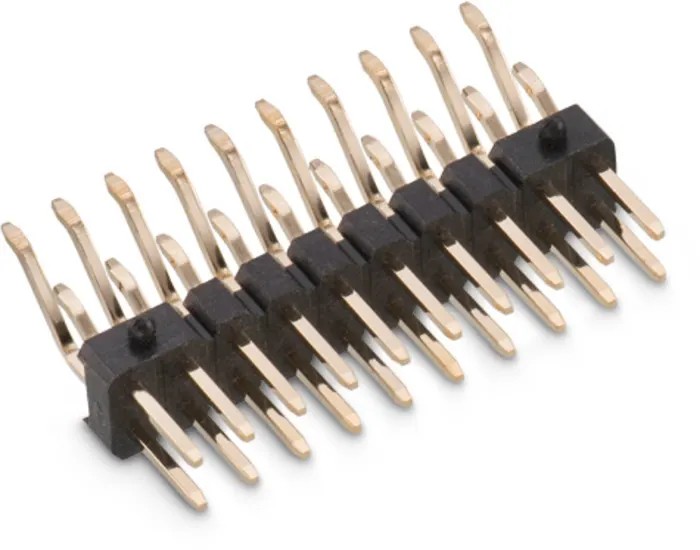

Wurth Elektronik WR-PHD Series Angled Surface PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Unshrouded 621314284521

Wurth Elektronik 621314284521 WR-PHD Series angled surface PCB Header provides a high-quality solution for board-to-board connections in electronic applications. Featuring 14 contacts arranged in 2 rows with a 2 mm pitch, this unshrouded male header connector combines durability with precision engineering.

The housing is made from polyamide 9T (PA9T), an insulating material that delivers robust mechanical and thermal properties. Contacts are fabricated from copper alloy and gold plated to enhance conductivity and resistance to corrosion. The connector is designed for surface mount technology (SMT) with an angled orientation to support various PCB assembly configurations.

Its electrical ratings include a maximum current of 2A and voltage handling of 200V, supplemented with a high withstanding voltage of 500 V AC to ensure safety and reliability under demanding conditions. Operating temperature ranges from -40°C to 105°C, making it suitable for industrial, manufacturing, and electronic applications where temperature stability is crucial.

The termination type is solder, with male contact gender for optimal mating with complementary connectors. Its unshrouded design allows easy access for soldering and inspection during assembly processes.

This WR-PHD Series header complies with important industry standards including REACh, RoHS, and UL Approval E323964, ensuring environmental and safety compliance for global markets.

Typical applications include industrial electronics, machinery control systems, telecommunications equipment, and PCB assembly lines where durable, reliable interconnection interfaces are required.

The connector features a 2.00 mm pitch suitable for SMT applications. It supports a maximum current of 2A and voltage rating of 200V. Constructed with a polyamide 9T housing and PA9T insulator material for durability. Contacts made of copper alloy are plated with gold for reliable conductivity.

Designed with an angled orientation and surface mount type for versatile PCB layouts. Operation temperature ranges from -40°C to 105°C, enabling use in diverse environments. Termination is solder type with male contact gender.

Unshrouded design facilitates easy access during assembly. Complies with REACh, RoHS, and UL approval E323964 standards. Withstands voltage up to 500 V AC, ensuring robust electrical performance. Explore the extensive range of Wurth Elektronik PCB connectors and components at EnvMart for reliable electronic manufacturing solutions.
