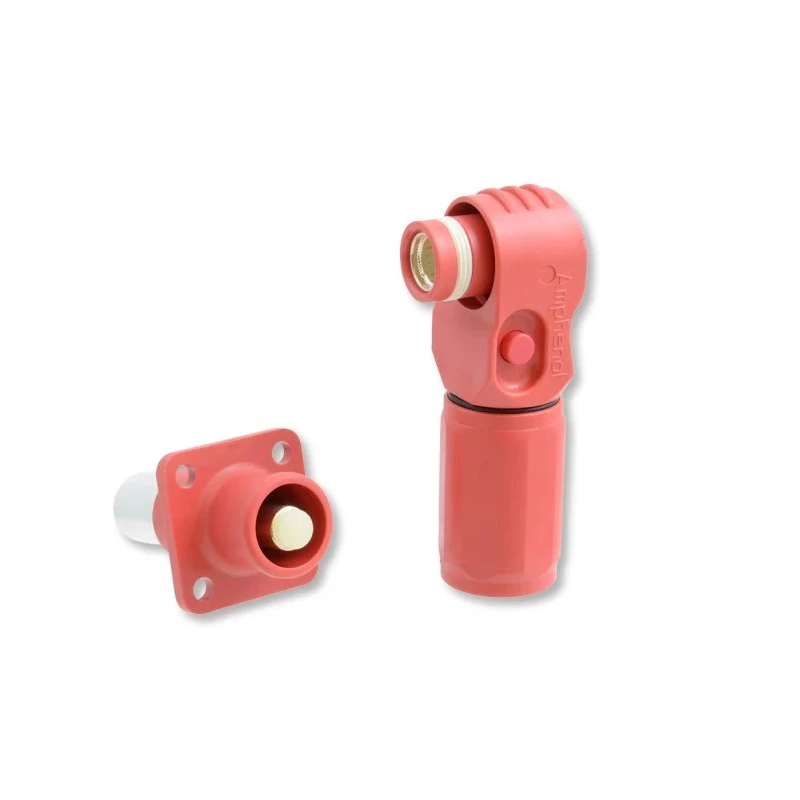

Amphenol Industrial EV Connector SLP Plug Female, 200A, 1000V, Right Angle, IP67, SLPPB50BSR1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Red |
| Orientation | Right Angle |
| Current | 200A |
| Height | 22.6mm |
| Model | SLPPB50BSR1 |
| Depth | 55.1mm |
| IP Rating | IP67 |
| Connector Type | Plug |
| Width | 18mm |
| Mount Type | Panel |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SLP |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 8mm |
| Number of Rows | 1 |
| Wire size | 50mm² |
| Operating Voltage | 1000V |
| Standards/Approvals | RoHS Compliant, UL, TUV |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- The connector features a panel mount type with a right angle orientation facilitating compact installation.
- Constructed with copper alloy contacts and thermoplastic housing ensuring durability under harsh conditions.
- Rated for operating temperatures ranging from -40°C to a maximum of 105°C.
- Provides an IP67 ingress protection rating for water and dust resistance.
- Compatible with 50mm² wire size and includes an 8mm pin diameter ensuring secure electrical connection.
- Complies with RoHS, UL, and TUV standards assuring product reliability and safety.
- The connector is a sealed plug design with 180° keyway and includes back shells for enhanced protection.
- Available in red color, suitable for renewable energy and electric vehicle applications.
Product Description
Amphenol Industrial SLPPB50BSR1 EV Connector Plug Female is engineered for robust electrical connections in electric vehicle systems and industrial power applications. Rated at 200A current capacity and operable up to 1000V, this connector ensures dependable performance under demanding conditions.
The plug features a right angle configuration with a panel mount type, optimizing installation flexibility in compact spaces. The copper alloy contact material provides excellent conductivity and resistance to corrosion, while the thermoplastic housing offers mechanical strength and environmental protection.
Designed to withstand extreme temperatures from -40°C to 105°C, this connector supports reliable operation in harsh environments. Its IP67 rating certifies protection against dust ingress and immersion in water, ensuring longevity and safety.
Included are key features like a sealed plug with 180° keyway, back shells for additional cable protection, and compatibility with 50mm² wire sizes and 8mm pin diameter. The product complies with internationally recognized certifications including RoHS, UL, and TUV, highlighting its quality standards.
This connector is ideal for integration in electric vehicles, renewable energy systems, industrial power distribution, and other commercial electrical uses requiring secure and efficient power connections.
The connector features a panel mount type with a right angle orientation facilitating compact installation. Constructed with copper alloy contacts and thermoplastic housing ensuring durability under harsh conditions. Rated for operating temperatures ranging from -40°C to a maximum of 105°C.
Provides an IP67 ingress protection rating for water and dust resistance. Compatible with 50mm² wire size and includes an 8mm pin diameter ensuring secure electrical connection. Complies with RoHS, UL, and TUV standards assuring product reliability and safety.
The connector is a sealed plug design with 180° keyway and includes back shells for enhanced protection. Available in red color, suitable for renewable energy and electric vehicle applications. Explore the Amphenol Industrial range for reliable EV Connectors and other power connector solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a current capacity of 200A and an operating voltage of up to 1000V.
It has an IP67 ingress protection rating, which certifies it against dust ingress and immersion in water.
The connector has a height of 22.6mm, a width of 18mm, and a depth of 55.1mm.
It is compatible with a wire size of 50mm².
The connector features copper alloy contacts and a thermoplastic housing.
It operates within a temperature range of -40°C to a maximum of 105°C.
This model features a panel mount type with a right angle orientation, facilitating compact installation.
It complies with RoHS, UL, and TUV standards, ensuring product reliability and safety.
The connector employs a crimp termination type.
The pin diameter is 8mm, ensuring a secure electrical connection.
It is suitable for use in electric vehicles, renewable energy systems, and industrial power distribution.
The connector has a female contact gender.
