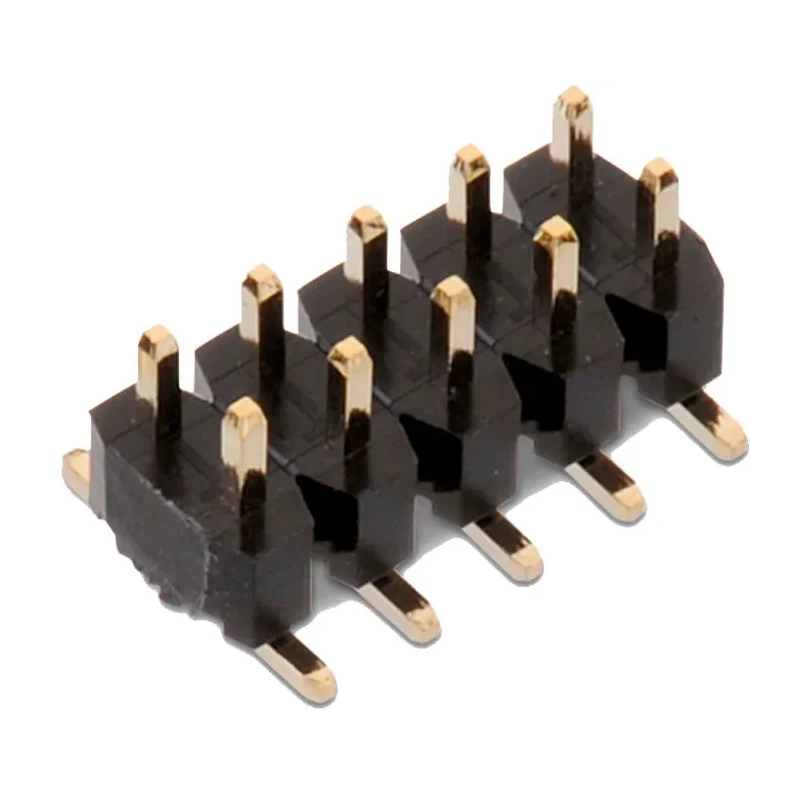

Wurth Elektronik WR-PHD Series Straight Surface PCB Header, 24 Contacts, 2 mm Pitch, 2 Row, Unshrouded 621024245821
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 200V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Surface |
| Housing Material | Polyamide 9T |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | RoHS, UL94 V-0 |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Withstanding Voltage | 500 V (AC) |
| Insulator Material | PA9T |
Key Features
- Features polyamide 9T housing material ensuring durability.
- Supports 2A current rating suitable for low power applications.
- Gold-plated copper alloy contacts for reliable electrical connection.
- Operating temperature range from -40°C to 105°C.
- Mount type is surface mount for SMT PCB integration.
- Connector system is board-to-board for electronic component interlinking.
- Unshrouded design allows easy solder termination.
- Meets RoHS and UL94 V-0 compliant standards.
Product Description
Wurth Elektronik 621024245821 PCB Header from the WR-PHD Series is a straight, surface mount dual-row header connector designed for board-to-board electronic connections. With 24 male contacts spaced at 2 mm pitch and enclosed within a high temperature-resistant polyamide 9T housing, this unshrouded component is tailored for compact, reliable SMT assembly.
The header features gold-plated copper alloy contacts ensuring minimal signal loss and corrosion resistance. It supports a current rating of 2A and withstands operating temperatures ranging from -40°C up to +105°C, making it ideal for demanding industrial, electronics manufacturing, and telecommunications applications.
This surface mount connector complies with RoHS and UL94 V-0 standards affirming environmental and safety certifications. The unshrouded straight orientation simplifies soldering and board integration processes while maintaining robust mechanical and electrical performance.
The component is widely used in electronic assemblies requiring secure board-to-board connectivity such as industrial machinery, communication devices, and embedded system manufacturing. Rated for 200 V operating voltage and with withstanding voltage up to 500 V AC, it ensures enhanced insulation and safety margins.
Manufactured in China, the WR-PHD series header supports modern SMT processes and provides a reliable solution for electronic component interconnection needs. This product sets the benchmark for durability and performance within PCB header components.
Features polyamide 9T housing material ensuring durability. Supports 2A current rating suitable for low power applications. Gold-plated copper alloy contacts for reliable electrical connection. Operating temperature range from -40°C to 105°C.
Mount type is surface mount for SMT PCB integration. Connector system is board-to-board for electronic component interlinking. Unshrouded design allows easy solder termination. Meets RoHS and UL94 V-0 compliant standards.
Withstanding voltage of 500 V AC for electrical safety. Explore more electronic components and PCB Headers from Wurth Elektronik on EnvMart to enhance your manufacturing and design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 2A, making it suitable for low power applications.
The operating temperature range for this model is from -40°C to 105°C.
It utilizes surface mount technology (SMT) for PCB integration.
This connector has 24 male contacts arranged in 2 rows with a 2 mm pitch.
The housing material is polyamide 9T, and the contacts are made of gold-plated copper alloy.
It meets RoHS and UL94 V-0 compliance standards, ensuring environmental safety and material quality.
The withstanding voltage for this model is 500 V AC, which enhances electrical safety.
This header features a straight orientation, which simplifies the soldering process.
It uses a board-to-board connector system for electronic component interlinking.
The contacts are gold-plated, providing reliable electrical connection and corrosion resistance.
This PCB header is manufactured in China.
The termination type for this model is solder, allowing for easy integration into PCB assemblies.
