Wurth Elektronik WR-PHD Series Straight Surface PCB Socket 10-Contact 2 Row 2 mm Pitch Solder 62101021821

Free Delivery in India | Lowest Global Shipping Charges

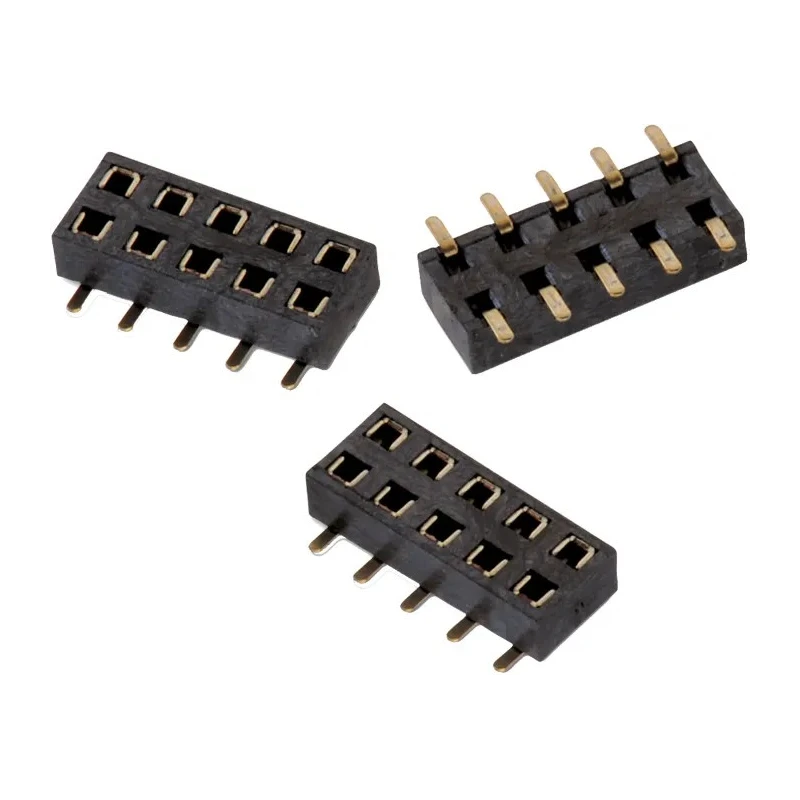

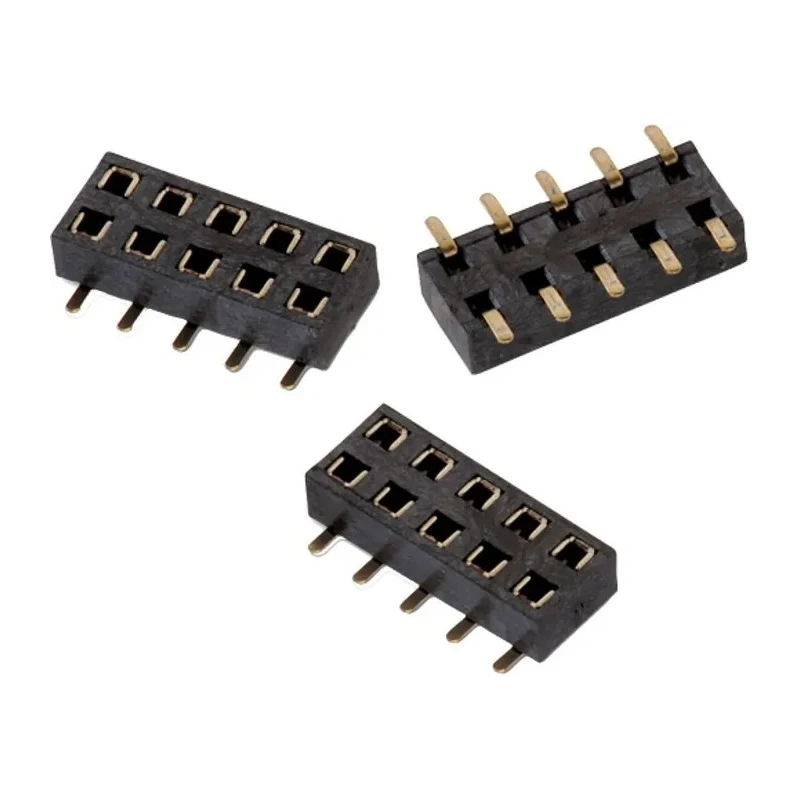

Wurth Elektronik WR-PHD Series Straight Surface PCB Socket 10-Contact 2 Row 2 mm Pitch Solder 62101021821

Name: Wurth Elektronik WR-PHD Series Straight Surface PCB Socket 10-Contact 2 Row 2 mm Pitch Solder 62101021821
Brand: Wurth Elektronik
SKU: 190415
Price: 2.35 USD
Availability: InStock



Category PCB Socket Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	200V
Brand	Wurth Elektronik
Orientation	Straight
Current	2A
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	WR-PHD
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2mm
Standards/Approvals	UL Approval E323964, RoHS Approval, REACh Approval Conform or declared, DIN ISO 2768, DIN EN 61760-2
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Female
Connector System	Board-to-Board

Key Features

This PCB socket features 10 contacts arranged in 2 rows with a 2 mm pitch.
It supports a current rating of 2A and voltage of 200V.
Construction includes a polyamide housing with copper alloy female contacts plated in gold.
The socket is designed for surface mount technology with straight orientation.
Operating temperature ranges from -40°C to 105°C ensuring durability in various environments.
Complies with RoHS, REACh, UL E323964, DIN ISO 2768, and DIN EN 61760-2 standards.
Gold plating enhances conductivity and prevents corrosion.
The product is manufactured in China and is UL approved.

Product Description

Wurth Elektronik 62101021821 is a WR-PHD Series straight surface mount PCB socket featuring 10 contacts in two rows with a 2 mm pitch, suitable for board-to-board connector systems. Designed for a current rating of 2A and a voltage rating of 200V, it ensures robust electrical performance in compact PCB assemblies.

Its polyamide housing provides mechanical stability while maintaining low profile design ideal for SMT applications. The female contacts are made of copper alloy and plated with gold to guarantee excellent conductivity and corrosion resistance over extended use. Operating temperature spans from -40°C to +105°C, allowing it to function in harsh industrial environments.

The socket supports up to 500 mating cycles and is certified with UL Approval E323964 alongside compliance with RoHS and REACh standards. This makes it environmentally sound as well as reliable.

Typical applications include electronics manufacturing, industrial automation, instrumentation, telecommunications, and other electronic connectivity uses requiring durable and precise PCB connectors.

This PCB socket has 10 female contacts arranged in 2 rows with 2 mm pitch spacing. Current rating is 2A and voltage rating is 200V. Housing material is polyamide for enhanced strength and heat resistance. Contact material is copper alloy with gold plating to ensure longevity and conductivity.

Surface mount orientation is straight to suit SMT processes. Operating temperature range is from -40°C to +105°C for versatile environmental tolerance. Meets multiple industrial standards including UL Approval E323964, RoHS, REACh, DIN ISO 2768, and DIN EN 61760-2.

Manufactured in China under strict quality controls.

This product is ideal for electronics manufacturers and OEMs needing robust, compliant, and high-performance surface mount PCB Sockets. Explore more Wurth Elektronik components and PCB connectors in EnvMart for your next project.
