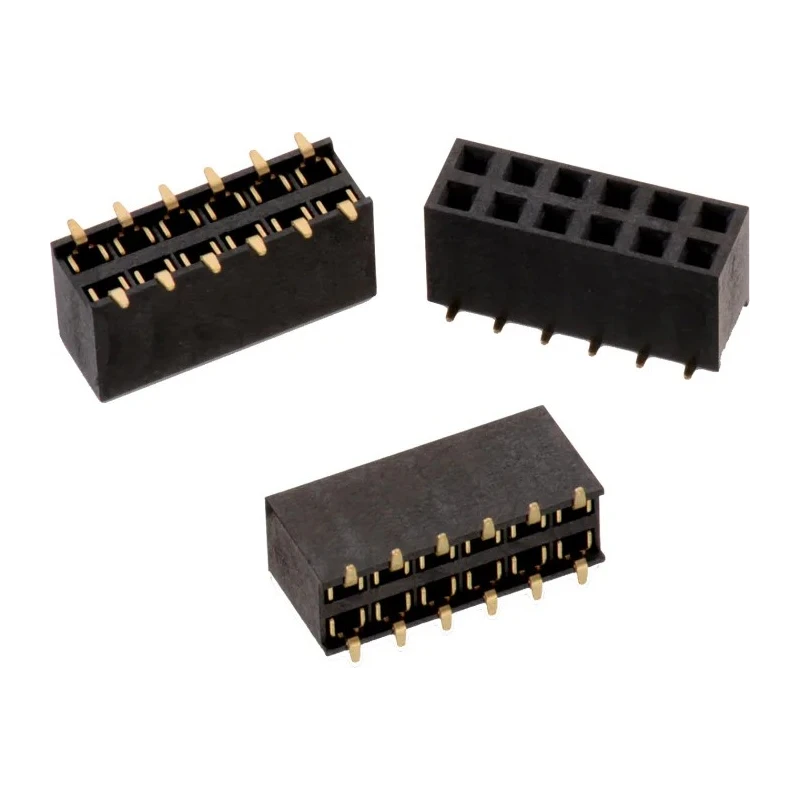

Wurth Elektronik WR-PHD Series Straight Surface PCB Socket 18-Contact 2 Row 2.54 mm Pitch 61001821821
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Connector System | Board-to-Board |
Key Features
- Features 18 gold-plated copper alloy contacts ensuring excellent conductivity.
- Designed with a 2.54 mm pitch and dual row configuration for compact PCB layouts.
- Supports a voltage of 500V and a current rating of 3A for robust electrical performance.
- Constructed with PA9T insulator material with UL94 V-0 flammability rating.
- Durable for up to 25 mating cycles, suitable for repeated assembly.
- Operating temperature range from -40°C to 125°C ensures reliability in various environments.
- Surface mount type with straight orientation simplifies PCB assembly.
Product Description
Wurth Elektronik 61001821821 WR-PHD Series Straight Surface PCB Socket offers a reliable solution for electronic board-to-board connections. This dual row surface mount socket features 18 gold-plated copper alloy contacts with a precise 2.54 mm pitch, enabling compact and efficient PCB designs.
Designed for excellent electrical performance, it supports 3A current and 500V voltage, providing robustness for various electronic applications. The socket uses a PA9T insulator rated UL94 V-0 for flammability, ensuring safety and durability. It is also durable for up to 25 mating cycles, supporting maintenance and repeated use without loss of contact integrity.
The operating temperature range from -40°C to 125°C allows this component to function reliably in diverse industrial, commercial, and laboratory environments. Its straight orientation and surface mount type facilitate easy integration into PCBs.
18 gold-plated copper alloy contacts for superior connectivity. 2.54 mm dual row pitch suitable for compact PCB design. Supports 500V and 3A for durable electrical performance. PA9T insulator material with UL94 V-0 flammability rating.
Up to 25 mating cycles for long-lasting use. Operating temperature from -40°C to 125°C for broad application range. Straight surface mount design for easy PCB assembly. Manufactured in Taiwan ensuring quality standards compliance.
Explore more products in the PCB Socket category at EnvMart to find compatible connectors, headers, and accessories crafted for precision electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of 500V, making it suitable for various electronic applications.
This model has a current rating of 3A, ensuring robust electrical performance.
The socket features 18 contacts, providing multiple connection points for board-to-board applications.
The contacts are designed with a pitch size of 2.54 mm, suitable for compact PCB layouts.
It operates effectively within a temperature range of -40°C to 125°C, allowing for use in diverse environments.
The contacts are made from gold-plated copper alloy, ensuring excellent conductivity.
This unit is durable for up to 25 mating cycles, supporting repeated assembly without loss of contact integrity.
It is a surface mount type, which simplifies the PCB assembly process.
The insulator material is PA9T, which has a UL94 V-0 flammability rating for safety and durability.
The socket features a straight orientation, making it easier to integrate into PCB designs.
It is manufactured in Taiwan, ensuring compliance with quality standards.
This socket utilizes a board-to-board connector system, suitable for various electronic applications.
