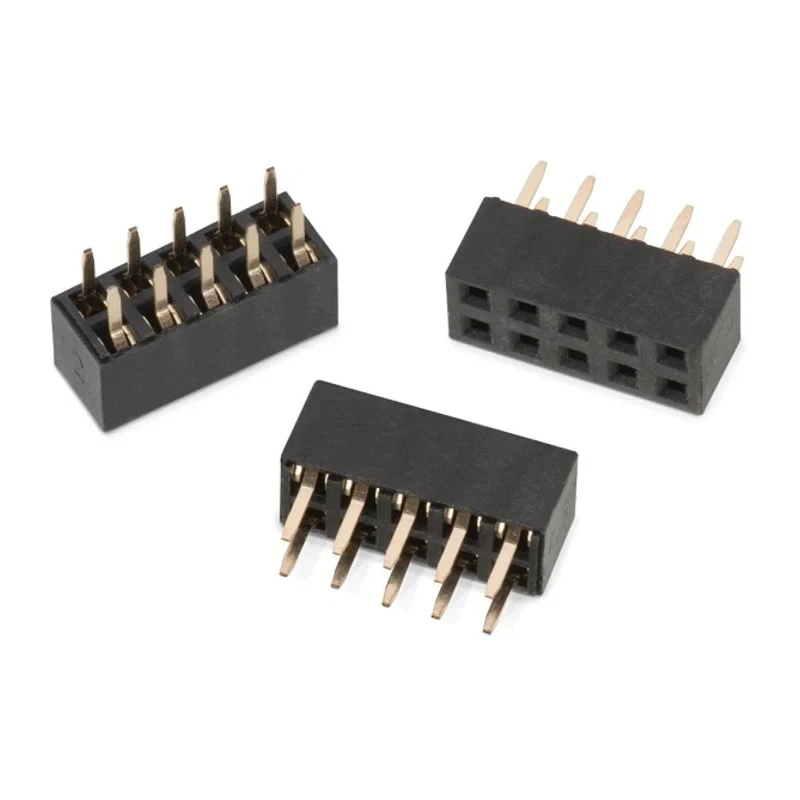

Wurth Elektronik WR-PHD Series Straight Through Hole PCB Socket, 20-Contact, 2 Row, 2 mm Pitch, 200V, 2A 62002021821
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 200V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polyamide 9T |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 500 mating cycles |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | UL Approval E323964, DIN EN 61760-2, REACh Approval Conform or declared, DIN ISO 2768, RoHS Approval |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
Key Features
- The socket has a polyamide 9T housing ensuring durability and electrical insulation.
- Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance.
- Designed for through hole mount with straight orientation suitable for standard PCB assemblies.
- The component supports an operating voltage of 200V and temperature range from -40°C to 105°C.
- Durability rated for 500 mating cycles ensures long-lasting performance.
- UL Approved and RoHS compliant meeting stringent international standards.
- Compact 2 mm pitch and dual row configuration optimize space on printed circuit boards.
- Suitable for industrial, electronic manufacturing, and prototyping applications.
Product Description
Wurth Elektronik 62002021821 WR-PHD Series Straight Through Hole PCB Socket is a high-quality electronic component designed for robust and reliable PCB connections. Featuring 20 female contacts arranged in 2 rows with a 2 mm pitch, this socket facilitates secure solder termination with a current rating of 2 amperes and an operating voltage capability of 200 volts.
The housing is made from durable polyamide 9T material, which offers excellent insulation properties and withstands a wide operating temperature range from -40°C to 105°C. The copper alloy contacts are gold plated to provide low electrical resistance, enhanced corrosion protection, and long service life.
This PCB socket uses a through hole mount type with a straight orientation, making it ideal for standard PCB layout designs. Its compact dual-row form factor and 2 mm pitch make it suitable for space-constrained electronic assemblies in industrial automation, telecommunications, and consumer electronics manufacturing.
The WR-PHD series socket is UL Approved (E323964) and compliant with RoHS, REACh, DIN EN 61760-2, and DIN ISO 2768 standards, ensuring adherence to strict safety and environmental requirements. Its durability of 500 mating cycles guarantees reliable mechanical and electrical connections over extended usage.
The socket housing is polyamide 9T rated UL94 V-0 for flammability. Gold-plated copper alloy female contacts enhance electrical performance. Through hole mount with straight orientation suitable for PCB soldering. Operating temperature range from -40°C to +105°C for diverse environments.
20 contacts arranged in 2 rows with a 2 mm pitch for compact design. Current rated at 2A and voltage rated at 200V for reliable performance. UL approved and RoHS compliant for industrial and commercial applications. Durability of 500 mating cycles supports long-term connection integrity.
Ensure seamless PCB assembly and durable electric connections with this premium socket component. Explore more high-quality PCB connectors and sockets in the Electronics & Electricals section on EnvMart for reliable and certified components.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this socket is 200V.
This model has a current rating of 2A.
The operating temperature range is from -40°C to +105°C.
It features 20 female contacts arranged in 2 rows.
The housing is made from polyamide 9T, which provides durability and electrical insulation.
This model uses solder termination for secure connections.
The socket is rated for 500 mating cycles, ensuring long-lasting performance.
Yes, it is UL approved and compliant with RoHS, REACh, DIN EN 61760-2, and DIN ISO 2768 standards.
The pitch size is 2 mm, allowing for compact PCB designs.
This socket supports through hole mounting with a straight orientation.
The contacts are made of gold-plated copper alloy, which enhances conductivity and corrosion resistance.
It is suitable for industrial automation, telecommunications, and consumer electronics manufacturing.
