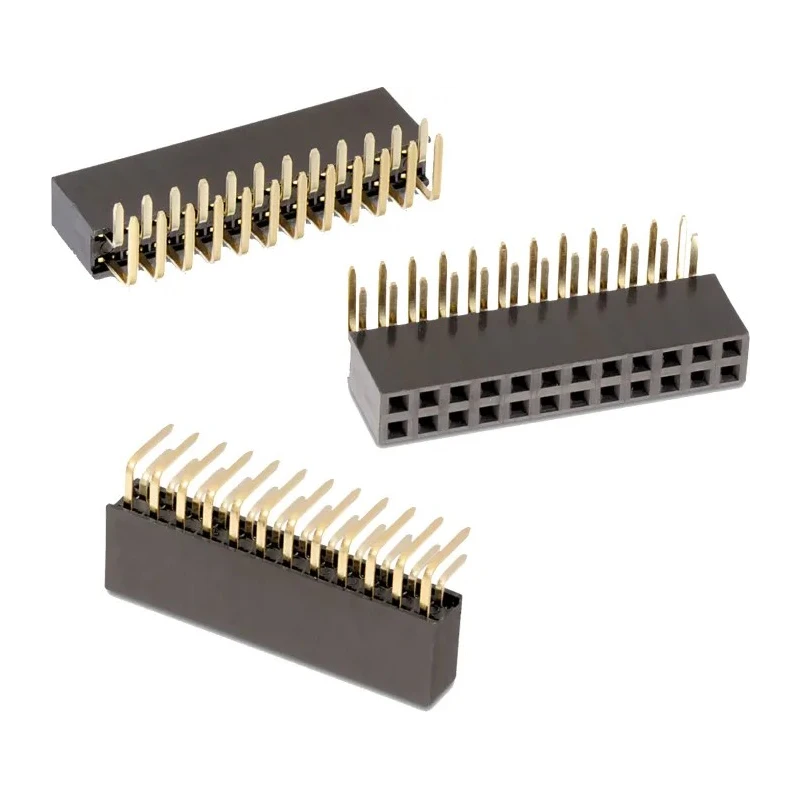

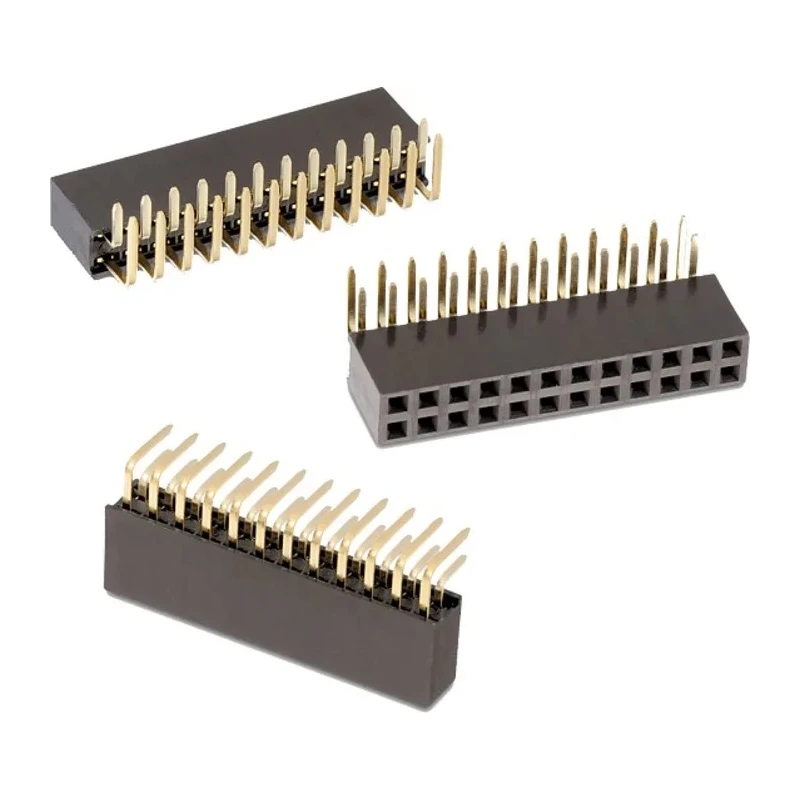

Wurth Elektronik WR-PHD Series Angled PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch 613040243121

Wurth Elektronik 613040243121 WR-PHD Series Angled PCB Socket is designed to offer reliable and durable connections in electronic circuitry, featuring 40 female contacts arranged in two rows with a 2.54 mm pitch. The angled orientation facilitates efficient PCB assembly and flexibility in design integration.

Constructed with a Polybutylene Terephthalate (PBT) housing, known for its excellent mechanical and thermal stability, this socket can operate reliably in temperatures ranging from -40°C to +105°C. The contacts are made from copper alloy with gold plating, offering high conductivity and resistance to corrosion, making it suitable for various electronic applications including industrial, telecommunications, and computing equipment.

This PCB socket supports a current rating of 3A at a voltage of 250V and conforms to rigorous industry standards such as UL Approval E323964, REACh, RoHS, DIN EN 61760-2, and DIN ISO 2768. It has a durability rating of 25 mating cycles, ensuring dependable performance over repeated use.

The product originates from Taiwan, Province Of China, and is ideal for use in industrial, electronic manufacturing, and laboratory environments requiring robust and precise PCB connections.

The socket features an angled layout to ease PCB layout constraints. Manufactured with high-grade PBT housing for durability and insulation. Gold plated copper alloy contacts provide excellent electrical conductivity. Rated for 250V voltage and 3A current to handle diverse electrical loads.

Operational temperature range from -40°C to +105°C for versatile use cases. Complies with multiple international standards ensuring safety and quality. Durable for up to 25 mating cycles for long-lasting reliability. Female contacts designed for standard mating interfaces.
