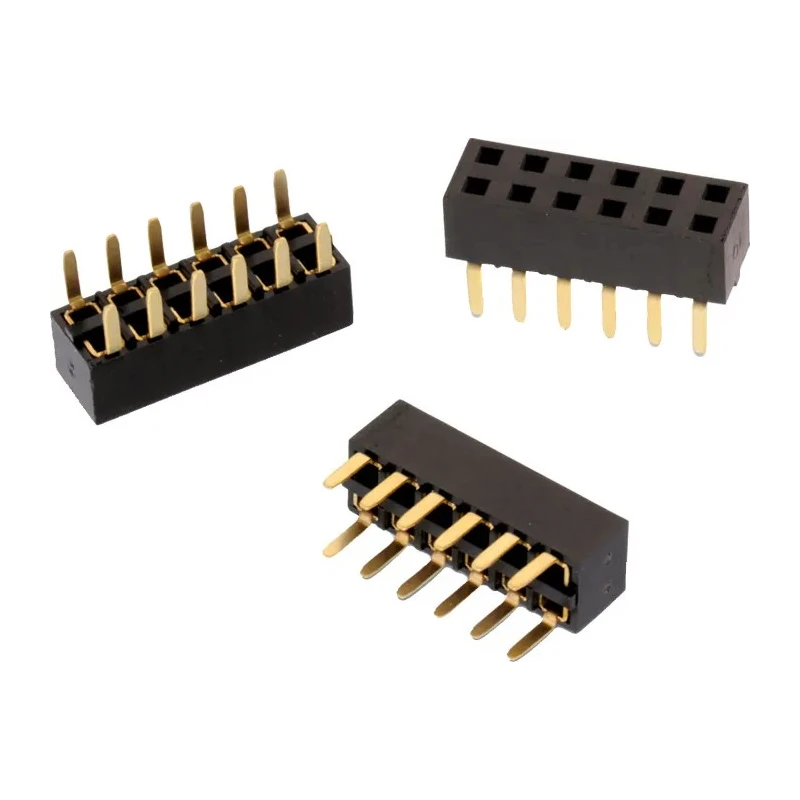

Wurth Elektronik WR-PHD Series Bottom Entry Through Hole 10-Contact 2 Row 2.54 mm Pitch PCB Socket 61301025721
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Bottom Entry |
| Current | 3A |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Socket |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Connector System | Board-to-Board |
Key Features
- Supports a current rating of 3A for reliable performance.
- Constructed with copper alloy contacts plated with gold for corrosion resistance.
- Designed for bottom entry mounting via through hole solder termination.
- Operates within a temperature range from -40°C to 105°C.
- Compliant with RoHS standards ensuring environmental safety.
- Offers durability with 25 mating cycles supported.
- Ideal for electronic, industrial, and PCB assembly applications.
- Manufactured in Taiwan, Province Of China with quality assurance.
Product Description
Wurth Elektronik 61301025721 WR-PHD Series Bottom Entry Through Hole PCB Socket is a high-quality connector designed for board-to-board applications. Featuring 10 contacts arranged in 2 rows with a 2.54 mm pitch, this socket supports a stable electrical connection with a current rating of 3A and a voltage tolerance of 500V.
The socket employs copper alloy contact material plated with gold to ensure excellent conductivity and resistance to corrosion. The through hole solder termination and bottom entry orientation make it suitable for robust PCB mounting and assembly. It is engineered to withstand operating temperatures ranging from -40°C to 105°C, making it reliable in demanding industrial and electronic environments.
This product complies with RoHS environmental standards and carries UL approval (E323964), assuring users of its quality and safety. The connector supports 25 mating cycles, providing longevity in repetitive connection applications.
Manufactured in Taiwan, Province Of China, this PCB socket fits applications in electronics manufacturing, industrial equipment, communication devices, and other systems requiring dependable PCB connectors.
Supports a current rating of 3A for reliable performance. Constructed with copper alloy contacts plated with gold for corrosion resistance. Designed for bottom entry mounting via through hole solder termination. Voltage rating up to 500V to handle various electronic applications.
Operating temperature range from -40°C to 105°C. RoHS compliant and UL approved (E323964). Supports 25 mating cycles for extended durability. Ideal for industrial, electronic, and communication applications. Manufactured in Taiwan, Province Of China.
Explore more quality PCB Sockets and connectors in the Electronics Components category on EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3A, ensuring reliable performance in various applications.
The voltage rating of this socket is up to 500V, suitable for handling various electronic applications.
It operates within a temperature range from -40°C to 105°C, making it reliable in demanding environments.
This socket features 10 contacts arranged in 2 rows with a pitch of 2.54 mm.
The contacts are constructed from copper alloy and are plated with gold for corrosion resistance.
It is designed for bottom entry mounting via through hole solder termination, suitable for robust PCB assembly.
It supports up to 25 mating cycles, providing longevity in repetitive connection applications.
Yes, it complies with RoHS standards, ensuring environmental safety in its use.
This PCB socket is manufactured in Taiwan, Province Of China.
It utilizes a board-to-board connector system, suitable for various electronic applications.
It carries UL approval (E323964), assuring users of its quality and safety standards.
It is ideal for applications in electronics manufacturing, industrial equipment, and communication devices.
