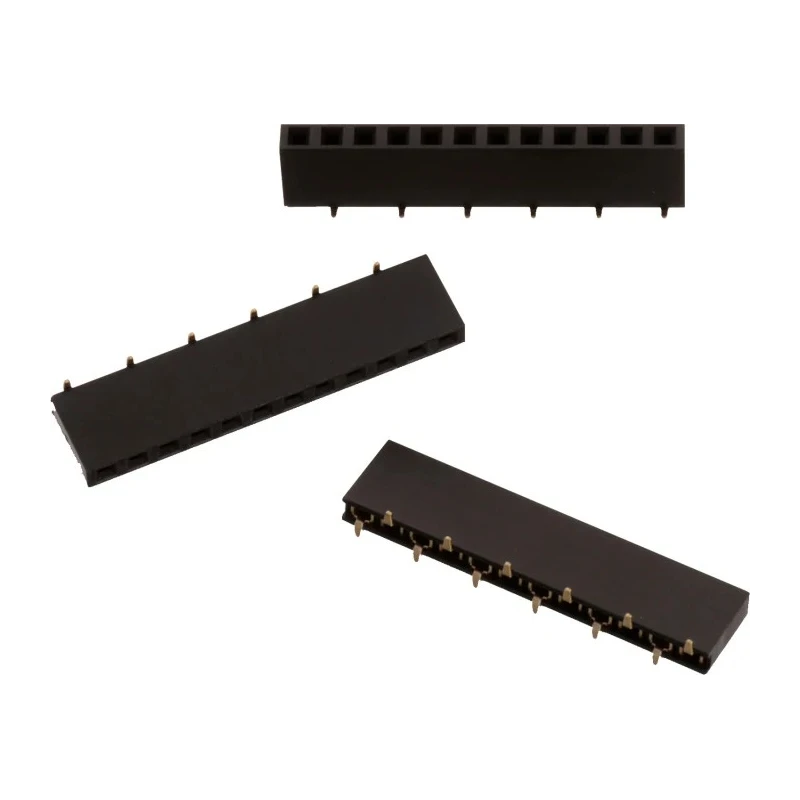

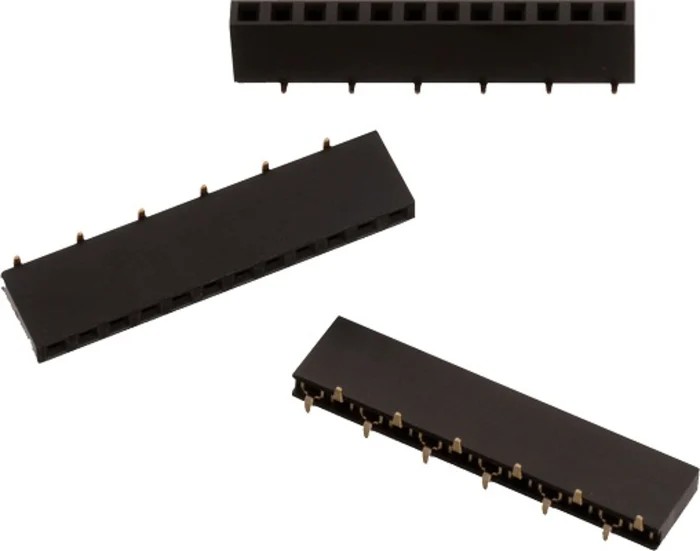

Wurth Elektronik WR-PHD Series Straight Surface PCB Socket 16-Contact 1 Row 2.54 mm Pitch 250V 3A 61001613321
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS, UL |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Female |
Key Features
- Constructed with copper alloy contacts plated with gold for enhanced conductivity.
- Designed with a PA9T insulator material for high durability and UL94 V-0 flame rating.
- Suitable for surface mounting with a straight orientation.
- Operates reliably in temperatures from -40°C to +125°C.
- Durability supports up to 25 mating cycles for long service life.
- RoHS compliant and UL approved with E323964 certification.
- Compact one-row design suitable for PCB socket applications.
- Manufactured in Taiwan, Province Of China ensuring quality standards.
Product Description
Wurth Elektronik 61001613321 is a WR-PHD series straight surface mount PCB socket designed for electronic and industrial applications requiring reliable connectivity on printed circuit boards.
This single-row socket features 16 female copper alloy contacts plated with gold to ensure excellent conductivity and corrosion resistance. It supports a pitch of 2.54 mm between contacts and is rated to handle voltages up to 250V and currents up to 3A, making it suitable for various low to medium power applications.
The insulator is made from PA9T material, which provides mechanical stability and an UL94 V-0 flame retardant rating, enhancing safety and durability. It is designed for surface mounting with a straight orientation, simplifying installation on PCBs.
The socket is engineered for robustness, rated for 25 mating cycles, supporting repeated connections and disconnections without degradation. It is functional in a wide operating temperature range from -40°C to +125°C, allowing it to operate reliably in harsh industrial environments.
Wurth Elektronik's WR-PHD socket complies with RoHS standards, confirming its environmental safety, and it has received UL certification (E323964), endorsing its quality and reliability.
Constructed with copper alloy contacts plated with gold for enhanced conductivity. Designed with a PA9T insulator material for high durability and UL94 V-0 flame rating. Suitable for surface mounting with a straight orientation.
Operates reliably in temperatures from -40°C to +125°C. Durability supports up to 25 mating cycles for long service life. RoHS compliant and UL approved with E323964 certification. Compact one-row design suitable for PCB socket applications.
Manufactured in Taiwan, Province Of China ensuring quality standards.
This Wurth Elektronik PCB Socket is ideal for electronics manufacturers, testing laboratories, industrial equipment makers, and OEMs requiring high-quality PCB connectors with reliable performance. Browse EnvMart's Electronics Components category for more connectors, sockets, and PCB hardware solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCB socket is rated for a maximum voltage of 250V.
It can handle currents up to 3A.
This socket features 16 female contacts.
The pitch between the contacts is 2.54 mm.
It operates reliably in temperatures from -40°C to +125°C.
The contacts are constructed from copper alloy and are plated with gold.
It is designed for surface mounting with a straight orientation.
This model supports up to 25 mating cycles.
It is RoHS compliant and UL approved with E323964 certification.
It is manufactured in Taiwan, Province Of China.
The insulator is made from PA9T material, which provides high durability and a UL94 V-0 flame rating.
It is suitable for various low to medium power applications in electronic and industrial settings.
