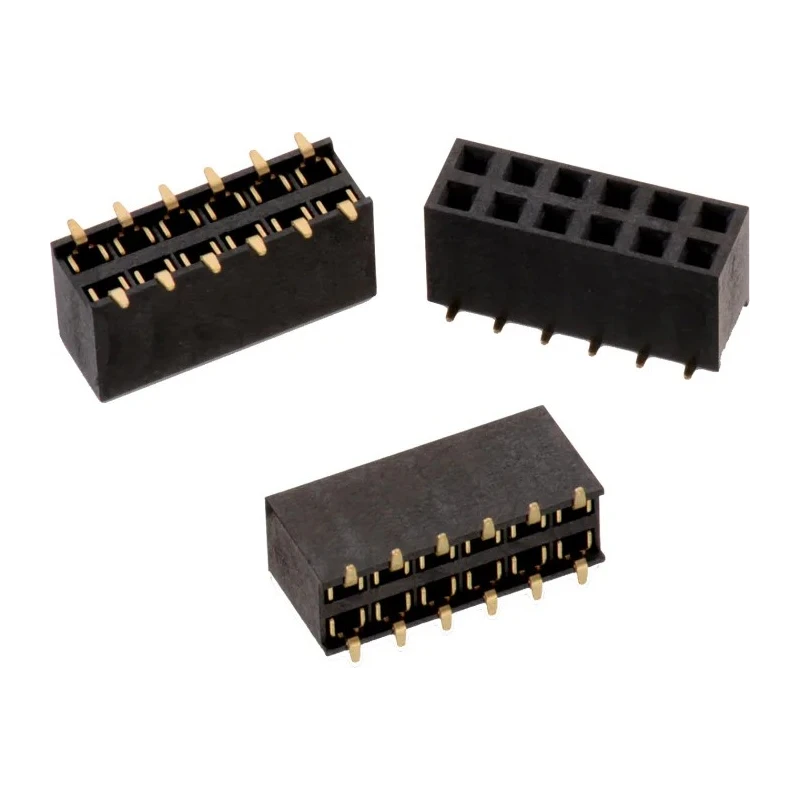

Wurth Elektronik WR-PHD Series Straight Surface PCB Socket 12-Contact 2 Row 2.54 mm Pitch 61001221821
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Connector System | Board-to-Board |
Key Features
- Mount type is surface, suitable for SMT applications.
- Rated for 3 amperes current and 500 volts voltage.
- Contact material of copper alloy with gold plating ensures conductivity and corrosion resistance.
- Operates effectively between -40°C to 125°C.
- Durability supports 25 mating cycles for repeated connections.
- Connector system designed for board-to-board interface.
- Insulator material PA9T with UL94 V-0 flammability rating ensures safety.
- Dual row configuration with 2.54 mm row pitch for compact assembly.
Product Description
Wurth Elektronik 61001221821 WR-PHD series straight surface PCB socket is a precision 12-contact, 2-row connector engineered for secure board-to-board connections in electronic assemblies. Designed with a 2.54 mm pitch and 2.54 mm row pitch, this SMT mount device features a PA9T insulator material rated UL94 V-0 flammability, supporting stringent safety requirements. The copper alloy contacts plated with gold guarantee optimal electrical conductivity and durability.
Rated for a current handling capacity of 3 amperes and operating voltages up to 500 volts, this PCB socket supports industrial, laboratory, manufacturing, and automotive electronics applications. It functions reliably over a broad temperature range from -40°C to 125°C, making it suitable for harsh environments. The socket's durability withstands at least 25 mating cycles, ensuring long-term dependable connections.
The WR-PHD series conforms to RoHS directives and is lead-free, underpinning environmental compliance and reducing hazardous substances in electronics manufacturing. Its straight orientation and surface mount configuration facilitate integration into compact, high-density circuit boards.
This product is made in Taiwan, Province of China, and is ideal for electronics engineers and technicians seeking dependable PCB sockets for board-to-board interfaces. The series offers ease of assembly paired with excellent mechanical and electrical properties.
Surface mount straight dual row PCB socket for 12 contacts with 2.54 mm pitch. Copper alloy contacts with durable gold plating for enhanced electrical performance. Supports 3A current and 500V voltage, complying with industrial standards.
Wide operating temperature range from -40°C to 125°C suitable for diverse environments. UL Approved insulator with PA9T material and UL94 V-0 flame rating. Durability tested up to 25 mating cycles for reliable repeated use.
Explore more in the PCB Socket category at EnvMart for a wide range of high-quality electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current handling capacity of 3 amperes.
It can handle operating voltages up to 500 volts.
The contact pitch is 2.54 mm, which is standard for this type of connector.
It operates effectively between -40°C and 125°C, making it suitable for harsh environments.
This socket is designed to withstand at least 25 mating cycles for repeated connections.
The contacts are made of copper alloy with gold plating, and the insulator is PA9T material.
It features a surface mount configuration, suitable for SMT applications.
It has a dual row configuration with 12 contacts arranged in 2 rows.
Yes, it conforms to RoHS directives and is lead-free, supporting environmental compliance.
The insulator material has a UL94 V-0 flammability rating, ensuring safety in applications.
This product is made in Taiwan, Province of China.
It is suitable for various applications including industrial, laboratory, manufacturing, and automotive electronics.
