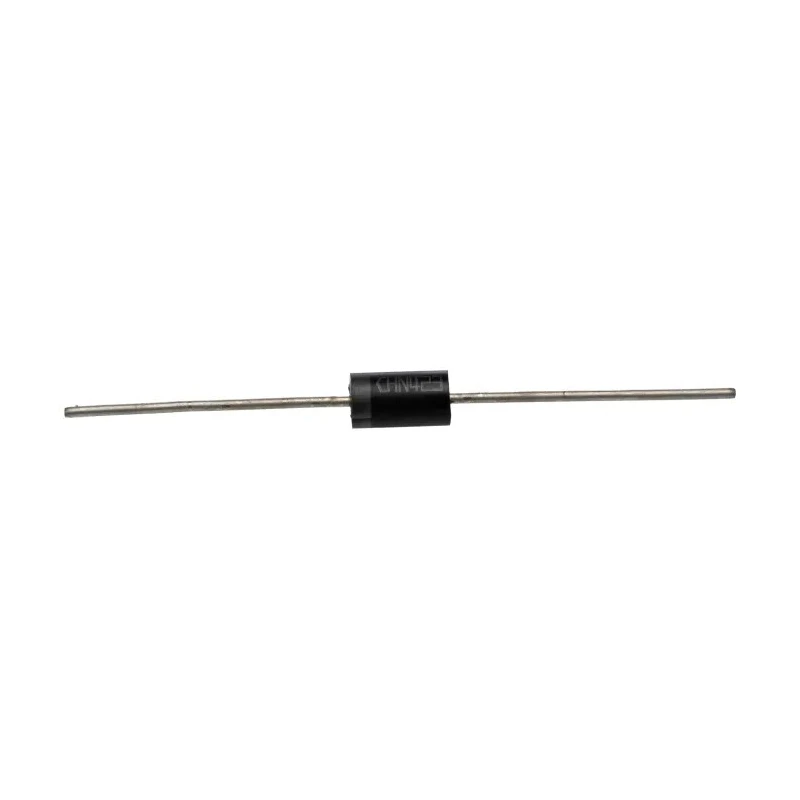

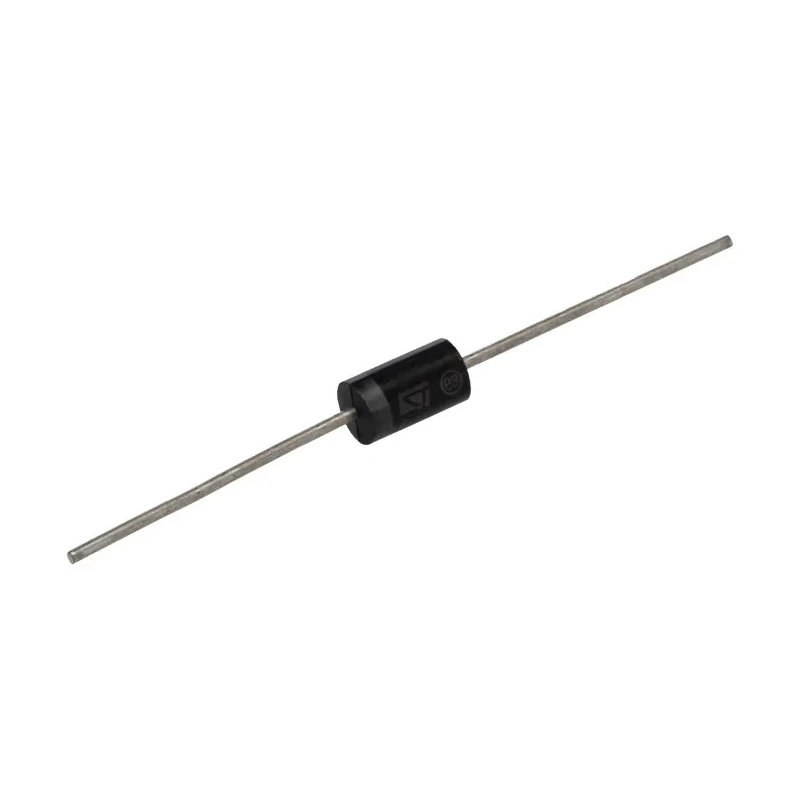

STMicroelectronics 1-Element Uni-Directional TVS Diode 1.5 kW 2-Pin DO-201 1.5KE440A
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE440A |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 776V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 418V |
| Maximum Reverse Stand-off Voltage Vwm | 376V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 13A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Designed for transient voltage suppression in sensitive electronics.
- Single-element, uni-directional diode configuration for precise protection.
- Supports peak pulse power dissipation of 1.5 kW for high energy surges.
- Operating temperature range from -65°C to 175°C for demanding environments.
- Through-hole mount type suitable for various PCB designs.
- Rated minimum breakdown voltage of 418 V with a maximum reverse stand-off voltage of 376 V.
- Clamping voltage of 776 V ensuring effective voltage spike limiting.
- Compact physical dimensions of length 9.5 mm, diameter 5.3 mm and width 5.3 mm.
Product Description
STMicroelectronics 1.5KE440A 1-Element Uni-Directional TVS Diode is a robust transient voltage suppressor designed to protect electronic circuits from damaging voltage surges. Featuring a single-element diode configuration and uni-directional operation, it offers reliable and precise voltage clamping to safeguard sensitive components in various industrial and commercial applications.
This diode provides a peak pulse power dissipation of 1.5 kW, making it suitable for high surge energy environments. It is housed in a DO-201 package, which is a through-hole mount type, facilitating easy integration into printed circuit boards.
The device has a minimum breakdown voltage (Vbr) of 418 V and a maximum reverse stand-off voltage (Vwm) of 376 V, protecting circuits from transient voltages exceeding these thresholds. The maximum clamping voltage is 776 V, ensuring effective suppression of voltage spikes.
Designed to operate reliably across a wide temperature range from -65°C to 175°C, this TVS diode is well-suited for harsh industrial environments including power supply boards, communication equipment, automotive electronics, and other high-reliability systems.
Physical dimensions are compact with a length of 9.5 mm, diameter and width both 5.3 mm, enabling use in space-constrained applications. Rated for a maximum peak pulse current of 13 A and exhibiting a low maximum reverse leakage current of 1 μA, the diode maintains energy efficiency while providing surge protection.
This single-element device lacks ESD protection but excels in transient voltage suppression functions.
Packaged individually, this device fits seamlessly into automated or manual assembly workflows. It is commonly deployed in industrial, laboratory, and electronic component manufacturing sectors to enhance product durability and prevent circuit failures due to voltage spikes.
Choose STMicroelectronics 1.5KE440A for effective, high-power transient voltage suppression in compact DO-201 form factor. Explore the Electronics & Electricals category at EnvMart for more semiconductor and TVS Diode solutions.
Designed for transient voltage suppression in sensitive electronics. Single-element, uni-directional diode configuration for precise protection. Supports peak pulse power dissipation of 1.5 kW for high energy surges. Operating temperature range from -65°C to 175°C for demanding environments.
Through-hole mount type suitable for various PCB designs. Rated minimum breakdown voltage of 418 V with a maximum reverse stand-off voltage of 376 V. Clamping voltage of 776 V ensuring effective voltage spike limiting. Compact physical dimensions of length 9.5 mm, diameter 5.3 mm and width 5.3 mm.
Maximum peak pulse current rated at 13 A for reliable surge handling. Low maximum reverse leakage current of 1 μA to reduce power loss.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STMicroelectronics 1.5KE440A TVS diode supports a peak pulse power dissipation of 1.5 kW, making it suitable for high energy surge environments.
This diode operates reliably across a wide temperature range from -65°C to 175°C, allowing it to function in demanding environments.
The diode has compact physical dimensions with a length of 9.5 mm, and both a diameter and width of 5.3 mm.
The maximum clamping voltage for the 1.5KE440A is 776 V, ensuring effective suppression of voltage spikes.
This model utilizes a through-hole mount type, making it suitable for various PCB designs.
The rated minimum breakdown voltage (Vbr) of this diode is 418 V, providing protection from transient voltages exceeding this threshold.
The maximum reverse stand-off voltage (Vwm) for the 1.5KE440A is 376 V, ensuring protection against over-voltage conditions.
This diode is rated for a maximum peak pulse current of 13 A, allowing it to handle significant surge currents.
The maximum reverse leakage current for this diode is 1 μA, which helps in reducing power loss during operation.
This diode is commonly deployed in industrial, laboratory, and electronic component manufacturing sectors to protect circuits from voltage spikes.
The 1.5KE440A features a single-element configuration, designed for uni-directional operation.
The diode is housed in a DO-201 package type, which facilitates easy integration into printed circuit boards.
