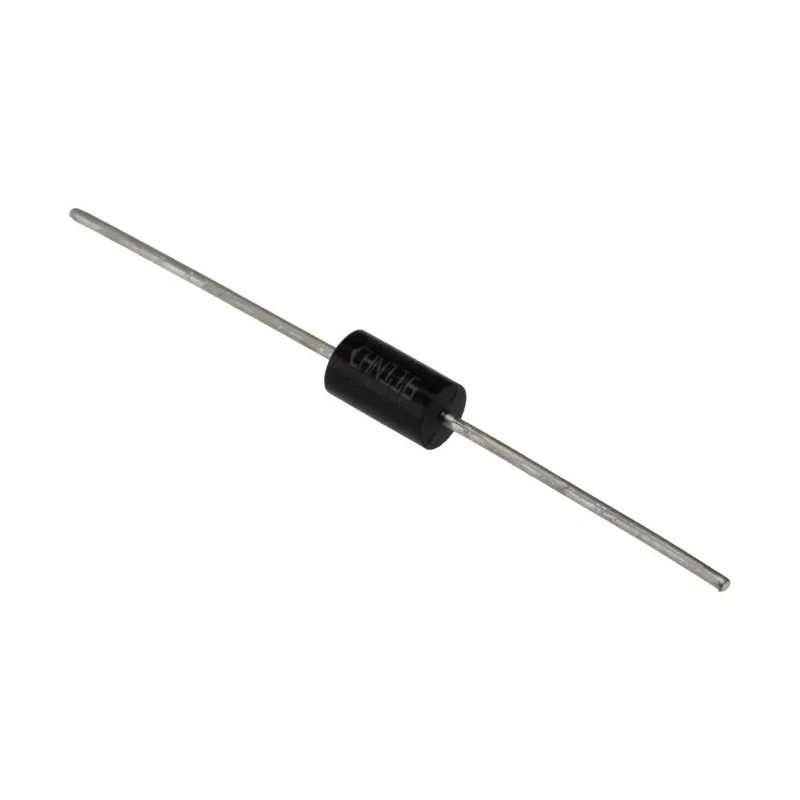

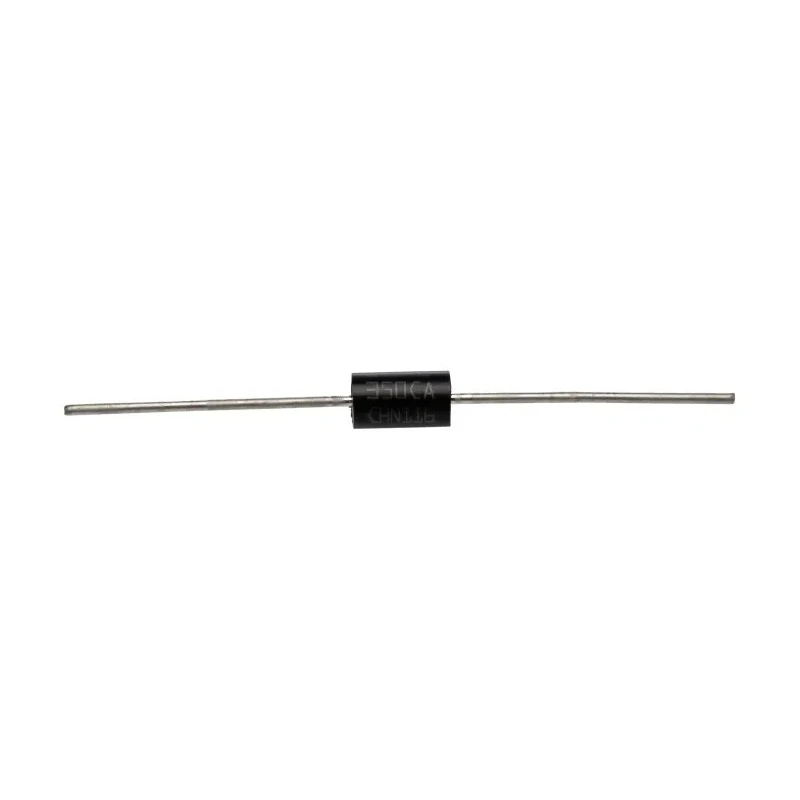

STMicroelectronics 1-Element Bi-Directional TVS Diode, 1.5 kW, 2-Pin DO-201 1.5KE350CA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE350CA |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 618V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 332V |
| Maximum Reverse Stand-off Voltage Vwm | 299V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 16A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Features a single diode configuration for precise protection.
- Bi-directional design suitable for AC and DC applications.
- Minimum breakdown voltage of 332 V ensures effective clamping.
- Peak pulse power dissipation of 1.5 kW protects against high transients.
- Through hole mount type with DO-201 package for easy PCB integration.
- Maximum reverse stand-off voltage of 299 V for stable operation.
- Clamping voltage of 618 V limits voltage spikes effectively.
- Wide operating temperature range from -65°C to 175°C for harsh environments.
Product Description
STMicroelectronics 1.5KE350CA is a 1-Element Bi-Directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic components from voltage spikes and transients. Rated for a peak pulse power dissipation of 1.5 kW, this diode is housed in a through-hole DO-201 package with two pins, facilitating easy integration into various electronic circuits.
This bi-directional TVS diode provides symmetrical voltage protection for AC and DC systems. The device offers a minimum breakdown voltage of 332 V and a maximum reverse stand-off voltage of 299 V, clamping voltage capped at 618 V to effectively clip voltage surges and safeguard downstream components.
Operating reliably across a broad temperature range from -65°C to 175°C, the 1.5KE350CA is suitable for industrial, automotive, and consumer electronics applications where transient voltage suppression is critical. Its maximum peak pulse current of 16 A allows it to handle significant surge events without degradation.
With a compact axial form factor measuring 9.5 mm in length and 5.3 mm in diameter, this diode fits well in space-constrained PCB layouts. The single diode configuration supports efficient uni- or bi-directional transient voltage suppression, depending on circuit design requirements.
Features a single diode configuration for precise protection. Bi-directional design suitable for AC and DC applications. Minimum breakdown voltage of 332 V ensures effective clamping. Peak pulse power dissipation of 1.5 kW protects against high transients.
Through hole mount type with DO-201 package for easy PCB integration. Maximum reverse stand-off voltage of 299 V for stable operation. Clamping voltage of 618 V limits voltage spikes effectively. Wide operating temperature range from -65°C to 175°C for harsh environments.
Maximum peak pulse current of 16 A for robust surge handling. Compact dimensions with length of 9.5 mm and diameter of 5.3 mm.
This TVS Diode is ideal for transient voltage suppression in industrial, laboratory, automotive, and consumer electronics, helping to improve durability and reliability of devices. Integration of the 1.5KE350CA diode provides efficient surge protection in power supplies, switching circuits, and communication devices.
Explore EnvMart's extensive range of semiconductor devices and transient voltage suppressors for high-performance electronic applications. Find compatible components and accessories to enhance your project designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 1.5 kW, which allows it to protect against high transients effectively.
The minimum breakdown voltage is 332 V, ensuring effective clamping during voltage spikes.
The maximum reverse stand-off voltage is 299 V, providing stable operation under normal conditions.
The clamping voltage is capped at 618 V, which limits voltage spikes effectively.
It can handle a maximum peak pulse current of 16 A, allowing it to manage significant surge events without degradation.
This diode operates reliably within a temperature range from -65°C to 175°C, making it suitable for harsh environments.
The diode has a length of 9.5 mm and a diameter of 5.3 mm, making it compact for PCB layouts.
It uses a through-hole mount type, specifically housed in a DO-201 package for easy PCB integration.
This model features a single diode configuration, which supports efficient uni- or bi-directional transient voltage suppression.
It is suitable for industrial, automotive, and consumer electronics applications where transient voltage suppression is critical.
The maximum reverse leakage current is 1 μA, ensuring minimal current flow under reverse bias conditions.
The series designation of this model is 1.5KE, indicating its specific characteristics and performance profile.
