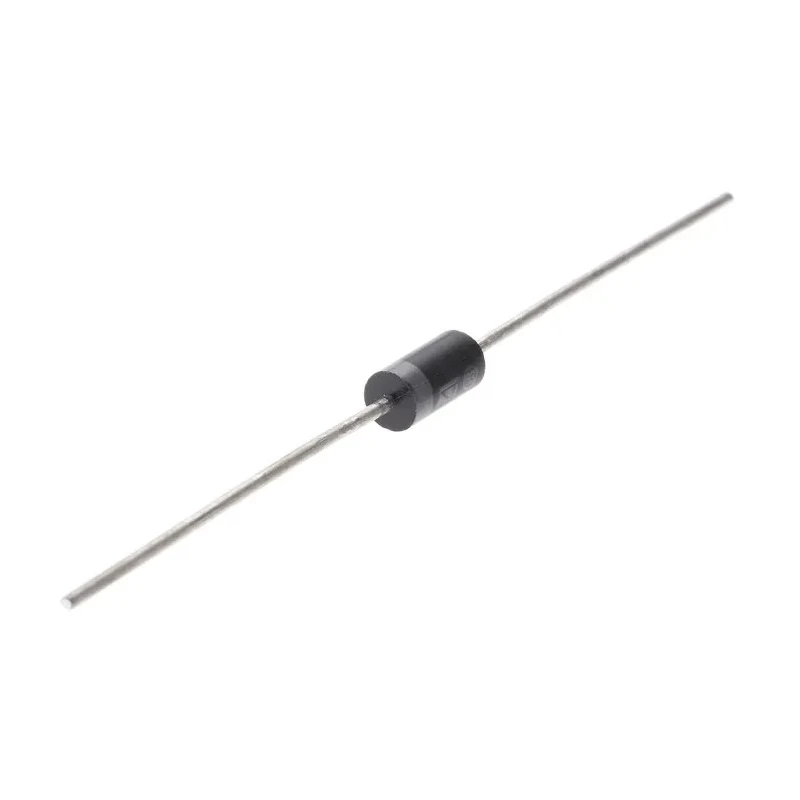

STMicroelectronics 1-Element Uni-Directional TVS Diode 600 W 2-Pin DO-15 P6KE30A

STMicroelectronics P6KE30A is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode specifically engineered to protect sensitive electronic circuits from voltage spikes and surges. It offers a peak pulse power dissipation rating of 600 W, making it capable of handling high transient currents effectively. Its DO-15 axial through-hole package provides easy mounting and reliable electrical performance.

This diode features a minimum breakdown voltage of 28.5 V and a clamping voltage of 53.5 V, ensuring fast response during voltage transients to protect devices downstream. Its maximum reverse stand-off voltage is 25.6 V, ideal for low voltage electronic circuitry. The device operates within a wide temperature range from -65°C to 175°C, maintaining stable operation in harsh industrial environments.

The P6KE30A has a peak pulse current capability of 75 A and a maximum reverse leakage current of just 1 μA, contributing to energy efficiency and device longevity. With a single element per chip, the device offers precise and reliable voltage suppression without interference.

With dimensions of 6.75 mm length and 3.53 mm diameter, the compact DO-15 package suits PCB assemblies and through-hole mounting applications in power supplies, telecommunications, industrial control systems, and consumer electronics.

Typical use includes surge protection in circuits vulnerable to electrostatic discharge, lightning strikes, and electrical transients in industrial and household electrical equipment. The diode does not have specific automotive approvals but serves well in general-purpose transient voltage suppression.

Uni-directional diode configuration ideal for protecting circuits from voltage transients. Peak pulse power rating of 600 watts ensures robust protection capability. Minimum breakdown voltage of 28.5 volts and clamping voltage of 53.5 volts.

Operates reliably between -65°C and 175°C temperature range. Compact DO-15 through-hole package with length 6.75 mm and diameter 3.53 mm. Maximum reverse stand-off voltage of 25.6 volts suitable for low voltage applications.

Maximum peak pulse current of 75 amperes for transient surges. Single element per chip design for efficient transient voltage suppression. Maximum reverse leakage current of 1 microampere ensures low leakage losses. Suitable for industrial and electronic power protection applications.

Explore the STMicroelectronics line of semiconductor components and TVS Diodes at EnvMart for dependable circuit protection solutions across diverse industrial and electronics sectors.
