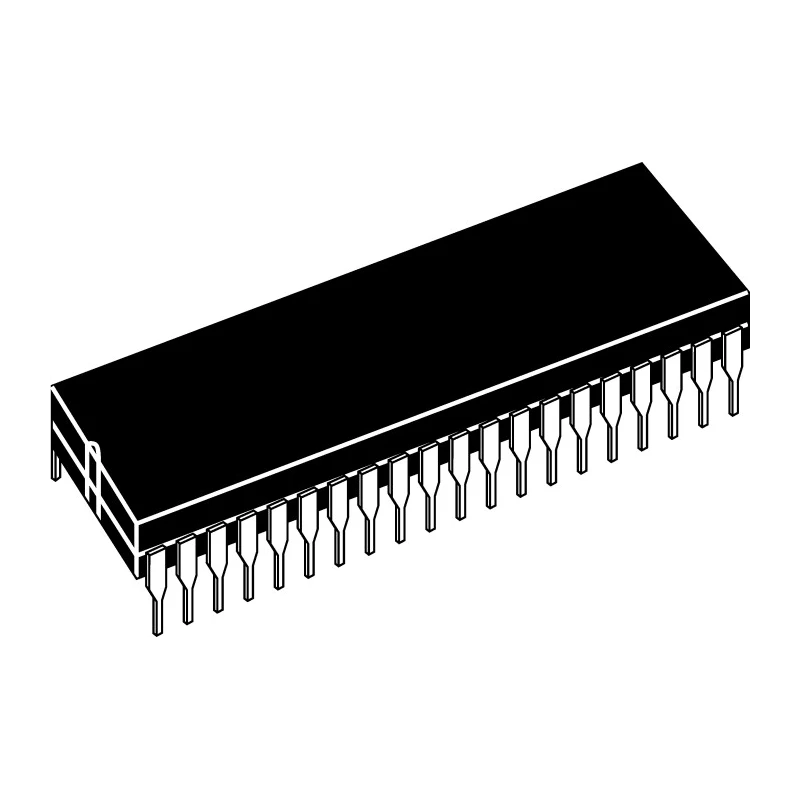

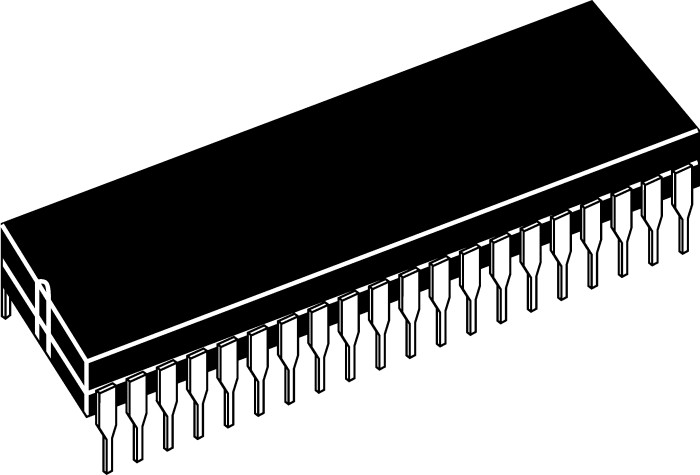

Microchip 8 bit PIC PIC18F Microcontroller, 64 MHz Clock, 64kB FLASH Memory, 40-Pin PDIP PIC18F46K80-I/P

Free Delivery in India | Lowest Global Shipping Charges

Microchip 8 bit PIC PIC18F Microcontroller, 64 MHz Clock, 64kB FLASH Memory, 40-Pin PDIP PIC18F46K80-I/P

Name: Microchip 8 bit PIC PIC18F Microcontroller, 64 MHz Clock, 64kB FLASH Memory, 40-Pin PDIP PIC18F46K80-I/P
Brand: Microchip
SKU: 219455
Price: 6.91 USD
Availability: InStock



Category Microcontroller Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	5.08mm
Length	53.34mm
Model	PIC18F46K80-I/P
Width	14.73mm
Mount Type	Through Hole
Series	PIC18F
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Ram size	1kB
Pin Count	40
Maximum Supply Voltage	5.5V
Maximum Power Dissipation Pd	1W
Minimum Supply Voltage	1.8V
Device Core	PIC
Program Memory Size	64kB
Maximum Clock Frequency	64MHz
Number of Programmable I/Os	35
Analogue Comparators	2
Number of Timers	5
Instruction Set Architecture	RISC
ADCs	11 x 12 Bit
Program Memory Type	FLASH

Key Features

Operates at a maximum clock frequency of 64 MHz for fast processing.
Includes 64kB of FLASH program memory for application code storage.
Features 1kB RAM and 35 programmable I/O pins for flexible interfacing.
Supports 11 12-bit Analog-to-Digital Converters (ADCs) and 2 analogue comparators.
Designed for through-hole mounting in a 40-pin PDIP package.
Operates within a voltage range of 1.8V to 5.5V with maximum power dissipation of 1W.
Wide operating temperature range from -40°C to 85°C for industrial environments.
Includes 5 timers and supports RISC instruction set architecture.

Product Description

Microchip PIC18F46K80-I/P is an 8-bit PIC microcontroller from the PIC18F series designed to deliver high performance and reliability for embedded control applications running at up to 64 MHz.

This device integrates 64kB of FLASH memory for program storage and 1kB of RAM, providing ample space for application code and data. It operates ideally within a voltage supply range from 1.8V up to 5.5V, dissipating a maximum power of 1W, making it suitable for battery-powered and industrial systems.

The microcontroller is housed in a 40-Pin PDIP package suited for through-hole mounting on standard printed circuit boards, with physical dimensions including 53.34 mm length, 14.73 mm width, and 5.08 mm height to facilitate integration into compact electronic devices.

Key functional features include 35 programmable input/output pins, 5 embedded timers, and 11 analog to digital converters each with 12-bit resolution, supporting precise analog signal processing. The device also incorporates 2 analogue comparators for embedded system monitoring and control.

Designed with the RISC instruction set architecture, the PIC18F46K80-I/P ensures efficient code execution and low power consumption, making it ideal for industrial, laboratory, and commercial electronic applications including sensor management, automation, and embedded control systems.

Operates up to 64 MHz clock speed. 64kB FLASH memory and 1kB RAM for robust application handling. 35 Programmable I/O pins for interfacing with peripheral devices. 11 ADCs with 12-bit resolution and 2 analogue comparators.

5 timers support precise timing and control functions. Wide voltage range of 1.8V to 5.5V, 1W max power dissipation. 40-Pin PDIP package for through-hole mounting on PCBs. Operating temperature from -40°C to 85°C for diverse environments.

RISC instruction set for efficient and fast instruction execution. This microcontroller is excellent for use in electronics manufacturing, industrial control systems, robotics, and other embedded system projects. Explore more Microcontrollers and embedded components in the Electronics & Electricals category on EnvMart for optimizing your design and manufacturing needs.
