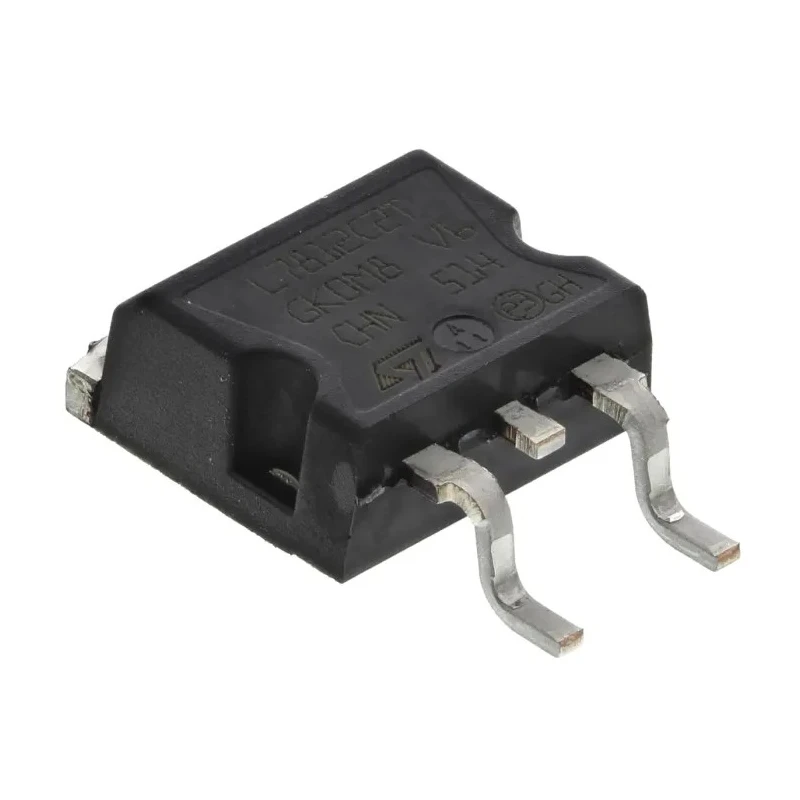

STMicroelectronics Linear Voltage Regulator 35V 3-Pin Surface Mount, 1.5A Output Current L7812CD2T-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics, Voltage Regulator 35V 3-Pin RS Stock No |
| Brand | STMicroelectronics |
| Height | 4.6mm |
| Length | 10.4mm |
| Model | L7812CD2T-TR |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | L78xx |
| Maximum Operating Temperature | 150°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 8mA |
| Pin Count | 3 |
Key Features
- Delivers up to 1.5A output current with positive polarity regulation.
- Compact surface mount package with dimensions 10.4mm length x 9.35mm width x 4.6mm height.
- Features thermal overload protection and output transition safe area protection.
- Operates at maximum input voltage of 35V and maximum operating temperature of 150°C.
- Ideal for local on-card regulation applications in electronic power management.
- Includes internal thermal shutdown and current limiting for safety.
Product Description
STMicroelectronics L7812CD2T-TR is a linear voltage regulator designed for stable power management in electronic circuits. This 3-pin positive polarity regulator is built on a surface mount package, measuring 10.4mm in length, 9.35mm in width, and 4.6mm in height, making it suitable for compact PCB designs.
It supports an input voltage up to 35V and can deliver output currents up to 1.5A, ensuring efficient regulation for various applications. The regulator incorporates built-in thermal overload protection and output transition safe area protection, enhancing device reliability and safeguarding against overheating and electrical stress.
This device includes internal thermal shutdown and current limiting features, making it resilient for continuous industrial and commercial use. It is part of the L78xx series of fixed output voltage regulators widely used in electronic power management systems.
Typical use cases include local on-card regulation for power conditioning in industrial electronics, laboratory equipment, manufacturing controls, and HVAC systems requiring stable DC voltage supplies.
Delivers up to 1.5A output current with positive polarity regulation. Compact surface mount package with dimensions 10.4mm length x 9.35mm width x 4.6mm height. Features thermal overload protection and safe area output transition protection.
Operates at maximum input voltage of 35V and maximum operating temperature of 150°C. Includes built-in thermal shutdown and current limiting for enhanced safety. This STMicroelectronics voltage regulator is an essential component for electronic circuit designers focusing on power management and voltage stabilization challenges.
Explore more power management ICs and Voltage Regulators at EnvMart for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The L7812CD2T-TR can deliver an output current of up to 1.5A.
This model operates with a maximum input voltage of 35V.
The dimensions of this voltage regulator are 10.4mm in length, 9.35mm in width, and 4.6mm in height.
It is designed in a compact surface mount package.
The maximum operating temperature for the L7812CD2T-TR is 150°C.
This voltage regulator includes thermal overload protection, output transition safe area protection, thermal shutdown, and current limiting features.
The quiescent current for this model is 8mA.
This voltage regulator has a pin count of 3.
It provides positive polarity regulation.
This model is part of the L78xx series of fixed output voltage regulators.
It is suitable for local on-card regulation applications in electronic power management, including industrial electronics and HVAC systems.
The country of origin for this voltage regulator is India.
