Microchip 8 Bit PIC12 Microcontroller with 64B FLASH Memory, 8 MHz, 8-Pin MSOP PIC12F519-I/MS

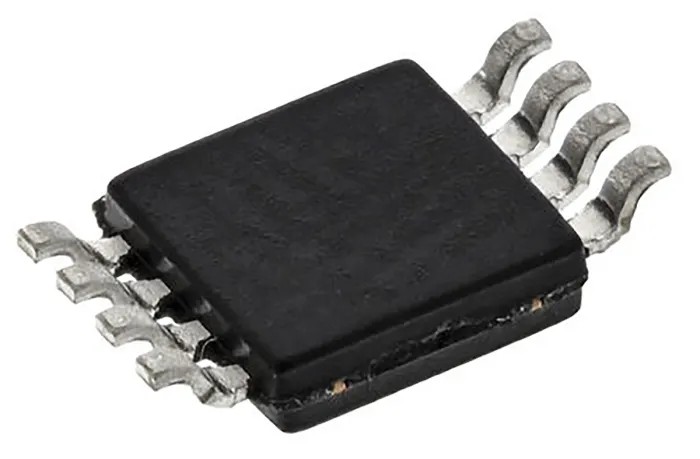

Microchip PIC12F519-I/MS is an 8-bit PIC12 microcontroller designed for compact and efficient embedded applications. It operates with an 8 MHz internal oscillator and contains 64 bytes of flash program memory along with 41 bytes of RAM. Housed in a compact 8-pin MSOP surface mount package measuring 3 mm by 3 mm, it supports up to 33 programmable I/O pins, making it suitable for a variety of control and interface needs.

This microcontroller features a 2 level hardware stack and a reduced instruction set computing (RISC) architecture with 33 instructions, enabling up to 2 MIPS performance. Its program memory is of the flash type and supports in-circuit serial programming (ICSP), allowing easy firmware updates and debugging during development and production.

The device includes 2 analogue comparators and 1 timer, enhancing its utility for timing and analog signal processing tasks. It supports RS232 interface type compatibility, making it suitable for serial communication protocols widely used in industrial and embedded systems.

Operating temperature ranges from -40°C to 85°C, ensuring reliable performance in industrial and harsh environment conditions. The maximum power dissipation is rated at 800 mW, optimized for low power designs. The supply voltage range is from 2V to a maximum of 6V, allowing flexibility in power supply options.

Operates at 8 MHz internal oscillator with selectable output frequencies. 64 bytes of flash program memory and 41 bytes RAM enable small program execution and data storage. Compact 8-pin MSOP package measuring 3 mm x 3 mm suitable for space-constrained applications.

Supports RS232 serial communication interface for flexible connectivity. Designed for use in industrial, embedded, and electronic control systems. Includes 2 analogue comparators and 1 timer supporting precise control functions.

Flash program memory supports in-circuit serial programming (ICSP) for rapid prototyping and development. Wide operating temperature range (-40 to 85°C) enhances reliability in tough environments. Low power consumption with max power dissipation of 800mW improves energy efficiency.

Microchip microcontroller with RISC architecture allowing efficient and fast instruction execution.

This Microchip PIC12F519-I/MS microcontroller is ideal for industrial automation, consumer electronics, and laboratory control applications, where compact size and versatile functionality are required. Explore the full Microchip Microcontroller range on EnvMart for compatible components and development kits.
