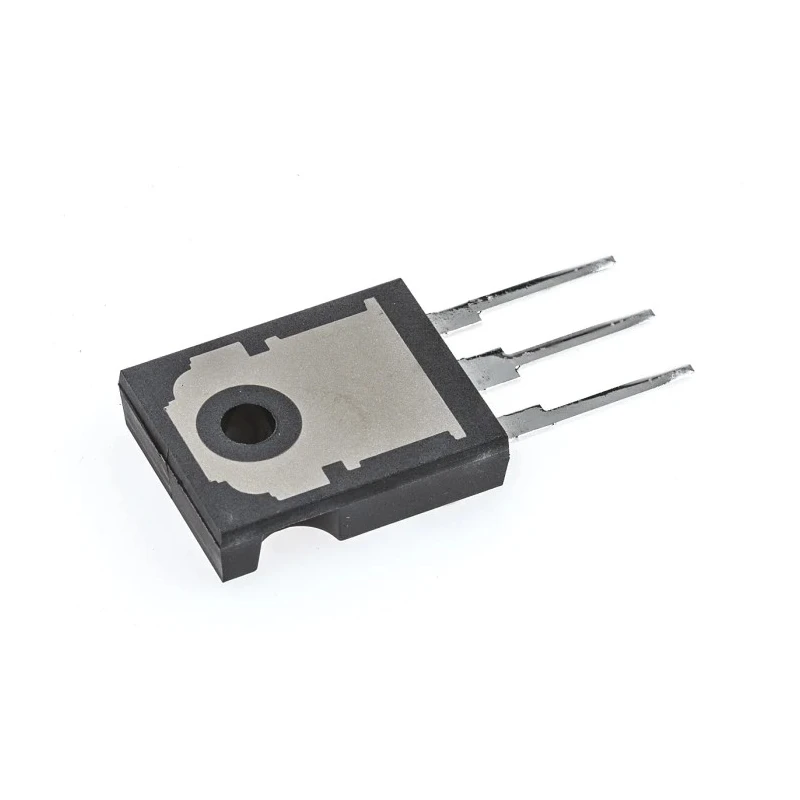

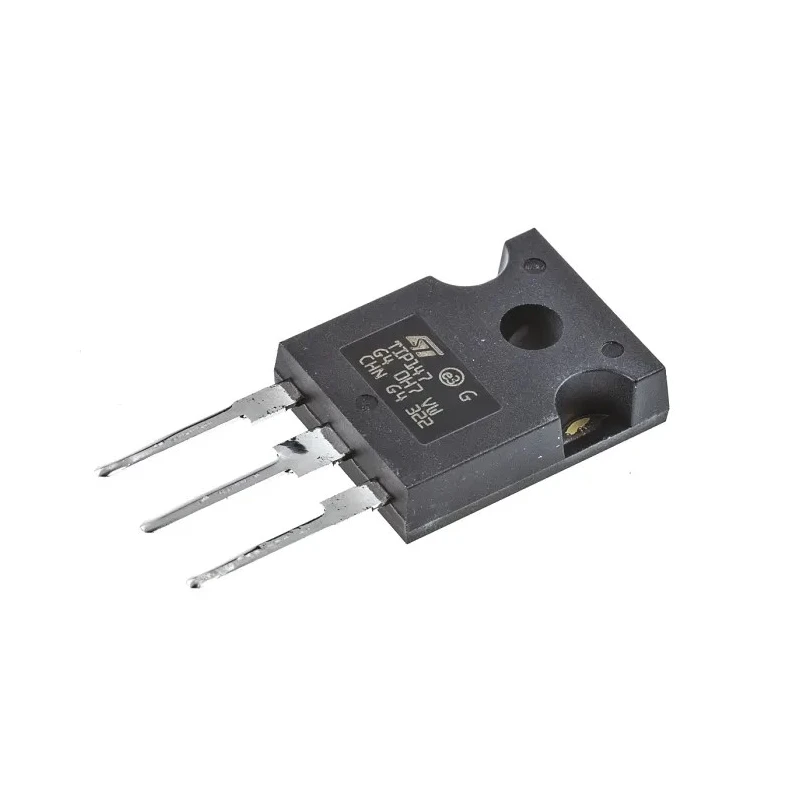

STMicroelectronics Darlington Transistor PNP 10A 100V HFE 500 3-Pin TO-247 TIP147

STMicroelectronics TIP147 is a PNP Darlington Transistor designed for applications requiring high current handling up to 10A and a collector-emitter voltage rating of 100V. Presented in a robust 3-pin TO-247 package, this transistor offers reliable performance in power amplification and switching tasks.

It features a minimum DC current gain (hFE) of 500, ensuring high efficiency in signal amplification. The device can dissipate power up to 125W, making it suitable for demanding electronic and power control applications. Its operating temperature ranges from -65°C to 150°C, providing durability in varied environmental conditions.

The TIP147's transistor polarity is PNP, compatible with multiple circuit designs where positive ground configurations are used. Its low collector-emitter saturation voltage (2V max) helps reduce conduction losses during operation, improving overall device efficiency.

This transistor is mounted through-hole with a standard TO-247 package which simplifies integration into printed circuit boards for industrial and laboratory equipment. It is applicable in power supplies, motor control circuits, and other electronic applications requiring robust performance and reliability.

STMicroelectronics maintains high production standards with manufacturing in China, guaranteeing consistent quality and long-term endurance. The TIP147 series expands the range of bipolar transistors for general-purpose and power applications.

Designed for high current and high voltage applications. Packaged in a robust 3-pin TO-247 casing suitable for through-hole mounting. Minimum DC current gain (hFE) of 500 ensures efficient amplification. Capable of dissipating up to 125W power for demanding use cases.

Operates reliably within temperature range of -65°C to 150°C. PNP transistor polarity optimized for various electronic circuit configurations. Maximum collector-emitter saturation voltage of 2V minimizes power loss. Suitable for industrial, power, and electronic device applications.

Manufactured in China complying with product quality standards.
