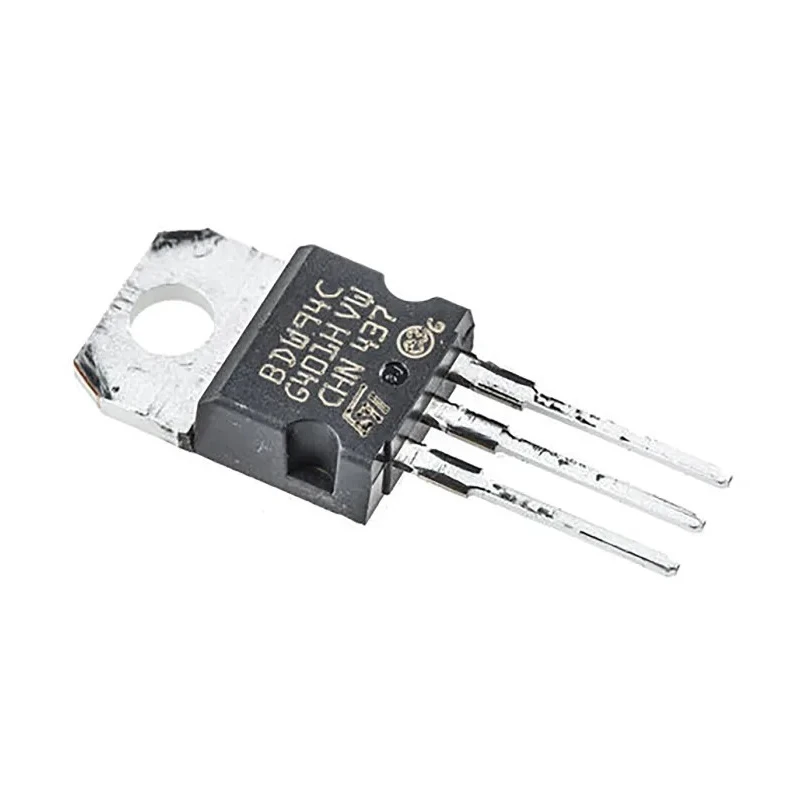

STMicroelectronics Darlington Transistor PNP 12A 100V HFE 100 3-Pin TO-220 BDW94C
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | BDW94C |
| Mount Type | Through Hole |
| Series | BDW94C |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 12A |
| Maximum Collector Emitter Voltage Vceo | 100V |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain hFE | 100 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2V |
| Maximum Collector Base Voltage VCBO | 100V |
| Maximum Collector Cut-off Current | 0.1mA |
| Maximum Power Dissipation Pd | 33W |
| STMicroelectronics 1 Darlington Transistor PNP, 12 A 100 V HFE | 100, 3-Pin TO-220 |
Key Features
- High gain minimum DC current hFE of 100 ensures amplification efficiency.
- TO-220 through-hole package with 3 pins facilitates easy mounting.
- Max power dissipation of 33W supports robust thermal handling.
- Reliable operation between -65°C and 150°C operating temperatures.
- Low collector-emitter saturation voltage of 2V reduces power losses.
- Emitter-base voltage maximum of 5V safeguards device stability.
- Maximum collector cut-off current limited to 0.1mA for low leakage.
- Ideal for use in power amplifiers, switching circuits, and industrial electronics.
Product Description
STMicroelectronics BDW94C is a high-performance PNP Darlington Transistor designed to handle continuous collector currents up to 12 amperes and collector-emitter voltages of 100 volts.
The device features a minimum DC current gain (hFE) of 100, providing excellent amplification characteristics suitable for power switching and amplification tasks. Housed in a standard TO-220 through-hole package with three pins, this transistor supports easy integration into industrial and commercial electronic assemblies.
The BDW94C offers a maximum power dissipation of 33 watts, allowing it to operate efficiently under demanding thermal conditions without degradation.
It is rated for operation across a wide temperature range from -65°C to 150°C, ensuring reliability in harsh environments commonly encountered in industrial and automotive applications.
This transistor has a low collector-emitter saturation voltage of 2V that reduces power loss, improving circuit efficiency. Typical use cases include power amplifiers, motor drivers, and switching regulators within industrial, manufacturing, and electronic control systems.
The BDW94C transistor is constructed with ruggedness and long-term reliability in mind, meeting rigorous industrial requirements without automotive standards. High minimum DC gain (hFE) of 100 for efficient signal amplification.
Maximum collector current capacity of 12 amperes for heavy-duty applications. Robust thermal handling with 33W maximum power dissipation. Wide operating temperature range from -65°C to 150°C for versatility. Standard TO-220 3-pin through-hole mounting package.
Low saturation voltage reduces power consumption. Explore more components in our Semiconductor category at EnvMart for a wide range of electronic and power device needs.
