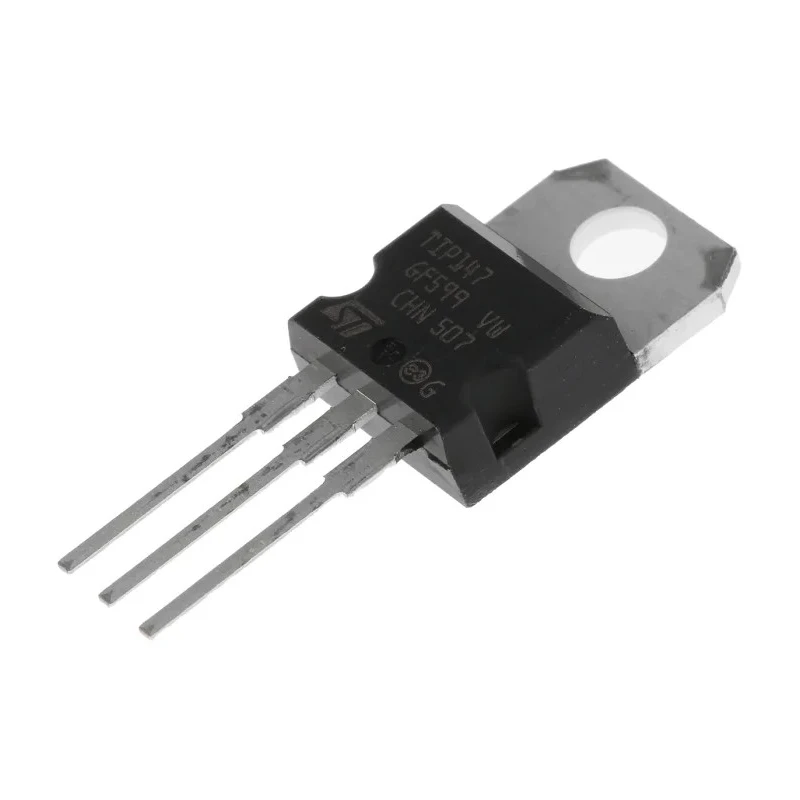

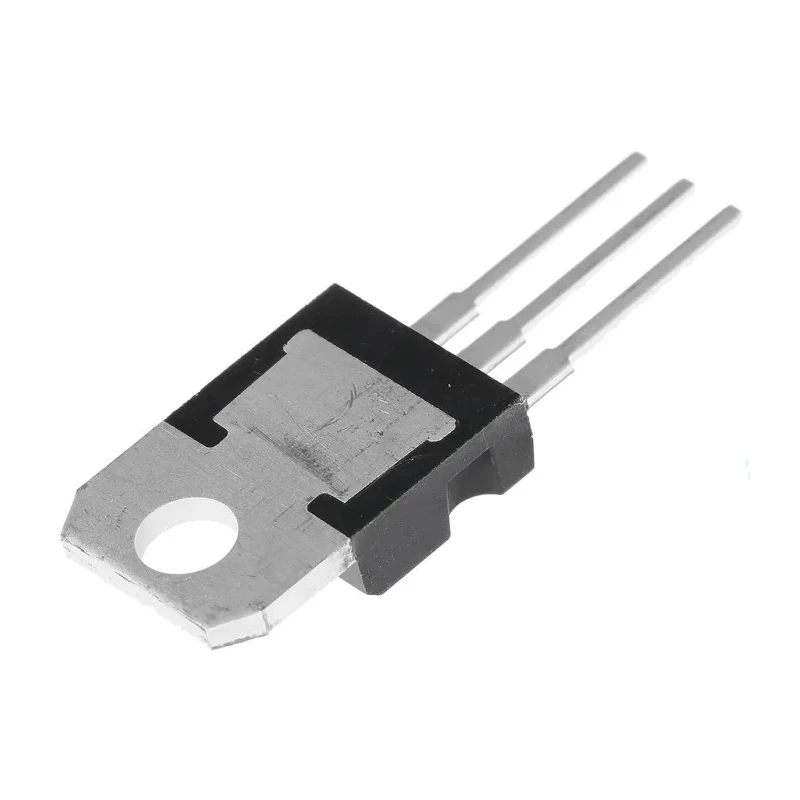

STMicroelectronics Darlington Transistor PNP 10 A 100 V 3-Pin TO-220 TIP147T
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | TIP147T |
| Mount Type | Through Hole |
| Series | TIP147T |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 10A |
| Maximum Collector Emitter Voltage Vceo | 100V |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain hFE | 500 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2V |
| Maximum Collector Base Voltage VCBO | 100V |
| Maximum Collector Cut-off Current | 1mA |
| Maximum Power Dissipation Pd | 90W |
| STMicroelectronics 1 Darlington Transistor PNP, 10 A 100 V HFE | 500, 3-Pin TO-220 |
Key Features
- Provides a maximum continuous collector current of 10 amperes.
- Operates with a maximum collector emitter voltage of 100 volts.
- Features a high DC current gain hFE of 500.
- Designed in a 3-pin TO-220 through-hole package for easy mounting.
- Capable of dissipating power up to 90 watts reliably.
- Wide operating temperature range from -65°C to 150°C.
- Emitter base voltage maximum of 5 volts ensuring safe operation.
- Low collector emitter saturation voltage of 2 volts for efficient switching.
Product Description
STMicroelectronics TIP147T Darlington Transistor PNP is engineered for high current and voltage applications, providing robust performance in a compact 3-pin TO-220 package.
This transistor offers a maximum continuous collector current of 10 A and can withstand collector emitter voltages up to 100 V, making it suitable for power amplification and switching in industrial and electronic designs.
The device features a high DC current gain (hFE) of 500, allowing efficient operation with minimal input current. It dissipates up to 90 W of power and supports a wide operating temperature range from -65°C to 150°C, ensuring reliability in demanding environments.
Its emitter base voltage is limited to 5 V, and it features a low collector emitter saturation voltage of 2 V to ensure efficient switching behavior. The transistor is configured as a single element in a through-hole mount TO-220 package, providing ease of installation and compatibility with various circuit boards.
STMicroelectronics offers this Darlington Transistor for use in power supply regulation, motor control, amplification circuits, and other industrial electronics requiring reliable PNP power transistors.
Provides a maximum continuous collector current of 10 amperes. Operates with a maximum collector emitter voltage of 100 volts. Features a high DC current gain hFE of 500. Designed in a 3-pin TO-220 through-hole package for easy mounting.
Capable of dissipating power up to 90 watts reliably. Wide operating temperature range from -65°C to 150°C. Emitter base voltage maximum of 5 volts ensuring safe operation. Low collector emitter saturation voltage of 2 volts for efficient switching.
Suitable for use in power amplification and switching applications. Single-element Darlington PNP transistor designed for industrial and electronic circuits.
This high-performance transistor is ideal for industrial electronics applications such as power amplification, switching, and control systems. Its robust ratings and industrial design support operation in automotive, manufacturing, and power supply regulation systems.
Explore more semiconductor and transistor options at EnvMart, your source for industrial electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TIP147T can handle a maximum continuous collector current of 10 amperes.
It operates with a maximum collector emitter voltage of 100 volts.
The transistor features a high DC current gain (hFE) of 500.
It is capable of dissipating power up to 90 watts reliably.
This model supports a wide operating temperature range from -65°C to 150°C.
The transistor is designed in a 3-pin TO-220 through-hole package for easy mounting.
The maximum emitter base voltage is limited to 5 volts.
It features a low collector emitter saturation voltage of 2 volts for efficient switching.
This model has a pin count of 3.
The TIP147T is manufactured in India.
It is suitable for power amplification, switching, and control systems in industrial electronics.
The maximum collector cut-off current is 1 mA.
