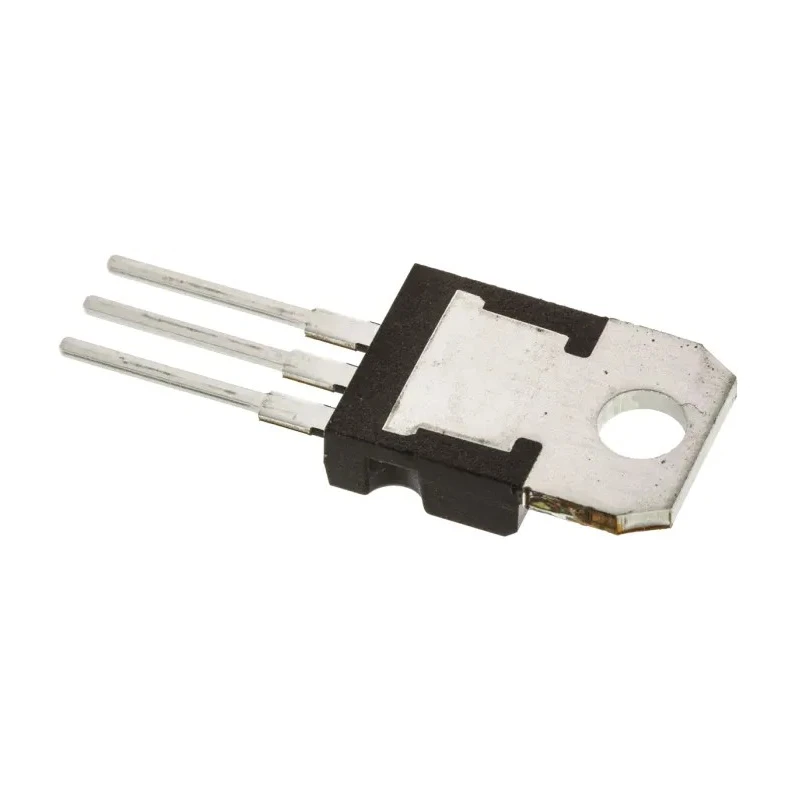

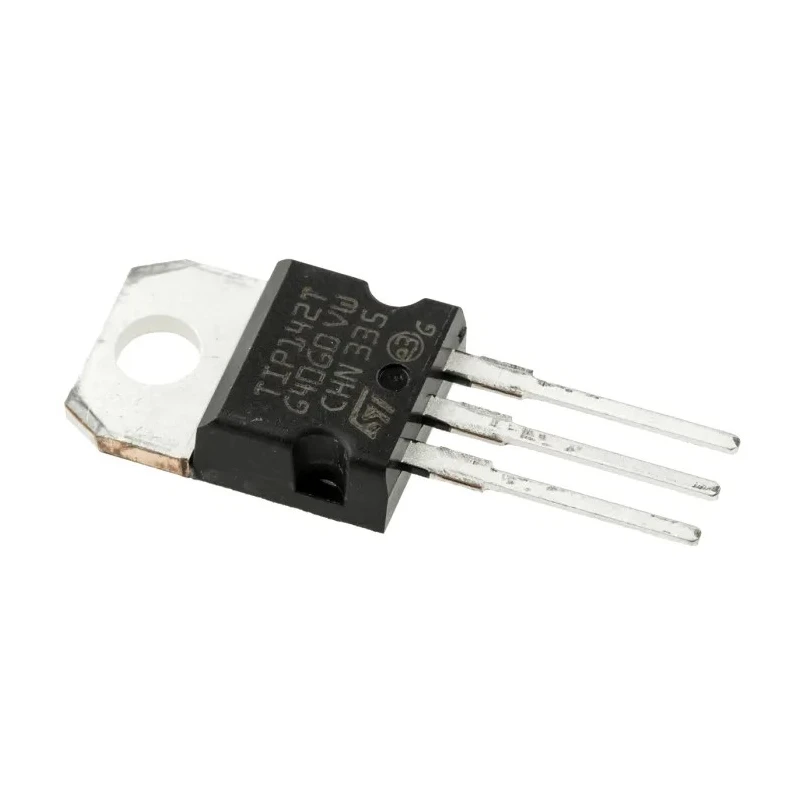

STMicroelectronics Darlington Transistor NPN 10 A 100 V 500 hFE 3-Pin TO-220 TIP142T
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | TIP142T |
| Mount Type | Through Hole |
| Series | TIP142T |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 10A |
| Maximum Collector Emitter Voltage Vceo | 100V |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain hFE | 500 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2V |
| Maximum Collector Base Voltage VCBO | 100V |
| Maximum Collector Cut-off Current | 1mA |
| Maximum Power Dissipation Pd | 90W |
| STMicroelectronics 1 Darlington Transistor NPN, 10 A 100 V HFE | 500, 3-Pin TO-220 |
Key Features
- Maximum continuous collector current of 10 amperes for robust applications.
- Maximum collector-emitter voltage rating of 100 volts ensures high voltage capability.
- High minimum DC current gain (hFE) of 500 for efficient amplification.
- Power dissipation rating of 90 watts for reliable thermal performance.
- Mounted in TO-220 package with 3 pins, suitable for through-hole assembly.
- Operating temperature range from -65°C to 150°C supports harsh environments.
- Transistor polarity is NPN for common amplification use cases.
- Maximum collector-emitter saturation voltage of 2 volts limits power loss.
Product Description
STMicroelectronics TIP142T is a high-performance Darlington transistor with NPN polarity, offering a maximum continuous collector current of 10 A and a maximum collector-emitter voltage of 100 V. Encapsulated in a TO-220 3-pin package, this device is designed for through-hole mounting and provides a minimum DC current gain (hFE) of 500, making it ideal for power amplification and switching tasks.
The TIP142T transistor can dissipate up to 90 watts of power and operates reliably across a wide temperature range from -65°C to 150°C. Its maximum collector-emitter saturation voltage is 2 V, which ensures efficient operation with minimal power loss. The compact form factor (length 10.4 mm and height 9.15 mm) allows integration into various electronic circuits within industrial and consumer electronics sectors.
Compatible with applications involving power regulation, amplification, and switching, the TIP142T Darlington transistor is an excellent choice for designers requiring robust semiconductor components capable of handling high current loads and voltages.
Maximum continuous collector current of 10 amperes for robust applications. Maximum collector-emitter voltage rating of 100 volts ensures high voltage capability. High minimum DC current gain (hFE) of 500 for efficient amplification.
Power dissipation rating of 90 watts for reliable thermal performance. Mounted in TO-220 package with 3 pins, suitable for through-hole assembly. Operating temperature range from -65°C to 150°C supports harsh environments.
Transistor polarity is NPN for common amplification use cases. Maximum collector-emitter saturation voltage of 2 volts limits power loss. Compact dimensions with a length of 10.4 mm and height of 9.15 mm. Designed for industrial and electronic component applications requiring Darlington transistor characteristics.
This Darlington transistor is widely used in industrial electronics, power amplifiers, switching regulators, and other electronic equipment requiring stable and high-current gain performance. The TO-220 package ensures ease of mounting and adequate heat dissipation.
Explore more semiconductor components and Darlington Transistors in this category on EnvMart to find the perfect fit for your electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for the TIP142T is 10 amperes.
The maximum collector-emitter voltage rating for the TIP142T is 100 volts.
The TIP142T has a minimum DC current gain (hFE) of 500, which allows for efficient amplification.
The power dissipation rating for the TIP142T is 90 watts, ensuring reliable thermal performance.
This transistor operates within a temperature range of -65°C to 150°C, making it suitable for harsh environments.
The TIP142T is mounted in a TO-220 package with 3 pins, suitable for through-hole assembly.
The TIP142T has a length of 10.4 mm and a height of 9.15 mm.
The maximum collector-emitter saturation voltage for the TIP142T is 2 volts, which limits power loss during operation.
The TIP142T is an NPN type Darlington transistor, commonly used for amplification.
The TIP142T is suitable for applications involving power regulation, amplification, and switching tasks.
The maximum emitter-base voltage (VEBO) for the TIP142T is 5 volts.
The maximum collector cut-off current for the TIP142T is 1 mA.
