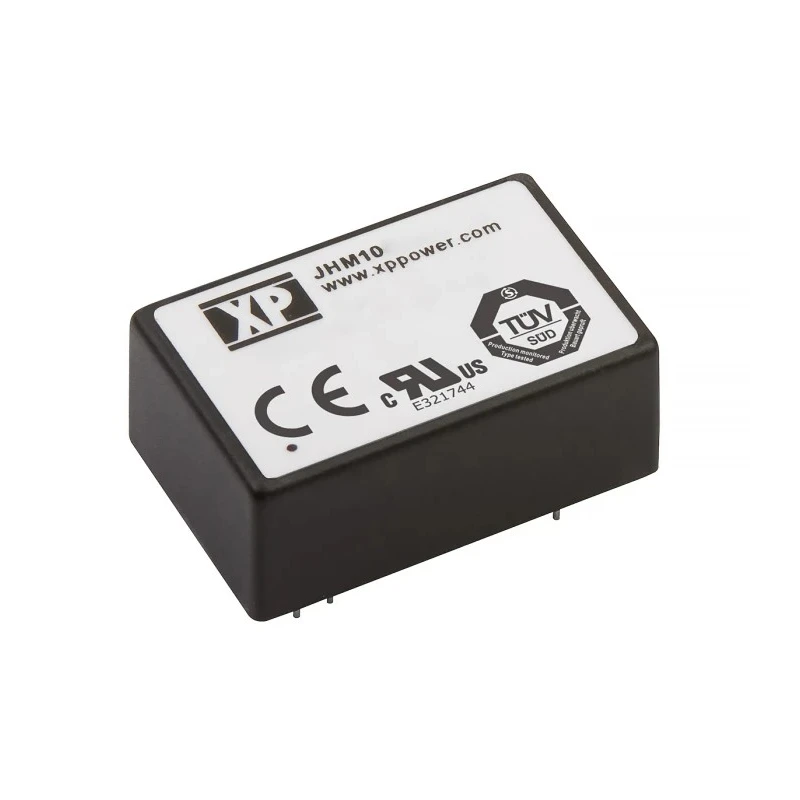

XP Power Isolated 10 W DC/DC Converter 12V DC Output, 9-18V DC Input, DIP-24 Package JHM1012S12

XP Power JHM1012S12 Isolated DC/DC Converter is a high-quality power module delivering 10 W maximum output power with a stable 12 V DC output at 833 mA. It accepts a wide input voltage range from 9 V to 18 V DC, making it compatible with various power sources. The converter is built in a DIP-24 through-hole package with reinforced 4000 VAC insulation that ensures operator safety, especially in medical or industrial environments.

The device operates efficiently at 88% efficiency and maintains operation across a broad temperature range from -40°C to 80°C, allowing usage in harsh conditions. Its low 2 μA patient leakage current complies with stringent IEC60601-1 medical safety standards, making this converter ideal for medical equipment requiring isolation and low electrical noise.

With dimensions of 31.75 mm length, 20.32 mm width, and 10.4 mm depth, the JHM1012S12 is compact and fits easily into various PCB designs. It features a single output and 24 pins facilitating robust connection and mounting. This product is manufactured in Taiwan, Province Of China, assuring quality manufacturing standards.

Provides isolated 10 W power conversion with 12 V output voltage at 833 mA. Wide input voltage range: 9 V to 18 V DC. Through-hole mounting DIP-24 package for reliable PCB integration. 4000 VAC reinforced insulation for enhanced safety compliance.

Low 2 μA patient leakage current suitable for medical devices. Meets IEC60601-1, 3rd edition, safety approval standards. Operating temperature range from -40°C up to 80°C. Compact size with dimensions 31.75 x 20.32 x 10.4 mm (LxWxD).

Designed for industrial, medical, and power supply applications. Manufactured in Taiwan, Province Of China.

This DC/DC converter by XP Power offers robustness and reliability for applications in industrial equipment, medical technology, laboratory instrumentation, and commercial power supplies. Its excellent electrical isolation and compliance with medical safety standards make it an ideal choice where safety and performance are paramount. For high-quality DC/DC Converters, explore EnvMart's extensive product portfolio ensuring precision and durability.
