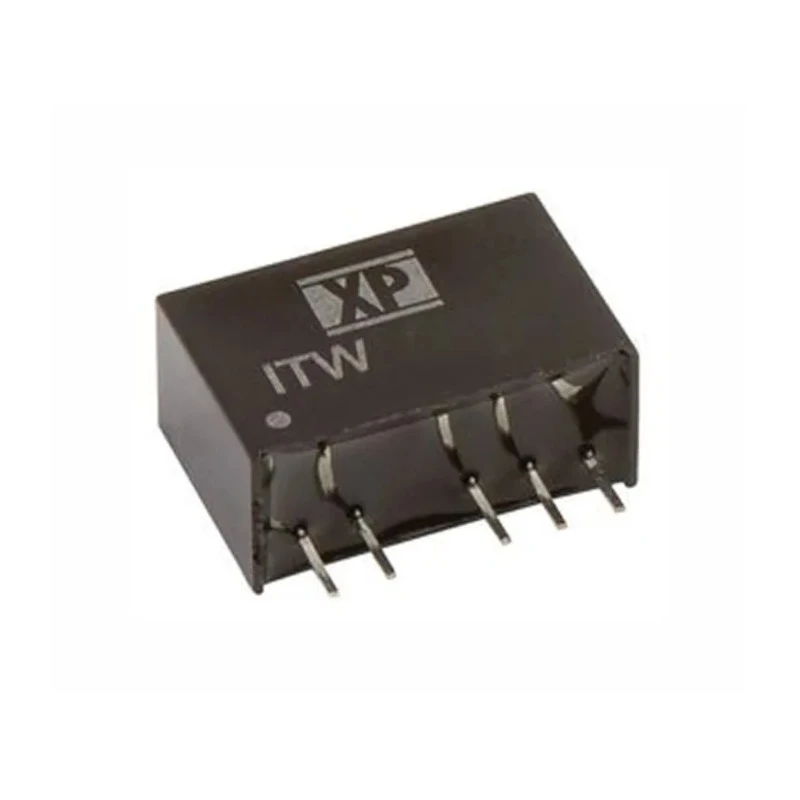

XP Power Isolated DC/DC Converter, 5V DC Output, 200mA, 75V DC Max Input, 36V DC Min Input, 1W Through Hole SIP ITW4805SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power ITW DC/DC Converter, 5V dc/ 200 mA, 75V d |
| Brand | XP Power |
| Efficiency | 76% |
| Length | 17mm |
| Model | ITW4805SA |
| Depth | 11mm |
| Width | 7.62mm |
| Mount Type | Through Hole |
| Series | ITW |
| Maximum Operating Temperature | 105°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2800000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 36V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Single output isolated converter with 1W maximum output power.
- Operating temperature range from -40°C to +105°C for reliable performance.
- Through hole SIP package with compact size of 17mm length, 7.62mm width, and 11mm depth.
- Isolation voltage of 1.5kV DC ensuring safety in industrial applications.
- High mean time between failure (MTBF) of 2,800,000 hours for enhanced reliability.
- Efficiency rated at 76% for energy-saving operation.
- Industry standard pinout with 6 pins suitable for PCB mounting.
- Suitable for industrial, electronic components, and power supply applications.
Product Description
XP Power ITW4805SA is a reliable isolated DC/DC converter designed for industrial and electronic applications requiring a stable 5V DC output at a current of 200mA with a maximum power output of 1 watt. Its robust SIP through hole package supports a wide input voltage range from 36V DC minimum to 75V DC maximum, offering flexibility in diverse power supply environments.
Built to operate within a temperature range of -40°C to +105°C, the ITW4805SA ensures enduring performance in harsh industrial, manufacturing, and electronic device settings. Its isolation voltage of 1.5kV DC provides critical electrical safety by separating the input and output circuits.
This converter features an industry standard 6-pin pinout and a compact form factor of 17mm length, 7.62mm width, and 11mm depth, enabling easy integration onto printed circuit boards with through hole mounting. The device boasts a high mean time between failure (MTBF) of 2.8 million hours and an efficiency rating of 76%, promoting energy-efficient operation and long-term reliability.
The ITW4805SA is ideal for use in industrial equipment, power supply systems, electronic component assemblies, and instrumentation where isolated DC voltage conversion is needed. Its rugged design and quality manufacturing from Taiwan provide confidence in demanding applications.
Single output isolated converter with 1 watt maximum output power. Wide operating temperature range of -40°C to +105°C. Through hole SIP package with compact dimensions of 17mm x 7.62mm x 11mm. Input voltage ratio 2:1 supporting 36V to 75V DC input range.
Isolation voltage of 1.5kV DC for electrical safety. High MTBF of 2,800,000 hours ensuring reliability. 76% efficiency for energy-saving operation. Industry standard 6-pin pinout suitable for PCB through hole mounting. Manufactured in Taiwan, Province Of China.
Explore more DC/DC Converters from XP Power and related power supply products at EnvMart for your industrial and electronic power needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 1 watt.
It supports a wide input voltage range from 36V DC to 75V DC.
The efficiency of this converter is rated at 76%.
The dimensions are 17mm in length, 7.62mm in width, and 11mm in depth.
The isolation voltage is 1.5kV DC, ensuring electrical safety between input and output circuits.
It operates within a temperature range of -40°C to +105°C.
This model has a single output.
It features a through hole SIP package for mounting.
The MTBF for the ITW4805SA is 2,800,000 hours.
This converter has 6 pins, suitable for PCB mounting.
It is suitable for industrial equipment, power supply systems, electronic component assemblies, and instrumentation.
The input voltage ratio is 2:1, allowing flexibility in power supply environments.
