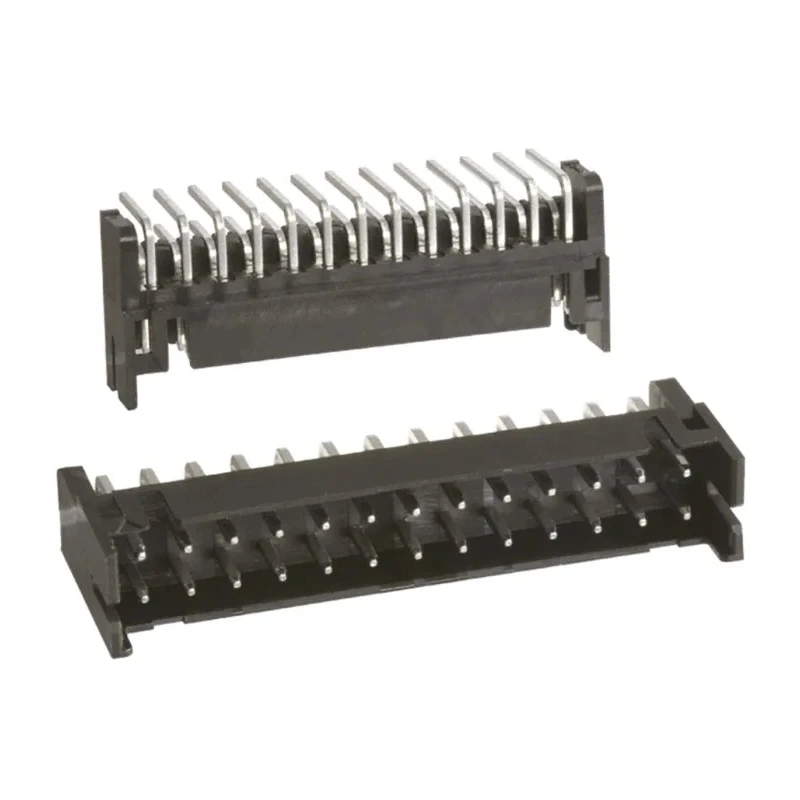

Hirose DF11 Series Right Angle Through Hole 26 Contacts 2 mm Pitch PCB Header Shrouded DF11
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- The compact double row design saves PCB space with a depth under 5 mm.
- Shrouded housing with guide ribs prevents incorrect insertion and twisting.
- The locking mechanism ensures a secure connection with the mating connector.
- Suitable for both board-to-board and wire-to-board applications.
- Constructed with polyamide housing and brass pins plated with tin for durability.
- Rated for 2A current and 250V voltage with solder termination.
- Operates reliably between -30°C and 85°C.
- The connector is designed for through hole mounting to the PCB.
Product Description
Hirose DF11 Series Right Angle Through Hole PCB Header model DF11 features 26 contacts arranged in a compact 2-row, 2 mm pitch configuration suitable for space-saving PCB designs. The connector’s polyamide housing is shrouded with four-wall protection and guide ribs to prevent mismating and twisting, ensuring reliable electrical performance. A locking mechanism facilitates secure mating with the corresponding connector housing, enhancing connection stability during operation.
The pins are made of brass with tin plating, supporting solder termination onto the PCB via through hole mounting. Rated for 2A current and 250V voltage, this PCB header operates efficiently within a temperature range from -30°C to 85°C. Its compact 5 mm depth allows it to occupy the same board space as single row connectors while enabling double-row contact arrangements.
This Hirose DF11 series connector is ideal for multiple signal wiring in applications including digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement instruments. It supports both board-to-board and wire-to-board connector systems, offering versatile application use cases.
Manufactured in Malaysia, the robust design incorporates metal fittings on SMT versions to improve PCB retention and reduce solder peeling, although this particular model is through hole mounted.
Compact, space-saving double row 26 contact design. Shrouded housing with guide ribs for proper alignment. Locking mechanism ensures secure connector mating. Suitable for board-to-board and wire-to-board applications. Brass contacts with tin plating ensure reliable conductivity.
Solder termination and through hole mount type. Operating temperature range -30°C to 85°C. Rated current 2A and voltage 250V. Robust four wall shrouded design with less than 5 mm depth.
Explore the comprehensive range of Hirose PCB Headers on EnvMart for high-quality electronic component solutions tailored to industrial and commercial electronics assembly and manufacturing.
