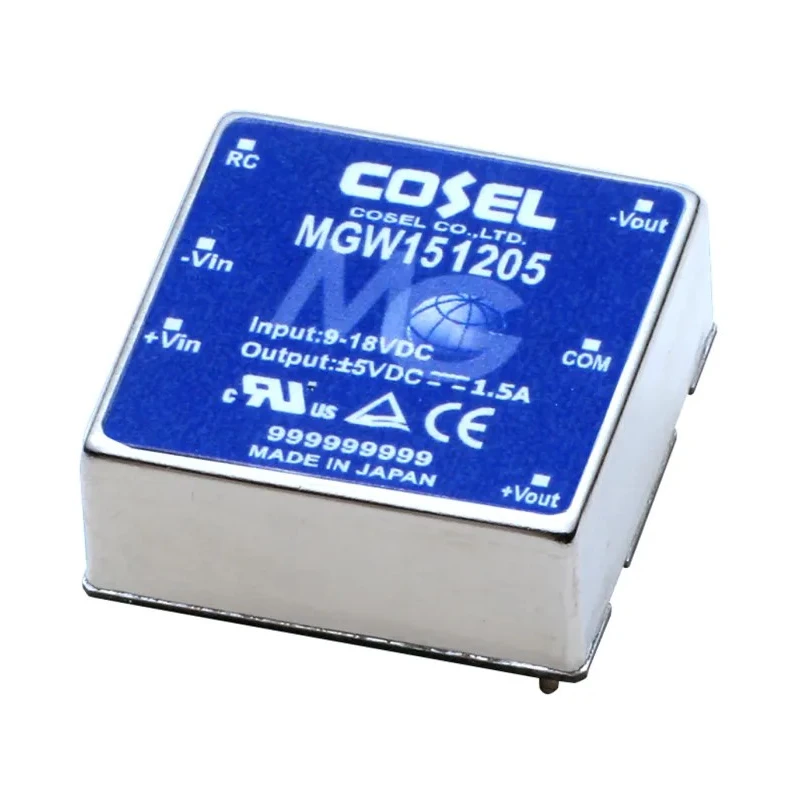

Cosel MGW DC/DC Converter, 5V DC and -5V DC Output, 1.5 A, 12V DC Input, 9V Minimum Input, 15W Power, PCB Mount MGW151205-R
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters Cosel MGW DC/DC Converter, 5V dc, -5 V dc/ 1 |
| Brand | Cosel |
| Efficiency | 84% |
| Length | 25.4mm |
| Model | MGW151205-R |
| Depth | 9.9mm |
| Gross Weight | 20g |
| Width | 9.9mm |
| Mount Type | PCB |
| Series | MGW |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 12V dc |
| Standards/Approvals | CE, cULus, EN 60950-1, TUV, UL 60950-1, cUL |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 5, -5V dc |
| Output Current 1 | 1.5A |
| Output Voltage Adjustment Range | 5.24 V |
| Isolation Voltage | 500V dc |
| High reliability | no built-in aluminium and tantalum electrolytic capacitor |
Key Features
- High efficiency rating of 84% reduces energy losses during operation.
- PCB mount type with DIP package ensures easy integration into electronic circuits.
- Supports a wide operating temperature range from -40 °C to 85 °C for reliable performance.
- Features 500V DC isolation voltage and low ripple noise of 150mV peak-to-peak.
- Includes built-in overvoltage, overcurrent protection, and an On/Off remote function for safety.
- Compact dimensions of 25.4mm length, 9.9mm width, and 9.9mm depth with a light weight of 20g.
- Compliant with international safety standards including CE, cULus, TUV, EN 60950-1, and UL 60950-1.
- Designed and manufactured in Japan, ensuring high quality and reliability.
Product Description
Cosel MGW151205-R DC/DC Converter is a highly reliable and efficient power supply component designed for use in electronics requiring dual output voltages of 5V DC and -5V DC with a current rating of 1.5A. It is optimized for a DC input voltage range from 9V to 12V, delivering a maximum output power of 15W, making it suitable for compact and sensitive electronic applications.
Equipped with a printed circuit board (PCB) mounting style and housed in a DIP package, this converter facilitates straightforward integration and installation in custom circuit boards. With a compact form factor measuring 25.4mm in length, 9.9mm in width and depth, and weighing only 20 grams, it is designed for space-constrained environments.
The MGW151205-R series features a high isolation voltage of 500V DC, which enhances safety and noise immunity. Its low ripple and noise rating of 150mV peak-to-peak ensures steady and clean power output, critical for sensitive electronics. The converter further incorporates built-in protections against overvoltage and overcurrent conditions, with automatic recovery to prevent damage.
The wide temperature range from -40 °C to 85 °C makes this converter suitable for varied industrial, laboratory, electronics manufacturing, and telecommunications environments. Additionally, the built-in remote On/Off function offers flexible control for advanced power management.
Certified by multiple international standards including CE, cULus, EN 60950-1, TUV, and UL 60950-1, the MGW151205-R guarantees compliance with safety and quality benchmarks. This unit is manufactured in Japan, reflecting Cosel's commitment to precision and durability.
High efficiency of 84% for reduced heat generation and energy savings. PCB mount DIP package with a small footprint ideal for embedded systems. Built-in overvoltage and overcurrent protections with automatic recovery. On/Off remote control functionality for enhanced power management.
Robust isolation voltage of 500V DC for safety assurance. Compliance with major safety certifications and standards. Wide operating temperature tolerance supporting harsh industrial conditions.
This DC/DC converter is ideal for use in industrial automation, telecommunications infrastructure, laboratory instrumentation, and other electronic equipment requiring stable dual output voltages. Its compact size, rugged design, and comprehensive protection features make it a dependable power solution for modern electronic designs.
Explore more high-quality power supply solutions and DC/DC Converters available at EnvMart to support your industrial and technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of 5V DC and -5V DC.
The maximum output power of the MGW151205-R is 15W.
It operates with a DC input voltage range from 9V to 12V.
The converter has a high efficiency rating of 84%, which reduces energy losses during operation.
This unit measures 25.4mm in length, 9.9mm in width, and 9.9mm in depth.
It is designed for PCB mounting and comes in a DIP package for easy integration.
The MGW151205-R features a robust isolation voltage of 500V DC.
It supports a wide operating temperature range from -40 °C to 85 °C.
This converter includes built-in overvoltage and overcurrent protections with automatic recovery.
It is compliant with multiple international safety standards including CE, cULus, TUV, and UL 60950-1.
The ripple and noise rating is 150mV peak-to-peak, ensuring a steady power output.
This model has two outputs, providing both 5V DC and -5V DC.
