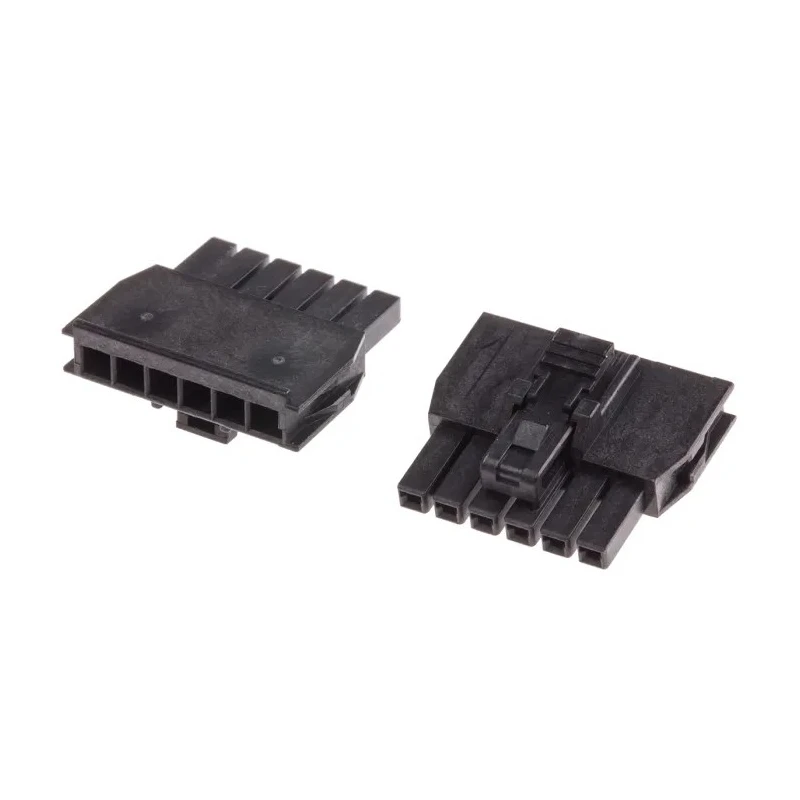

Molex Nano-Fit Female Connector Housing 2.5 mm Pitch 6 Way 1 Row Straight 105307-1206

The Molex 105307-1206 Nano-Fit Female Connector Housing is engineered with a compact 2.5 mm pitch to provide reliable wire-to-board connections in industrial and electronic applications. This connector housing supports six contacts arranged in a single straight row, featuring positive locking latches with an anti-snag design for secure mating and protection against accidental disengagement caused by shock, vibration, or cable strain.

Constructed from a robust nylon housing, the design ensures full electrical isolation of the crimp terminals, preventing arcing and damage during handling and mating. This safeguard also minimizes potential short circuits caused by debris. The connector system offers audible clicks and tactile feedback to confirm proper mating and to prevent mistakes during installation.

Polarization and keying features further ensure accurate alignment, enhancing reliability in environments with high vibration or movement. The connector housing is optimized for use with Molex 105300 Nano-Fit Crimp Terminals and 105325 Nano-Fit Terminal Position Assurance (TPA) retainers, sold separately, which improve terminal security within the housing.

This product finds applications across diverse industries including automotive interior appliances, telecommunications networking devices, consumer home appliances such as refrigerators and washers, lighting systems, aerospace and defense C4ISR platforms, food and beverage industrial equipment, and medical patient care apparatus.

Compact size saves PCB space while maintaining optimum current density. Positive locking and anti-snag design improves connection integrity and durability. Full crimp terminal isolation for electrical safety and enhanced handling robustness.

Audible and tactile feedback reduces mis-mating risks during assembly. Polarization and keying features aid installation accuracy and prevent misalignment. Compatible with Molex Nano-Fit series terminals and retainers for flexible modularity.

Suitable for demanding environments across automotive, consumer, industrial, aerospace, and medical sectors.

The Molex Nano-Fit series stands out for its excellent balance of size, performance, and reliability within the power connector category. Browse EnvMart's range of Molex Connector Housings to find complementary accessories and crimp terminals for your design or repair needs.
