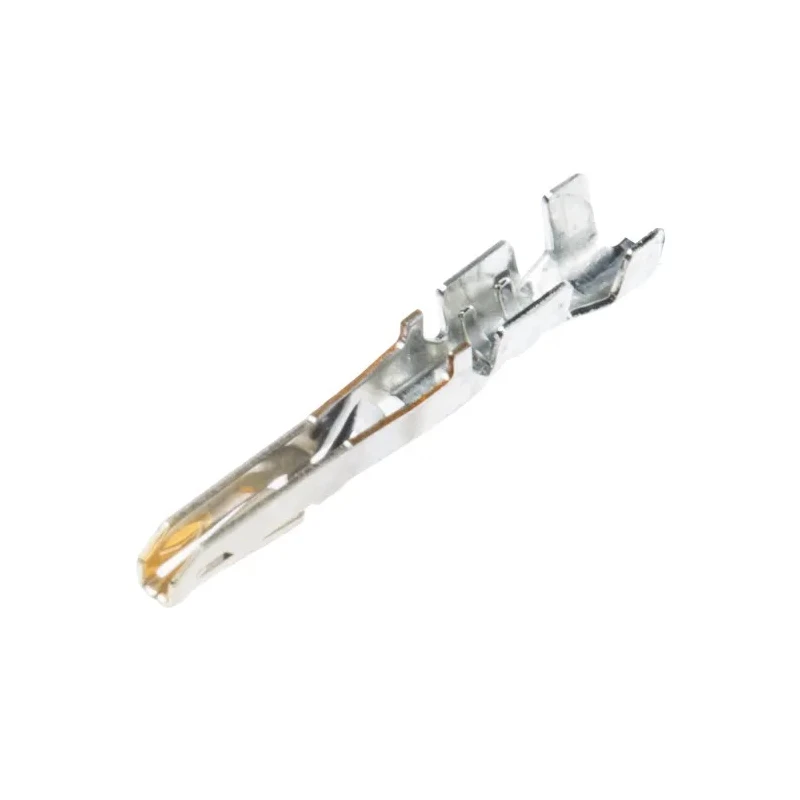

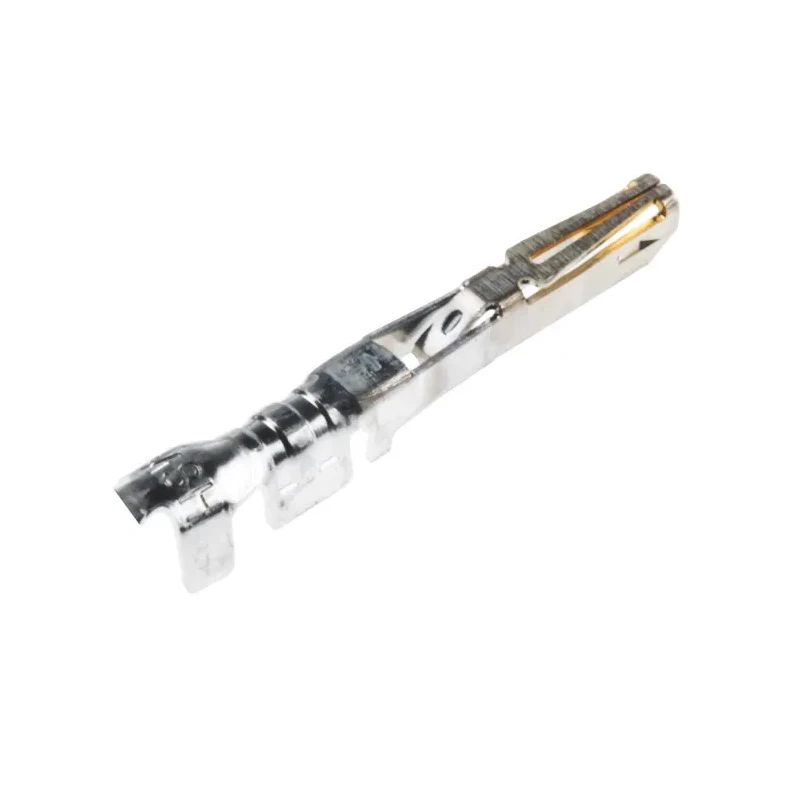

Molex 105300 Series Female Crimp Terminal 8A Current 22 AWG to 20 AWG 105300-2200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Current | 8A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | 105300 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Nano-Fit Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Fits Nano-Fit connector housing for low insertion force and easy assembly.
- Gold-plated copper alloy contacts provide corrosion resistance and improved conductivity.
- Supports wire sizes from 0.3 to 0.5 mm² suitable for precise electronic connections.
- Operates reliably between -40°C and 105°C for diverse environmental conditions.
- Compression fit design ensures quick and secure wire termination with minimal operator fatigue.
- Four-point contact interface for redundant current paths enhancing reliability and performance.
- Retention tangs and contact ribs stabilize contact within the connector housing.
- Manufactured in China under Molex's 105300 series for Nano-Fit 2.5 mm systems.
Product Description
The Molex 105300-2200 is a female crimp terminal designed for use in Nano-Fit connector housings, supporting wire sizes from 22 AWG minimum to 20 AWG maximum, with a current rating of 8 amperes and gold-plated copper alloy contacts to ensure robust electrical performance and resistance to corrosion. This product offers a compression fit terminal that allows for fast, reliable wire terminations, minimizing assembly time and reducing component wear due to the low insertion force required when mating with the connector housing.
Operating temperature ranges from -40°C to 105°C, making it suitable for use in a variety of industrial and commercial applications including aerospace, automotive workshops, medical equipment, and production assembly lines. The terminal features a four-point contact interface which provides multiple current paths to maintain electrical continuity even if one contact point degrades, enhancing long-term reliability and performance.
Retention tangs and contact ribs within the design maintain stable contact pressure, and the ultra-low mating force helps decrease operator fatigue during repetitive installations. The product is part of Molex's 105300 series Nano-Fit 2.5 mm wire to board connector system, widely recognized for industrial and electronic component assembly.
Fits into Nano-Fit 2.5 mm connector housings with secure and stable electrical connections. Gold plating and copper alloy ensure excellent conductivity and durability. Supports wire size range between 0.3 mm² and 0.5 mm².
High current rating of 8A suitable for demanding electronic applications. Wide operating temperature range for various industrial environments. Four contact points enhance current capacity and reliability. Compression fit simplifies wire termination.
Retention features maintain contact stability and reduce wear.
This terminal is ideal for industrial, laboratory, manufacturing, commercial, and automotive electronics applications where reliable crimp contacts are essential. It is manufactured in China following Molex quality standards. For further selections in Crimp Contacts, please explore EnvMart's extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this terminal is 8 amperes.
It supports wire sizes from 22 AWG (0.3 mm²) to 20 AWG (0.5 mm²).
The operating temperature range is from -40°C to 105°C.
The contacts are made from gold-plated copper alloy, which provides corrosion resistance and improved conductivity.
The compression fit design allows for quick and secure wire termination, minimizing operator fatigue during repetitive installations.
It is designed for use with Nano-Fit connector housings.
It features a four-point contact interface that provides redundant current paths, enhancing reliability and performance.
Retention tangs and contact ribs stabilize the contact within the connector housing, maintaining stable contact pressure.
The maximum contact resistance is 10 milliohms.
It is suitable for industrial, laboratory, manufacturing, commercial, and automotive electronics applications.
It is manufactured in China under Molex's quality standards.
