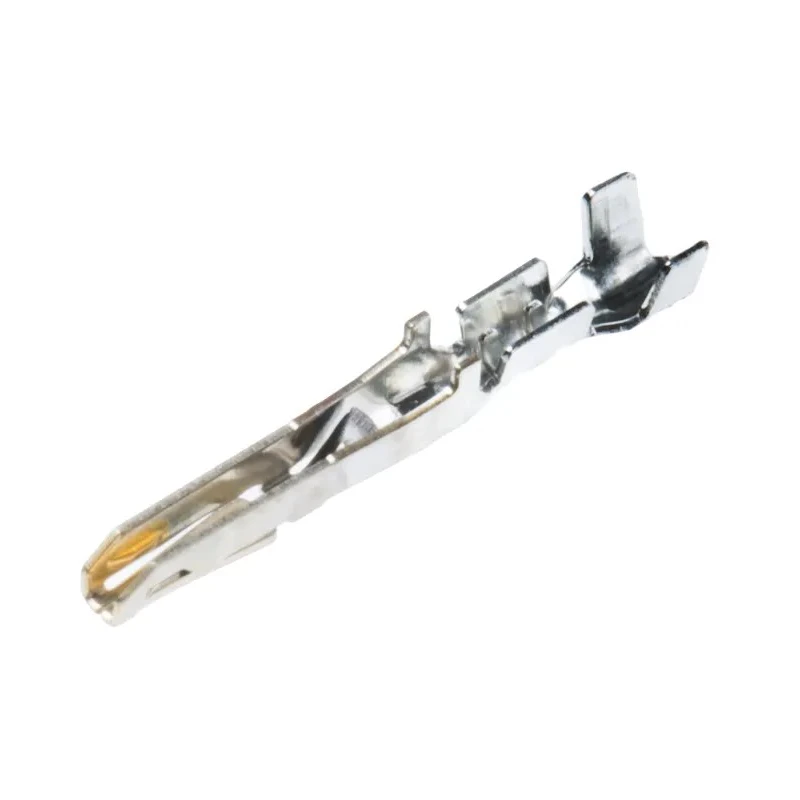

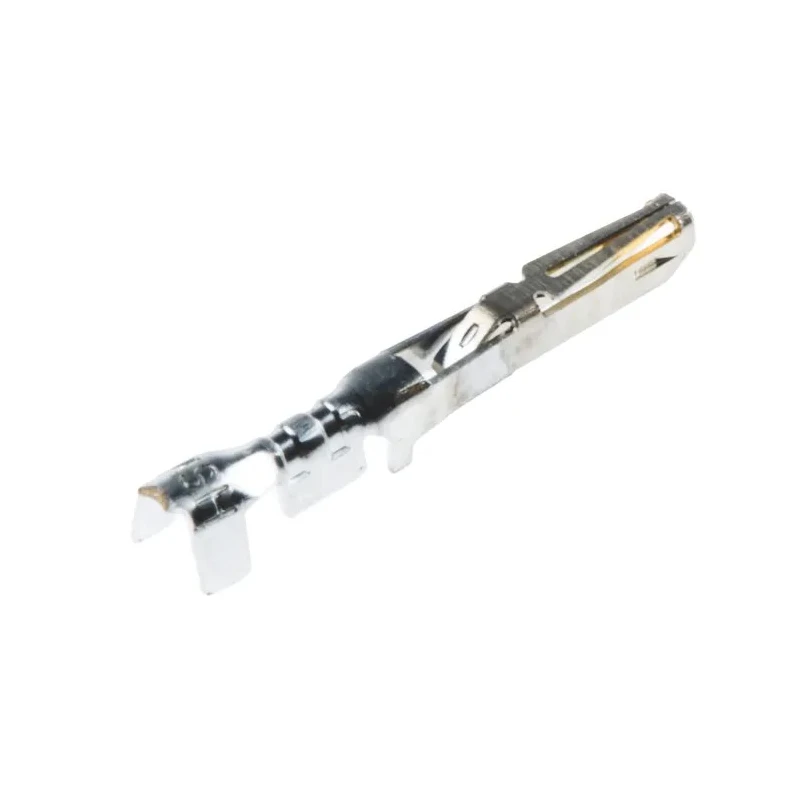

Molex 105300 Series Female Crimp Terminal 6A Current Nano-Fit Connector Housing 26 AWG Min Crimp 24 AWG Max Gold 105300-1200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Current | 6A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | 105300 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Nano-Fit Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- The terminal features gold-plated contacts to ensure maximum electrical conductivity and durability.
- Constructed with copper alloy contact material for reliable electrical performance.
- Designed with four-point interface contact to provide redundant current paths for enhanced reliability and lifespan.
- It has a low mating force of 3N to reduce operator fatigue during assembly.
- The terminal is insulated with a flame-retardant housing to reduce fire risk and is halogen-free for minimal toxic fume emissions.
- Retention tangs and contact ribs provide a stable, dependable connection in Nano-Fit connector systems.
- Operates efficiently within a temperature range of -40°C to 105°C for demanding industrial applications.
- Suitable for use in aerospace, medical, industrial networking, and lighting system applications.
Product Description
Molex 105300-1200 female crimp terminal is a high-quality component designed for electrical connectors in demanding industrial environments. It suits Nano-Fit connector housings and supports wire sizes ranging from 26 AWG minimum to 24 AWG maximum. Rated for a nominal current of 6A, this terminal features copper alloy contacts plated with gold to ensure low resistance and excellent conductivity.
The terminal's unique four-point contact interface provides redundant current paths, enhancing reliability and extending the product lifespan, even if one contact point degrades. Its low mating force of 3N reduces operator fatigue and improves assembly efficiency. This unit also includes retention tangs and contact ribs that ensure stable connections in Nano-Fit 2.5 mm crimp receptacle housings.
The flame-retardant housing reduces the risk of fire propagation, and the halogen-free materials mean minimal toxic fumes if heated. The insulation offers a minimum resistance of 1,000 mΩ, providing protection against electric shock. Operating temperature range from -40°C up to 105°C allows use in harsh environments.
This product complies with the ELV Directive 2000/53/EC and RoHS Directive 2011/65/EU environmental standards, meeting safety and sustainability requirements. It is commonly deployed across aerospace, hospital medical equipment, industrial networking hubs, and lighting systems where reliable electrical connectivity is critical.
The terminal uses gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance. Four-point redundant contact design for longevity and reliability. Low mating force minimizes assembly operator fatigue.
Flame-retardant and halogen-free housing materials improve safety. Operates effectively in a broad temperature range from -40°C to 105°C. Retention tangs and ribs secure stable connector engagement. Compatible with Nano-Fit 2.5 mm crimp receptacle housings (series 105307 and 105308).
Meets key industry directives including ELV and RoHS. Explore more precision electronics components like crimp terminals and connectors to optimize your industrial and manufacturing electrical projects with EnvMart.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is rated for a nominal current of 6A.
It supports wire sizes ranging from 26 AWG minimum to 24 AWG maximum.
The terminal features copper alloy contacts that are gold plated to ensure low resistance and excellent conductivity.
It operates efficiently within a temperature range of -40°C to 105°C.
The four-point contact design provides redundant current paths, enhancing reliability and extending the product lifespan even if one contact point degrades.
This terminal is designed for use with Nano-Fit connector housings.
It has a flame-retardant housing and is halogen-free, which reduces fire risk and minimizes toxic fume emissions if heated.
The insulation offers a minimum resistance of 1,000 mΩ, providing protection against electric shock.
It has a low mating force of 3N, which helps reduce operator fatigue during assembly.
The maximum contact resistance is 10mΩ.
It is commonly used in aerospace, medical equipment, industrial networking, and lighting systems where reliable electrical connectivity is critical.
It complies with the ELV Directive 2000/53/EC and RoHS Directive 2011/65/EU environmental standards.
