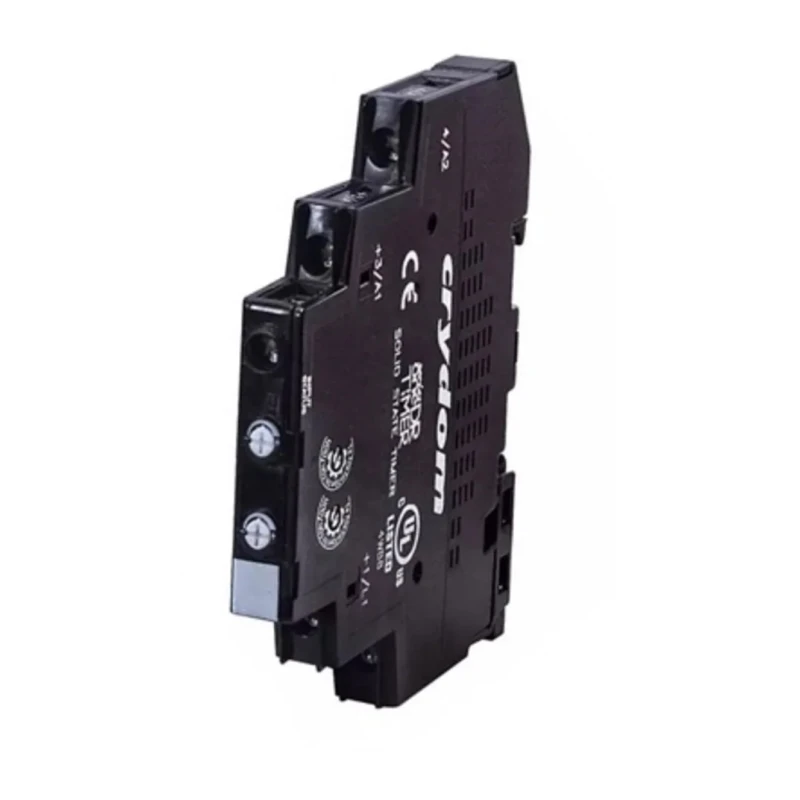

Crydom OneDR Series DIN Rail Timer Relay, 2-Contact, SPST, 180 to 280 V DC, 12 V AC, 24 V AC, 0.1 s to 100 h DRTC24D06

Crydom DRTC24D06 OneDR Series DIN Rail Timer Relay is a highly versatile solid state timer relay designed for industrial applications demanding precise time delay control. It supports a time range from 0.1 seconds up to 100 hours, offering adjustable multifunction timing ability. The relay features 2 contacts configured as SPST for switching reliability and compact design with only 11 mm width for easy DIN rail mounting.

Operating on supply voltages between 180 and 280 V DC and also supporting 12 and 24 V AC supplies, this relay accommodates a wide range of control voltages. It features a screw terminal type connection to ensure secure and stable electrical contacts in demanding environments.

The operating temperature range of -30°C to 80°C suits harsh industrial environments, while compliance with IEC 61000-4-4, IEC 61000-4-2, IEC 62314, IEC 60068-2-6, IEC 60068-2-27 standards and UL listing guarantees safety, electromagnetic compatibility, and durability.

This timer relay employs an OFF Delay mode with multifunction control and includes a unique integrated heat sink design alongside an LED status indicator to enhance operational reliability and ease of status monitoring. Physical dimensions of 87.7 mm length, 83 mm height, and 11 mm width allow for space-efficient installation in electrical panels and automation assemblies.

Typical applications include industrial automation, electrical control systems, signal conditioning, and timing functions where precise and flexible time delay control is required. The OneDR Series provides dependable, high-performance timing solutions for manufacturing, HVAC controls, water treatment systems, and general industrial equipment.

Compact DIN rail mount solid state Timer Relay. Wide time range programmable from 0.1 s to 100 h. 2 contacts with SPST configuration. Supports 180-280 V DC and 12 V/24 V AC supply voltages. Screw terminal connections for reliability.

Operational temperature -30°C to 80°C with industrial standard approvals. LED status indicator and integrated heat sink design. Length 87.7 mm, height 83 mm, width 11 mm. Suitable for industrial automation and electrical timing applications.
