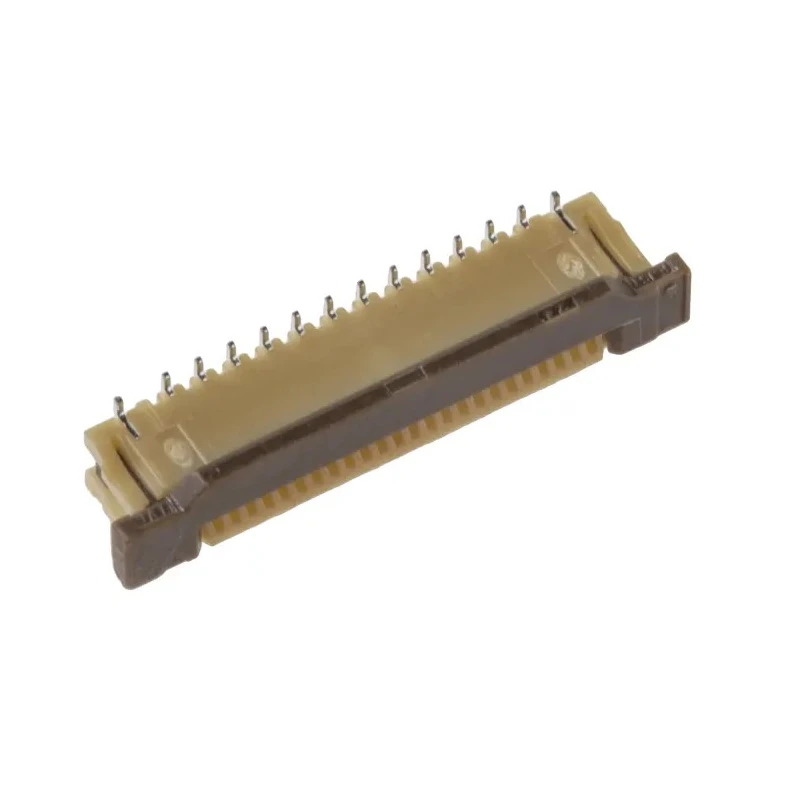

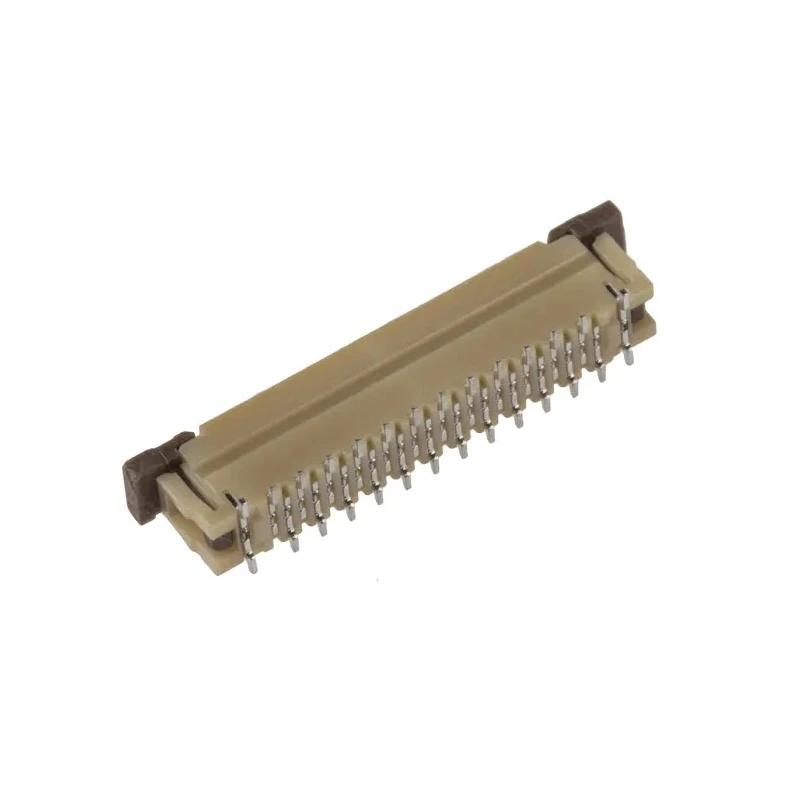

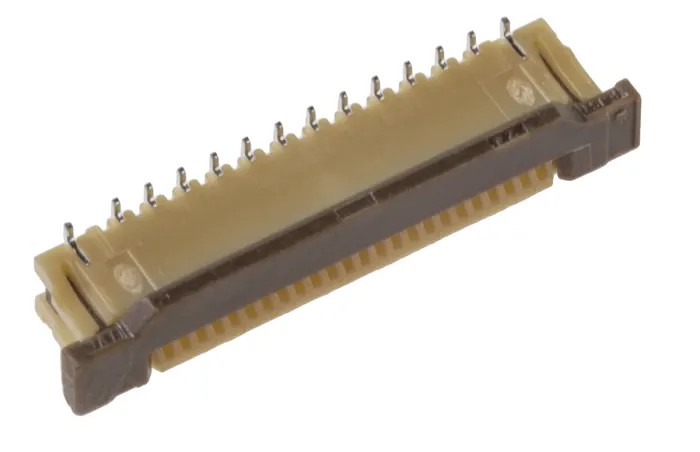

JST FLZ 0.5 mm Pitch 24 Way Straight Female FPC Connector, Solder 24FLZT-SM1-TF
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50, 50V ac |
| Brand | JST |
| Orientation | Straight |
| Current | 500mA |
| Model | 24FLZT-SM1-TF |
| Mount Type | Surface |
| Housing Material | Polyamide 6T |
| Contact Material | Phosphor Bronze |
| Series | FLZ |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- Designed with 24 contacts made of phosphor bronze for durability.
- Features a zero insertion force (ZIF) mechanism to reduce wear and extend connector life.
- Connector housing is made of heat resistant Polyamide 6T thermoplastic, compatible with SMT reflow soldering.
- Supports operating temperature range from -25°C to 85°C for versatile applications.
- Offers a locking mechanism for secure connection and 50V AC voltage rating.
- Available in a straight orientation with top contact position for easy installation.
- Featuring tin plating on contacts to ensure corrosion resistance.
- Compatible with Easy-On FFC/FPC cables with both normal and reverse configurations.
Product Description
JST 24FLZT-SM1-TF 24 Way Straight Female FPC Connector is engineered for precision electronic applications, featuring a 0.5 mm pitch and solder termination that ensures optimal electrical contact and mechanical stability.
This connector incorporates a zero insertion force (ZIF) mechanism, greatly enhancing durability by minimizing wear during repeated insertions and removals. The housing is constructed from heat resistant Polyamide 6T thermoplastic, making it suitable for surface mount technology (SMT) reflow soldering processes.
Capable of operating within a temperature range from -25°C to 85°C and rated for 50V AC, it suits a wide spectrum of industrial, laboratory, and commercial electronic assemblies.
With 24 phosphor bronze contacts plated with tin, the connector assures excellent conductivity and resistance to corrosion. The straight, top-contact orientation and inclusion of a locking mechanism offer secure and straightforward connectivity with compatible FFC cables.
Manufactured in Japan, this connector meets stringent quality standards. Its flexible design supports both normal and reverse FPC configurations, increasing design adaptability for PCB layouts.
Designed with 24 contacts made of phosphor bronze for durability. Features a zero insertion force (ZIF) mechanism to reduce wear and extend connector life. Connector housing is made of heat resistant Polyamide 6T thermoplastic, compatible with SMT reflow soldering.
Supports operating temperature range from -25°C to 85°C for versatile applications. Offers a locking mechanism for secure connection and 50V AC voltage rating. Available in a straight orientation with top contact position for easy installation.
Featuring tin plating on contacts to ensure corrosion resistance. Compatible with Easy-On FFC/FPC cables with both normal and reverse configurations. Manufactured in Japan ensuring high quality and reliability. Ideal for electronic assemblies requiring compact and robust FPC connectors.
This JST FPC Connector is well suited for electronic manufacturing, prototyping, and repair tasks, particularly in industrial, laboratory, and commercial environments requiring reliable high-density connections.
Explore the wide range of JST connectors and related electronic components on EnvMart for your next project or facility upgrade.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JST FLZ 0.5 mm Pitch 24 Way Straight Female FPC Connector has a voltage rating of 50V AC.
This connector supports an operating temperature range from -25°C to 85°C.
The housing is made of heat-resistant Polyamide 6T thermoplastic, and the contacts are made of phosphor bronze with tin plating.
It features 24 contacts, all designed for female connections.
This model uses solder termination for optimal electrical contact and mechanical stability.
It features a zero insertion force (ZIF) mechanism, which minimizes wear during repeated insertions and removals.
This connector is designed for surface mount technology (SMT).
The connector is available in a straight orientation with a top contact position.
This model supports a current rating of 500mA.
Yes, it is compatible with Easy-On FFC/FPC cables in both normal and reverse configurations.
This connector is manufactured in Japan, ensuring high quality and reliability.
It is well suited for electronic manufacturing, prototyping, and repair tasks in industrial, laboratory, and commercial environments.
