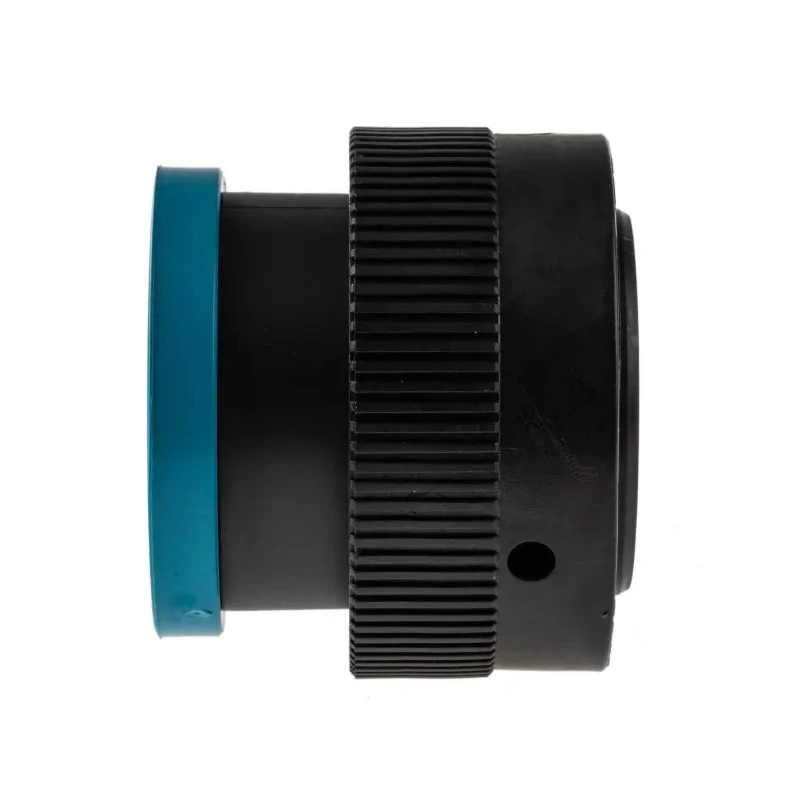

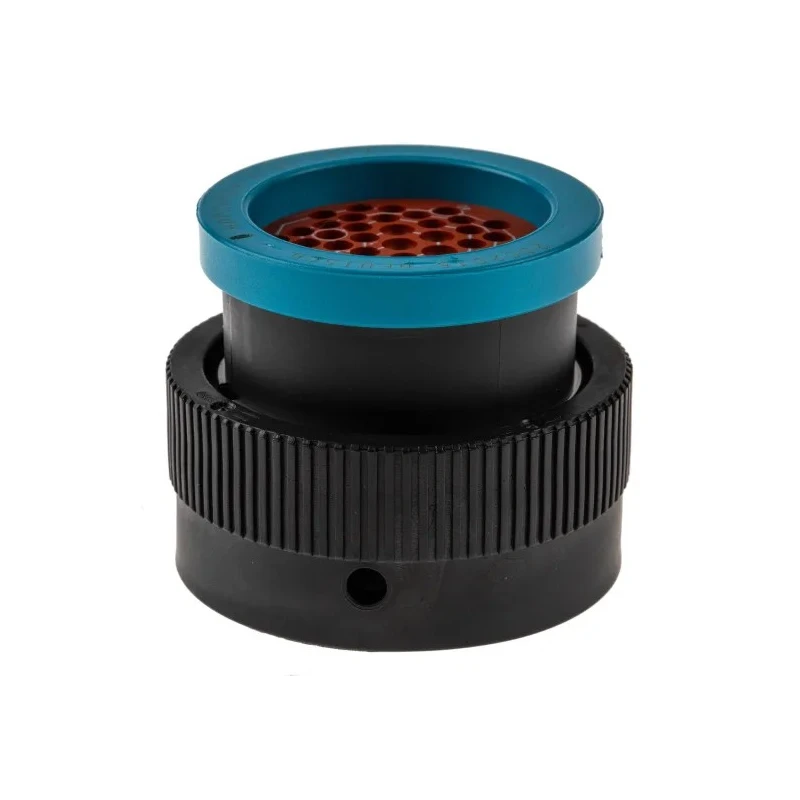

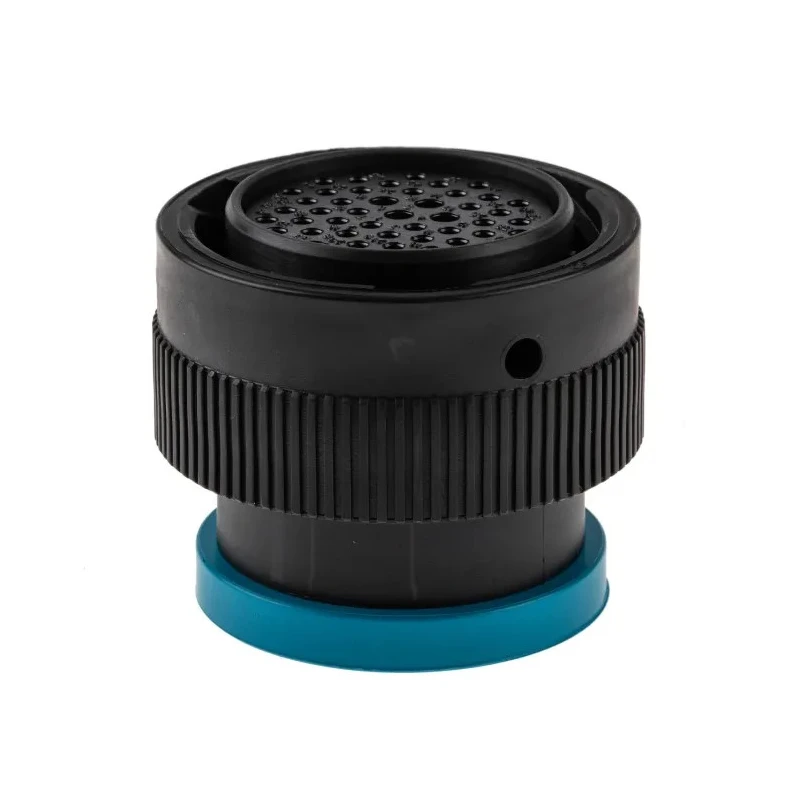

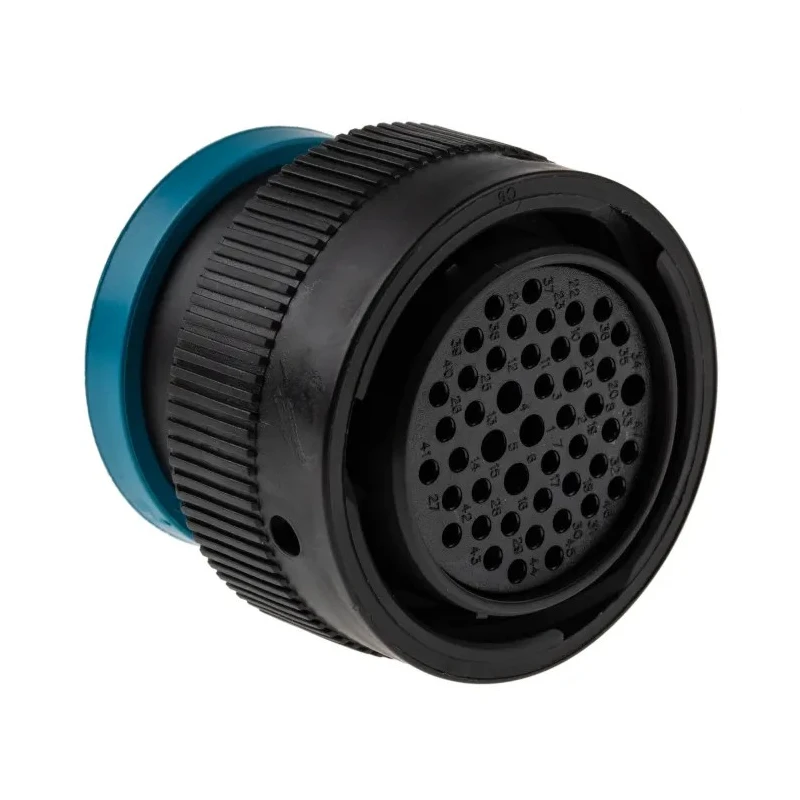

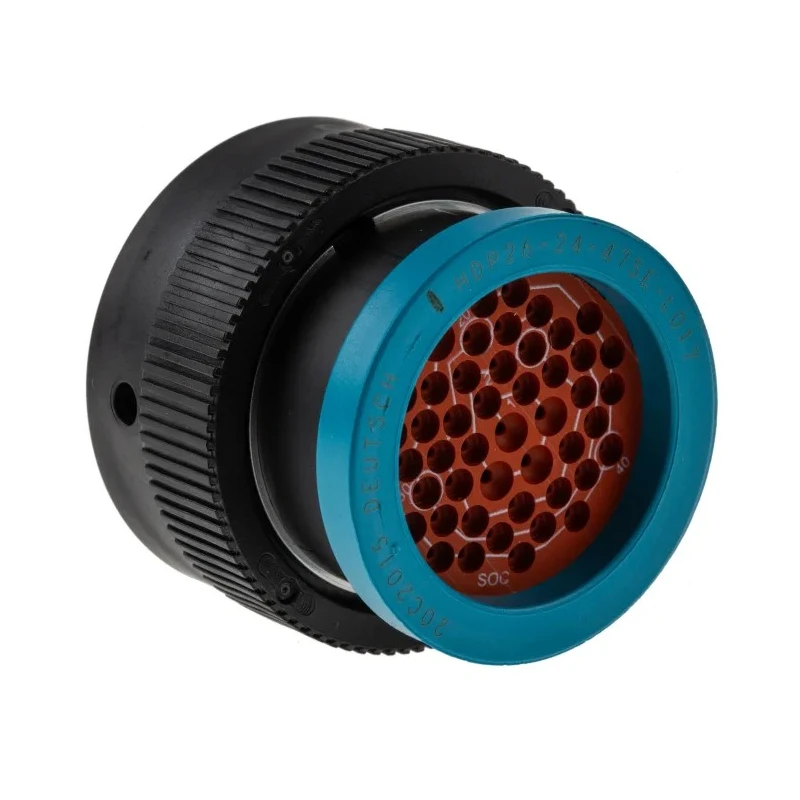

Deutsch Industrial Circular Connector, Cable Mount, 47 Contacts, 1.59 mm Plug Female, IP67, 250V, 13A HDP26-24-47SE-L017
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Deutsch |
| Orientation | Straight |
| Current | 13A |
| Model | HDP26-24-47SE-L017 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | HD20 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 47 |
| Contact Plating | Nickel |
| Number of Contacts | 47 |
| Contact Gender | Female |
| Shell Size | 24 |
| Mating Type | Bayonet |
| Connector Size | 1.59 mm |
| Plug/Socket | Plug |
Key Features
- Constructed for heavy-duty industrial use with thermoplastic housing.
- Sealed to IP67 protection for durability in harsh environments.
- Supports operating temperatures from -55°C to 125°C.
- Contacts are copper with nickel plating for corrosion resistance.
- Designed for crimp termination ensuring secure connections.
- Offers vibration resistance up to 20g at 10-2000 Hz.
- Capable of 100 minimum mating cycles for long-lasting performance.
- Includes 24 shell size and straight orientation for cable plug applications.
Product Description
Deutsch HDP26-24-47SE-L017 is an industrial circular connector plug designed for cable mounting applications. Featuring 47 female contacts with a 1.59 mm connector size, this connector belongs to the HD20 series and supports a voltage rating of 250V and a current rating of 13A. The connector’s housing is made of durable thermoplastic material with a crimp termination type.
Engineered for harsh industrial environments, the connector is sealed to IP67 standards, ensuring dust-tight and immersion protection. It operates reliably across a wide temperature range from -55°C minimum to 125°C maximum. The contact material is copper with nickel plating, providing corrosion resistance and stable electrical contact performance. The mating type is bayonet, delivering quick and secure connection cycles.
This Deutsch connector resists vibration loads up to 20g at frequencies between 10 and 2000 Hz and is rated for a minimum of 100 mating cycles, ensuring durability and longevity in demanding industrial applications. The straight orientation and 24 shell size make it suitable for various cable plug configurations within the HD20 series lineup.
Heavy-duty thermoplastic housing for robust industrial application. IP67 sealed for protection against dust and water ingress. Wide temperature range from -55°C to 125°C supports diverse environments. Corrosion resistant contacts plated with nickel over copper base.
Bayonet mating type ensures secure and quick coupling. Designed to withstand vibration up to 20g at 10-2000 Hz. Minimum 100 mating cycles for extended connector life. Compatible with HD20 series connector accessories and tools.
This connector is ideal for use in industrial automation, machinery, transportation, and other heavy-duty electrical power and signal applications. For more Deutsch connectors and accessories, navigate the Industrial Circular Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Deutsch HDP26-24-47SE-L017 connector has a voltage rating of 250V and a current rating of 13A.
This connector is sealed to IP67 standards, providing protection against dust and immersion in water.
The housing is made of thermoplastic, and the contacts are copper with nickel plating for corrosion resistance.
It operates reliably within a temperature range of -55°C to 125°C.
This connector features 47 female contacts.
The Deutsch connector utilizes a crimp termination type, ensuring secure connections.
It uses a bayonet mating type, allowing for quick and secure coupling.
This model has a shell size of 24 and a straight orientation.
It is rated for a minimum of 100 mating cycles, ensuring durability in use.
This connector is ideal for industrial automation, machinery, transportation, and other heavy-duty electrical power and signal applications.
It can withstand vibration loads up to 20g at frequencies between 10 and 2000 Hz.
The country of origin for this connector is India.
