JST FLZ 0.5 mm Pitch 20 Way Straight Female FPC Connector, Solder 20FLZT-SM1-TF

Free Delivery in India | Lowest Global Shipping Charges

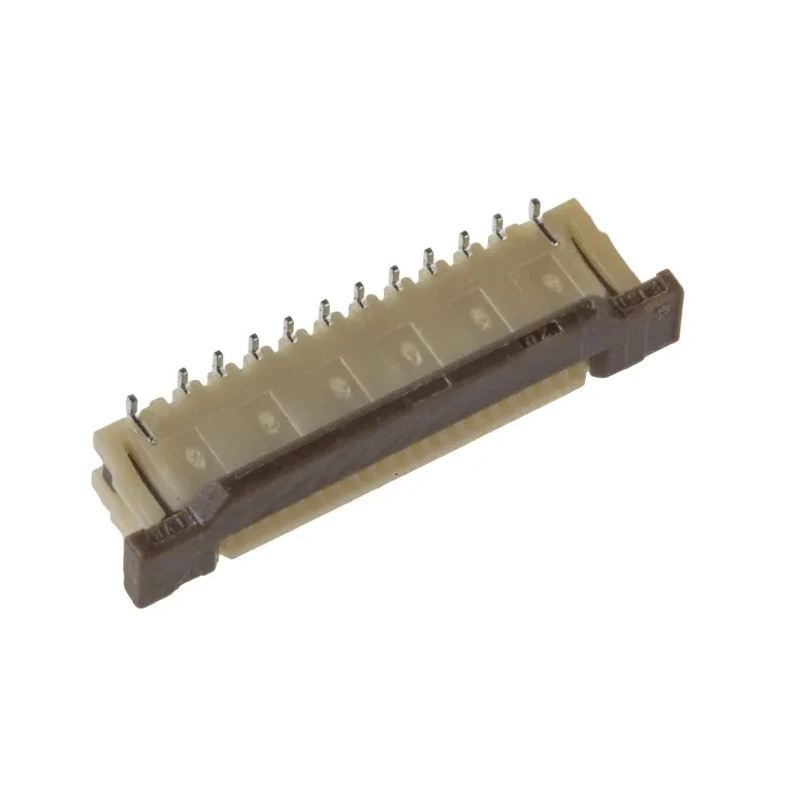

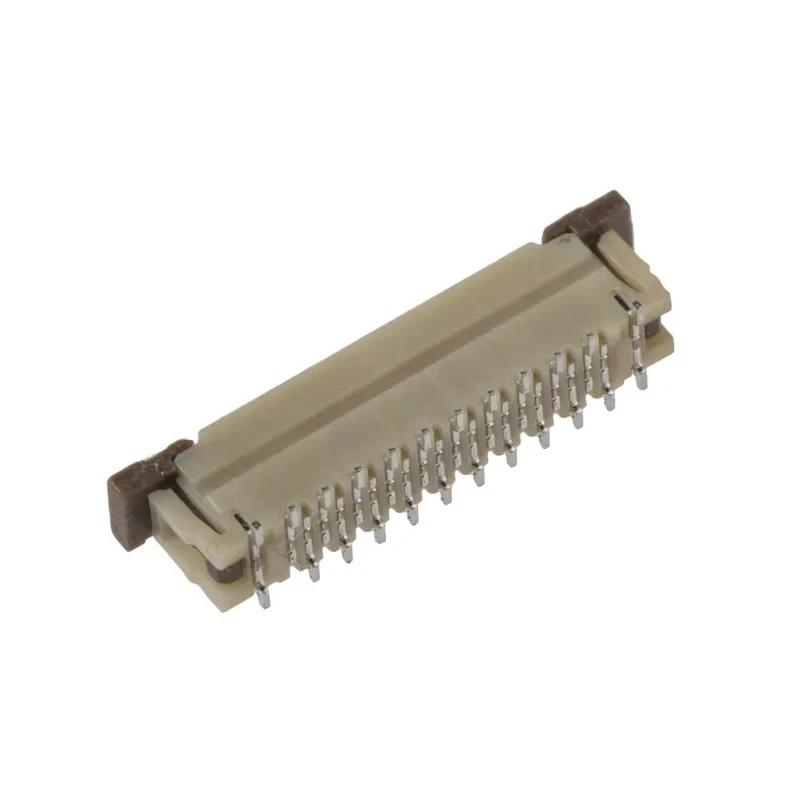

JST FLZ 0.5 mm Pitch 20 Way Straight Female FPC Connector, Solder 20FLZT-SM1-TF



Category FPC Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	50, 50V ac
Brand	JST
Orientation	Straight
Current	500mA
Model	20FLZT-SM1-TF
Mount Type	Surface
Housing Material	Polyamide 6T
Contact Material	Phosphor Bronze
Series	FLZ
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Easy-On FFC/FPC Connector
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	0.5mm
Contact Plating	Tin
Number of Contacts	20
Contact Gender	Female
Connector Gender	Female
Insertion Force	ZIF
Contact Position	Top

Key Features

Features a zero insertion force (ZIF) mechanism for increased wear resistance.
Constructed with heat resistant polyamide 6T housing suitable for SMT reflow soldering.
Contact material is phosphor bronze with tin plating for reliable conductivity.
Supports current up to 500mA and voltage rating of 50V AC.
Operates within temperature range of -25°C to 85°C.
Connector orientation is straight with top contact position for FPC attachment.
Includes a locking mechanism for secure connection.
Designed as part of the FLZ series with staggered solder tails for flexibility.

Product Description

JST 20FLZT-SM1-TF FLZ 0.5 mm Pitch 20 Way Straight Female FPC Connector, Solder termination type, is engineered for high reliability in electronic component assembly and PCB connectivity.

This connector features a zero insertion force (ZIF) mechanism, which reduces wear and extends connector lifespan through easy FPC insertion and removal.

The housing is made from heat resistant polyamide 6T, making it suitable for SMT reflow soldering processes. The FLZ series connectors incorporate staggered solder tails that provide stable mechanical and electrical connections.

Constructed with phosphor bronze contacts plated in tin, this connector supports 500mA current and 50V ac voltage. It operates effectively across a wide temperature range from -25°C to 85°C, suitable for demanding industrial and commercial electronic applications.

The straight female contact orientation with top contact position is designed to fit FPC cables with ease, while the locking mechanism ensures secure and vibration-resistant connections.

Available in configurations supporting normal and reverse FPC mating surfaces, providing flexibility in PCB design and assembly choices.

Manufactured in Japan, this JST connector meets quality and reliability expectations required in electronics manufacturing, telecommunications, consumer electronics, industrial controls, and automotive electronics sectors.

Features a zero insertion force (ZIF) mechanism for enhanced connector life. Heat resistant polyamide 6T housing compatible with SMT reflow soldering. Phosphor bronze contacts plated with tin for corrosion resistance and conductivity.

Supports 500mA current and 50V AC voltage ratings. Operates between -25°C and 85°C temperature range for varied environment suitability. Straight orientation with top contact placement for ease of FPC integration. Equipped with locking mechanism for secure mechanical retention.

Part of FLZ series with staggered solder tails for design flexibility. Available in both normal and reverse FPC configurations. Manufactured in Japan assuring industrial-grade quality. Suitable for integration in electronic components manufacturing, PCB assembly, telecommunications, industrial controls, and consumer electronics applications.

Explore a wide range of JST connectors and related items at EnvMart for dependable electronic connectivity solutions.
