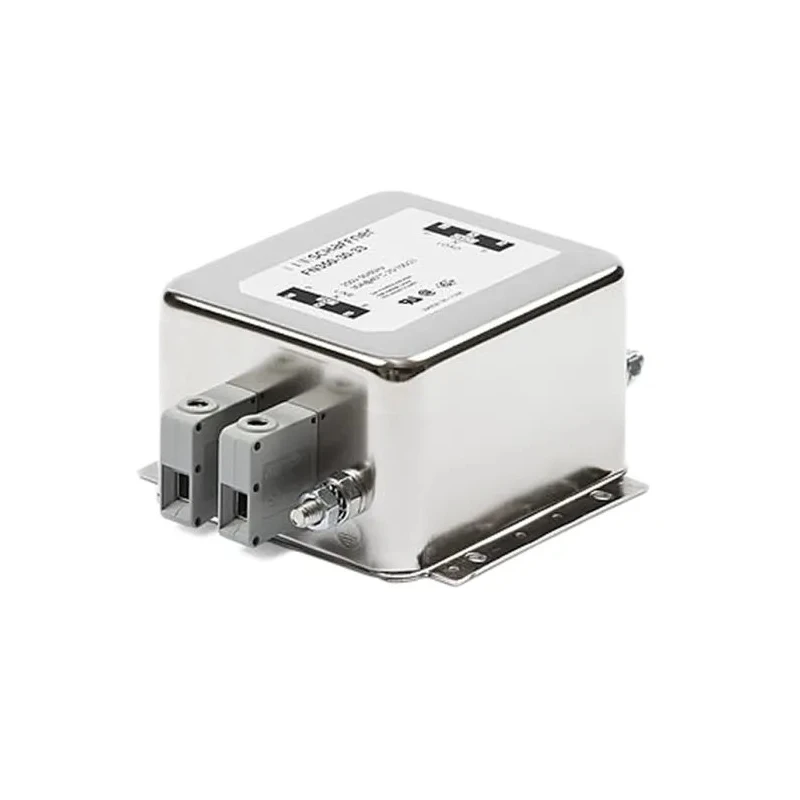

Schaffner Chassis Mount EMC Filter 8A 250V AC 400Hz Terminal Block Single Phase FN350

Free Delivery in India | Lowest Global Shipping Charges

Schaffner Chassis Mount EMC Filter 8A 250V AC 400Hz Terminal Block Single Phase FN350

Name: Schaffner Chassis Mount EMC Filter 8A 250V AC 400Hz Terminal Block Single Phase FN350
Brand: Schaffner
SKU: 187807
Price: 186.27 USD
Availability: InStock



Category Terminal Block Brand Schaffner Condition New

Specifications

Country of Origin	India
Brand	Schaffner
Height	57mm
Length	105mm
Model	FN350
Depth	138.5mm
Mount Type	Chassis Mount
Operating Frequency	400Hz
Series	FN350
Maximum Operating Temperature	100°C
Number Of Stages	1
Minimum Operating Temperature	-25°C
Maximum Current	8A
Number of Phases	1
Leakage Current	4.9mA
Maximum Voltage	250V ac
Termination Style	Terminal Block
Power Loss	5.2W
Schaffner, FN 682 6.5A 250 V ac 400Hz, Flange Mount RFI Filter, TabBrand	Schaffner

Key Features

The filter is designed for automotive and industrial motor drive applications.
It features high component values for both common and differential mode attenuation at low frequencies.
The chassis mount design facilitates secure fixing in electronic assemblies.
Operates within a temperature range of -25°C to 100°C for versatile environmental use.
Leakage current is rated at 4.9mA ensuring compliance with safety standards.
Compact size with dimensions of 105mm length, 57mm height, and 138.5mm depth.
Power loss is minimal at 5.2W, promoting energy efficiency.
Complies with IEC 60950 and EN55011/14/22 standards for EMI performance.

Product Description

Schaffner FN350 is a high-quality chassis mount EMC filter designed for use in single-phase motor drive applications operating at 8 amperes, 250 volts AC, and 400Hz frequency. The compact filter provides robust electromagnetic compatibility by effectively suppressing conducted and radiated emissions.

This single-stage filter employs industrial-grade safety terminal blocks, which enable secure and fast installation. Its high component values target both common mode and differential mode noise suppression particularly in the lower frequency spectrum, rendering it suitable for numerous industrial environments.

Operating reliably within a temperature range from -25°C to 100°C, the filter supports varied environmental conditions often encountered in automation and electrical equipment sectors. The leakage current rated at 4.9mA is optimized to meet stringent safety compliance requirements.

Dimensionally, the device measures 105mm in length, 57mm in height, and 138.5mm in depth, facilitating ease of integration into compact chassis assemblies. With a power loss of 5.2W, it maintains efficiency without significant energy waste.

Compliant with IEC 60950 and EN55011/14/22 standards, this EMC filter is well-suited for reducing electromagnetic interference in automation equipment, power supplies, SMP systems, testing, and measurement instruments. Its terminal block termination style simplifies wiring and maintenance.

The filter is ideal for industrial automation and motor drive applications. Features chassis mount design for secure assembly integration. Supports single-phase supply with 8A maximum current rating. Ensures low power loss and minimal leakage current operation.

Compact dimensions enable installation in space-limited enclosures. Meets international standards for electromagnetic interference suppression. Robust design ensures stable operation across wide temperature ranges. Facilitates compliance with IEC 60950 safety approvals.

Terminal Block terminations provide reliable electrical connections.

This Schaffner FN350 EMC filter is an essential component for ensuring electromagnetic compatibility and operational reliability in demanding industrial and electronic systems. Browse more EMC filters and other passive electronic components from Schaffner at EnvMart.
