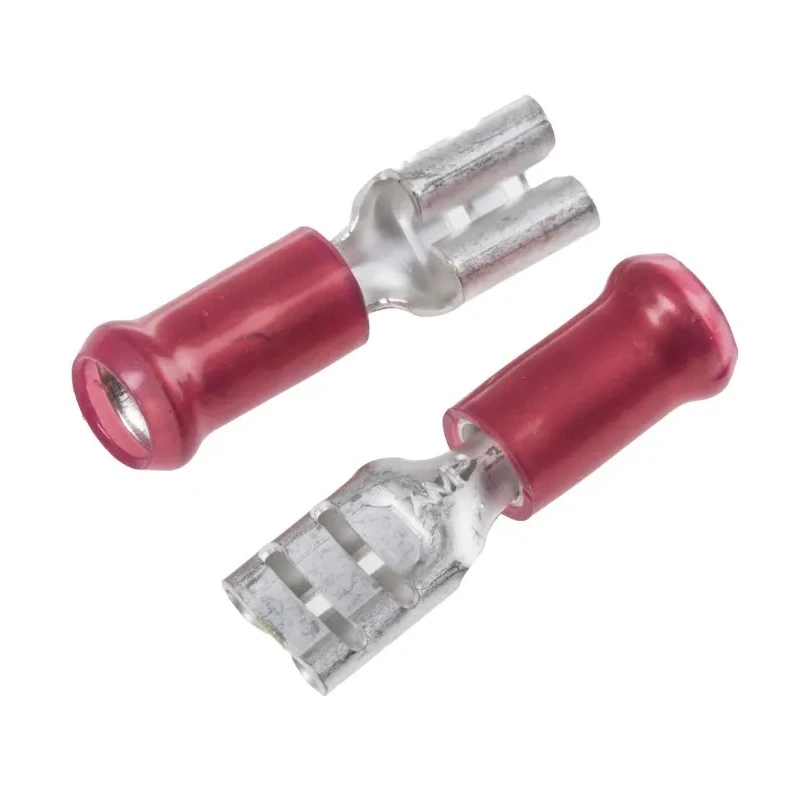

TE Connectivity PIDG FASTON .187 Red Insulated Female Spade Connector Crimp 4.8 x 0.5 mm Tab Size 22 AWG to 16 AWG 9-160481-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Orientation | Straight |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 20.88mm |
| Contact Material | Brass |
| Series | PIDG FASTON .187 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Tab Width | 4.8mm |
| Tab Thickness | 0.5mm |
| Tab Size | 4.8 x 0.5 mm |
| 187IN RECEP.REDX0.5Brand | TE Connectivity |
| TE Connectivity 187 Series Insulated Crimp Blade Terminal, RedBrand | TE Connectivity |
Key Features
- The connector features an insulated design with a red nylon sleeve for clear wire gauge identification.
- The contact material is brass with tin plating, enhancing conductivity and corrosion resistance.
- The termination type is crimp, allowing secure and reliable wire connections.
- The connector orientation is straight, suitable for standard connection applications.
- Overall length of the terminal is 20.88 mm, providing compact and efficient connectivity.
- Designed for use with wires sized between 0.3 mm² to 1.3 mm², equivalent to 22 AWG to 16 AWG.
- The PIDG FASTON .187 series offers quick disconnect receptacle functionality for ease of installation and maintenance.
Product Description
TE Connectivity 9-160481-1 PIDG FASTON .187 Red Insulated Female Spade Connector is a high-quality crimp terminal designed to provide reliable electrical connection in wire termination applications. With a tab size of 4.8 x 0.5 mm and an overall length of 20.88 mm, it supports wire sizes ranging from 22 AWG to 16 AWG (0.3 mm² to 1.3 mm²). The connector is equipped with a red nylon insulated sleeve for easy identification and enhanced electrical insulation.
The connector features a brass contact material with tin plating, ensuring excellent conductivity and protection against corrosion. Its straight orientation allows for versatile use in various electrical and electronic assemblies where quick disconnect functionality is required.
This PIDG FASTON .187 series terminal is engineered for crimp termination, which provides strong mechanical and electrical connection by compressing the wire barrel onto the conductor. The precision-formed metal wire barrel contains serrations that maximize contact and tensile strength post-crimping. The enclosed copper sleeve and nylon insulation secure the contact and provide additional durability.
Red nylon insulation sleeve for color-coded wire gauge identification. Brass contact with tin plating for enhanced conductivity and corrosion resistance. Serrated wire barrel ensures superior crimp contact strength. Straight orientation suitable for standard connection layouts.
Supports wire AWG sizes 22 to 16, covering 0.3 mm² to 1.3 mm² cross-sectional area. Compact overall length of 20.88 mm allows installation in confined spaces. Quick disconnect receptacle for efficient assembly and maintenance.
This Spade Connector is widely used in electronics, electrical components, power distribution, and connector assemblies within industrial, commercial, and automotive applications. It is suitable for ensuring secure and effective wire connections where quick disconnect terminals are needed.
Explore more from TE Connectivity and the PIDG FASTON series for a wide range of wire terminals and connectors suitable for diverse technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes ranging from 22 AWG to 16 AWG, which is equivalent to 0.3 mm² to 1.3 mm².
The connector features a brass contact material with tin plating, and it is insulated with a red nylon sleeve.
The overall length of this terminal is 20.88 mm, allowing for compact and efficient connectivity.
It uses a crimp termination type, which provides a strong mechanical and electrical connection by compressing the wire barrel onto the conductor.
The tab size is 4.8 x 0.5 mm, making it compatible with standard receptacles for quick disconnect functionality.
The connector has a straight orientation, suitable for standard connection applications.
Yes, this spade connector is widely used in automotive applications as well as in industrial and commercial settings.
The insulation material is nylon, which provides enhanced electrical insulation and protection.
The contact is plated with tin, which enhances conductivity and provides corrosion resistance.
The connector is manufactured in India.
It is suitable for use in various electrical and electronic assemblies, particularly where quick disconnect terminals are needed.
This connector is a female type, designed for use with compatible male connectors.
