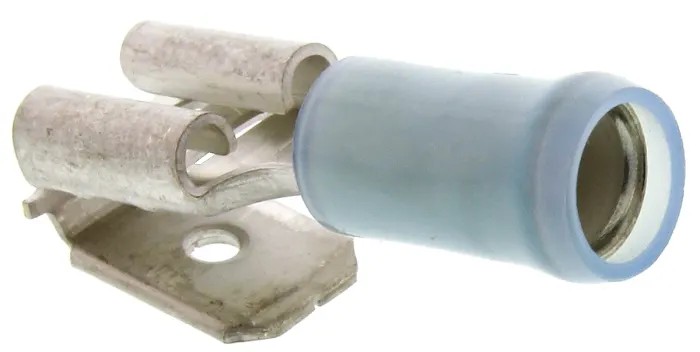

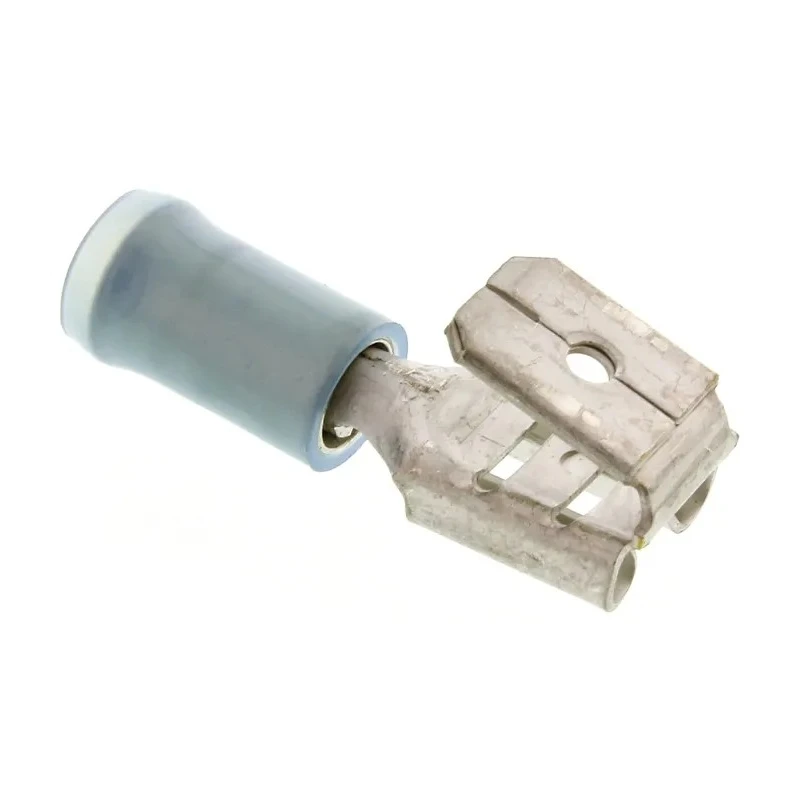

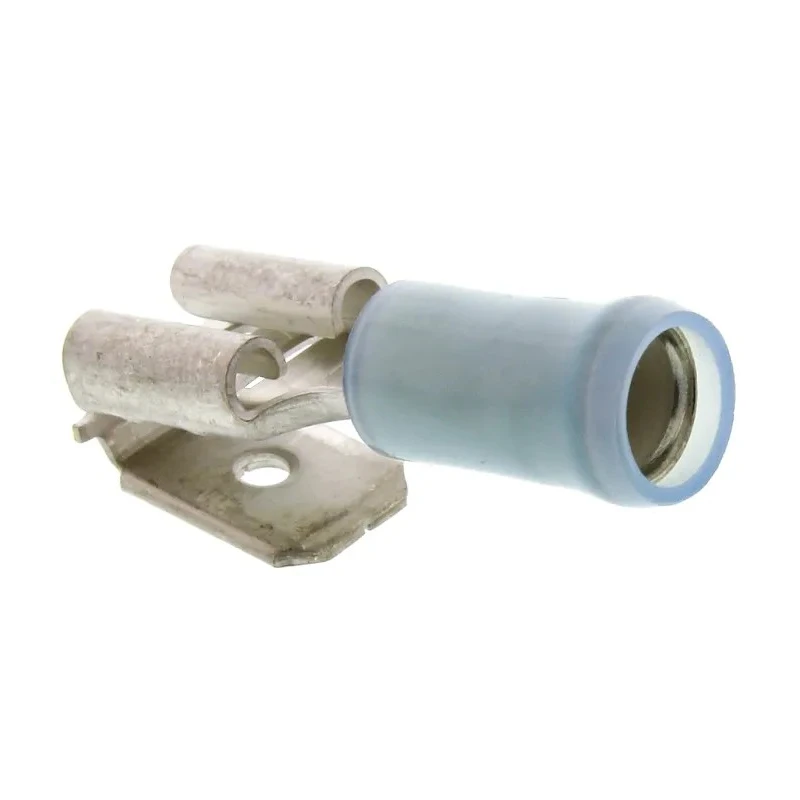

RS PRO PIDG FASTON .250 Blue Insulated Female Spade Connector, Crimp, 6.35 x 0.81 mm Tab Size 16 AWG to 14 AWG 9-160463-2

Free Delivery in India | Lowest Global Shipping Charges

RS PRO PIDG FASTON .250 Blue Insulated Female Spade Connector, Crimp, 6.35 x 0.81 mm Tab Size 16 AWG to 14 AWG 9-160463-2

Name: RS PRO PIDG FASTON .250 Blue Insulated Female Spade Connector, Crimp, 6.35 x 0.81 mm Tab Size 16 AWG to 14 AWG 9-160463-2
Brand: RS PRO
SKU: 187518
Price: 1.33 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Colour	Blue
Orientation	Straight
Gender	Female
Insulation	Insulated
Overall Length	23.42mm
Contact Material	Brass
Series	PIDG FASTON .250
Termination Type	Crimp
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	1mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Tab Width	6.35mm
Tab Thickness	0.81mm
Tab Size	6.35 x 0.81 mm
TE ConnectivityBrand	TE Connectivity
PIDG BLUE PIGGYBACKBrand	TE Connectivity

Key Features

The connector features a high conductivity brass contact with tin plating for enhanced performance.
Equipped with blue nylon insulated sleeves for easy wire size identification and insulation support.
Designed with a straight orientation and a tab thickness of 0.81 mm for compatibility with a wide range of terminals.
Provides a secure crimp connection with serrations inside the wire barrel for maximum contact and tensile strength.
The overall length of the connector is 23.42 mm, facilitating easy wiring and installation.
Suitable for use in industrial, automotive, aerospace, and control panel applications.
The funnelled wire entry ensures quick and efficient wire insertion during assembly.

Product Description

TE Connectivity 9-160463-2 PIDG FASTON .250 Blue Insulated Female Spade Connector is designed for precise crimp connections suitable for 16 AWG to 14 AWG wires. Its tab size measures 6.35 x 0.81 mm, with a tab thickness of 0.81 mm, delivering excellent compatibility in electrical circuits requiring quick disconnect terminals.

The connector features a high conductivity brass contact material with durable tin plating, ensuring reliable electrical performance and corrosion resistance. It incorporates a nylon insulation sleeve in blue color, which provides enhanced insulation and simplifies wire size identification during installation. The insulation also provides mechanical stability to the crimped wire to prevent insulation damage and conductor breakage.

This PIDG (Pre-Insulated Diamond Grip) Faston terminal has a straight orientation and an overall length of 23.42 mm, optimizing space and layout in panel designs and automotive harnesses. Inside the wire barrel, serrations maximize electrical contact and tensile strength after crimping, conforming with high reliability standards.

The funnelled wire entry design allows fast wire insertion which is beneficial for high-volume manufacturing environments. These characteristics make this terminal suitable for diverse applications such as industrial instrumentation, control panels, lighting, power supplies, motors, aerospace systems, and transportation equipment.

High conductivity brass contact with tin plating for corrosion resistance. Blue nylon insulation sleeve for wire identification and insulation support. Serrated wire barrel provides secure and reliable crimp connections.

Funnelled wire entry facilitates fast wire insertion. Compatible with 16 AWG to 14 AWG wires and 6.35 x 0.81 mm tab size. Suitable for industrial, automotive, aerospace, and control panel applications.

Explore the wide range of TE Connectivity PIDG Terminals and related Spade Connectors in the EnvMart Electronics & Electricals category for reliable power and signal wiring solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is compatible with wire sizes ranging from 16 AWG to 14 AWG, which corresponds to a minimum wire size of 1 mm² and a maximum wire size of 2.5 mm².

The tab size measures 6.35 x 0.81 mm, with a tab thickness of 0.81 mm, ensuring compatibility with various terminals.

The overall length of this connector is 23.42 mm, facilitating easy wiring and installation.

It features a blue nylon insulation sleeve that provides enhanced insulation and simplifies wire size identification during installation.

The connector is made with high conductivity brass contact material, which is plated with tin for corrosion resistance.

It incorporates serrations inside the wire barrel that maximize electrical contact and tensile strength after crimping.

This model has a straight orientation, which is designed for ease of use in various applications.

It is suitable for use in industrial, automotive, aerospace, and control panel applications.

The funnelled wire entry design allows for quick and efficient wire insertion during assembly, beneficial for high-volume manufacturing environments.

This connector utilizes a crimp termination type, providing a secure connection for electrical circuits.

The country of origin for this connector is India.

The nylon insulation sleeve provides mechanical stability to the crimped wire, preventing insulation damage and conductor breakage.
