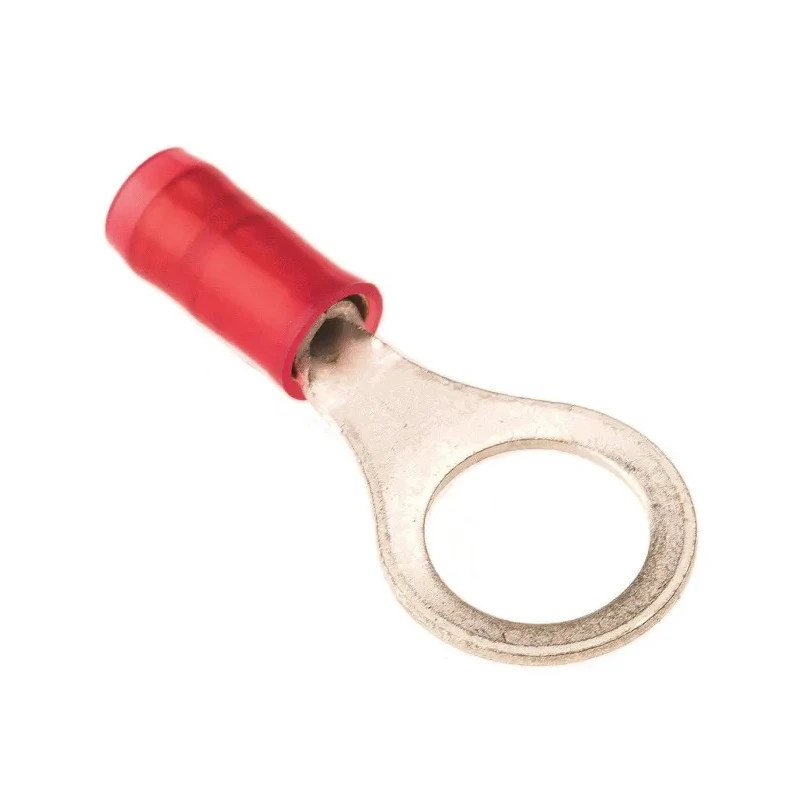

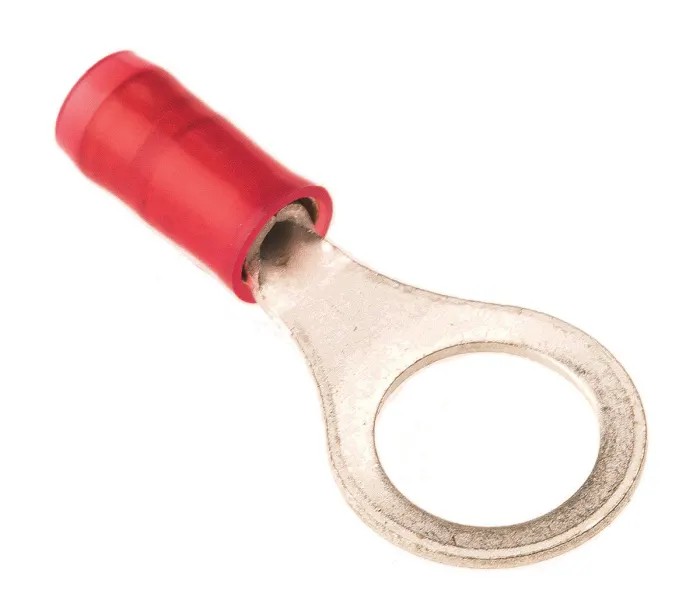

TE Connectivity PIDG Insulated Ring Terminal M8 Stud Size 22 AWG to 16 AWG Wire Size Red 320572
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 320572 |
| Insulation | Insulated |
| Overall Length | 27.38mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 11.91mm |
| Inner Ring Diameter | 8.33mm |
| Stud Size | M8 |
| RS PRO Insulated Ring Terminal, M8 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | RS PRO |
| M8 RING TERM REDBrand | TE Connectivity |
Key Features
- Constructed with high conductivity copper body for excellent electrical performance.
- Nylon insulation sleeve in red for easy wire size identification.
- Precision serrations in the wire barrel provide strong tensile strength after crimping.
- Designed for reliable, uniform crimps in demanding circuit environments.
- Sleeved copper barrel supports wire insulation and prevents fraying.
- Funnelled wire entry allows fast insertion during production.
- Suitable for electrical instrumentation, control panels, lighting, and power supplies.
- Operates reliably up to 105°C maximum temperature.
Product Description
TE Connectivity 320572 PIDG Insulated Ring Terminal features an M8 stud size designed for wire sizes ranging from 22 AWG to 16 AWG. This product incorporates a high conductivity copper body with tin plating to ensure optimal electrical contact and corrosion resistance. The barrel includes serrations that provide maximum tensile strength and secure wire termination when crimped.
The ring terminal is insulated by a durable red nylon sleeve that improves wire insulation support and allows for color-coded size identification. The funnelled entry design facilitates easy wire insertion and reduces the risk of frayed wire strands during installation, supporting high-speed production environments.
Engineered to meet stringent reliability standards, this PIDG ring terminal maintains consistent performance under challenging electrical and mechanical conditions. It is suitable for numerous applications including instrumentation, control systems, lighting, power supplies, panel boxes, transportation systems, lifting equipment, motors, aerospace, and various appliances.
High conductivity copper body enhances electrical performance. Copper sleeve provides improved insulation support. Serrations in wire barrel maximize contact and tensile strength. Color-coded nylon sleeve facilitates wire sizing and tooling identification.
Funnelled wire entry allows easy and fast wire insertion. Temperature rating up to 105°C supports demanding environments. Provides reliable crimp connections critical for industrial and automotive applications.
The robust design and specialized tooling compatibility enable uniform and secure crimps, essential for industrial, commercial, automotive, aerospace, and electrical assembly applications. This TE Connectivity PIDG Ring Terminal is a versatile and trusted solution for quality wire termination needs.
Explore more wire terminals and connectors at EnvMart to find the precise solution for your electrical connectivity requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal is designed for wire sizes ranging from 22 AWG to 16 AWG.
The maximum operating temperature for this terminal is 105°C.
The contact material of this ring terminal is copper, which is tin plated to enhance electrical contact and corrosion resistance.
It features a nylon insulation sleeve, which provides improved insulation support and facilitates color-coded size identification.
The stud size for this model is M8.
The inner ring diameter is 8.33mm and the outer ring diameter is 11.91mm.
The funnelled wire entry design allows for fast insertion, reducing the risk of frayed wire strands during installation.
It is suitable for numerous applications including electrical instrumentation, control panels, lighting, power supplies, and various appliances.
The thickness of this ring terminal is 0.79mm.
The precision serrations in the wire barrel provide strong tensile strength after crimping, ensuring secure wire termination.
The country of origin for this terminal is the United States.
The overall length of this terminal is 27.38mm.
