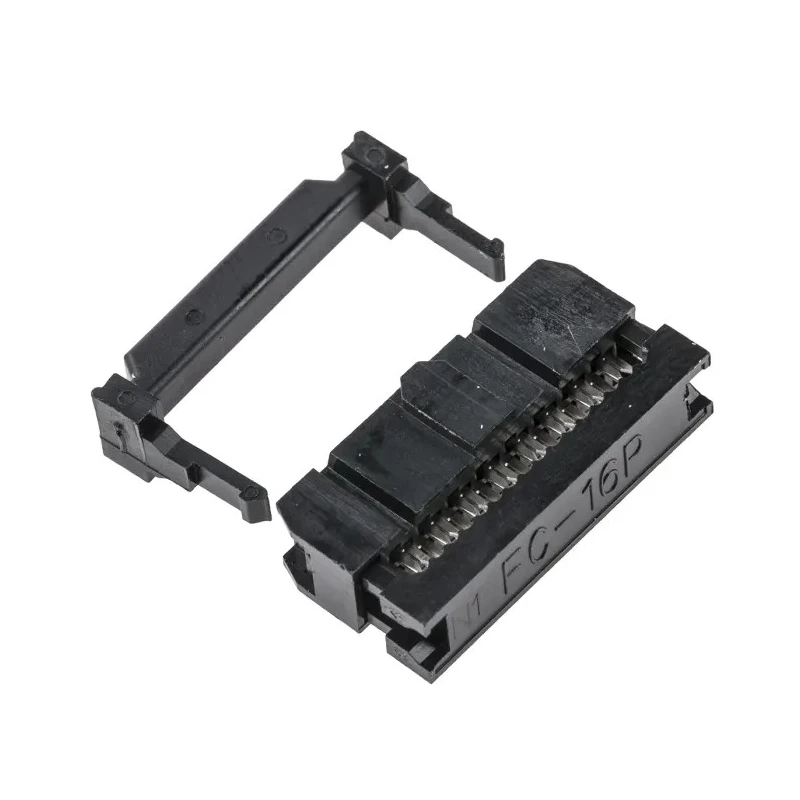

Wurth Elektronik 16-Way IDC Connector Female for Cable, 2 Row, 2.54mm Pitch, 1A Current, Unshrouded, WR-BHD 61201623021
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper |
| Series | WR-BHD |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Features 16 female contacts arranged in 2 rows for reliable connections.
- Supports up to 1 ampere current with a voltage rating of 250V ac.
- Unshrouded design ensures easy cable attachment and maintenance.
- Gold-plated copper contacts provide excellent conductivity and corrosion resistance.
- Housing made of durable Polybutylene Terephthalate (PBT) material for high mechanical strength.
- Operates reliably within temperature range of -40°C to 125°C.
- Series WR-BHD with straight orientation for cable mounting.
- Includes polarizing key and additional strain reliefs for secure cable retention.
Product Description
Wurth Elektronik 61201623021 16-Way IDC Connector Female for Cable, 2 Row is a high-quality IDC ribbon cable socket connector designed for cable mounting in electronic assemblies. It features a 2.54mm pitch and 16 female contacts arranged in two rows, making it suitable for compact, yet reliable wire-to-board connections in various industrial and electronic applications.
The contacts are gold-plated copper alloy, ensuring excellent electrical conductivity and resistance to oxidation. The connector housing is fabricated from black UL94-V0 rated Polybutylene Terephthalate (PBT), contributing to high mechanical strength and flame retardant properties.
This IDC connector supports a current rating of 1A and a voltage rating of 250V ac, suitable for low-power signal and control wiring. It is designed to operate in a wide temperature range from -40°C to 125°C, making it adaptable to demanding environmental conditions found in industrial, laboratory, and manufacturing settings.
The WR-BHD series provides a straightforward straight orientation to facilitate easy mounting on cables, accompanied by a polarizing key that prevents misconnection. Additional strain reliefs supplied with the connector help maintain reliable cable attachment under mechanical stress.
Features 16 gold-plated female contacts arranged in 2 rows. 2.54mm pitch compatible with standard ribbon cables. Durable PBT housing with black UL94-V0 flame rating. Operating temperature range from -40°C to 125°C. Supports 1A current and 250V ac voltage ratings.
Includes strain reliefs for secure cable retention. Polarizing key prevents incorrect insertion.
This IDC Connector is ideal for industrial control systems, electronic instrumentation, telecom equipment, and other electronic assemblies requiring a reliable multi-way cable-to-board connection.
Explore more electronic connectors and components at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector supports a current rating of 1A.
It has a voltage rating of 250V ac.
The contacts are arranged with a pitch of 2.54mm.
It features 16 female contacts arranged in 2 rows.
The housing is made of Polybutylene Terephthalate (PBT).
It operates reliably within a temperature range of -40°C to 125°C.
Yes, it includes additional strain reliefs for secure cable retention.
This connector uses IDC (Insulation Displacement Connector) termination type.
The connector has a straight orientation for cable mounting.
It is suitable for industrial control systems, electronic instrumentation, and telecom equipment.
The contacts are gold-plated for excellent conductivity and corrosion resistance.
This model is unshrouded, allowing for easy cable attachment and maintenance.
