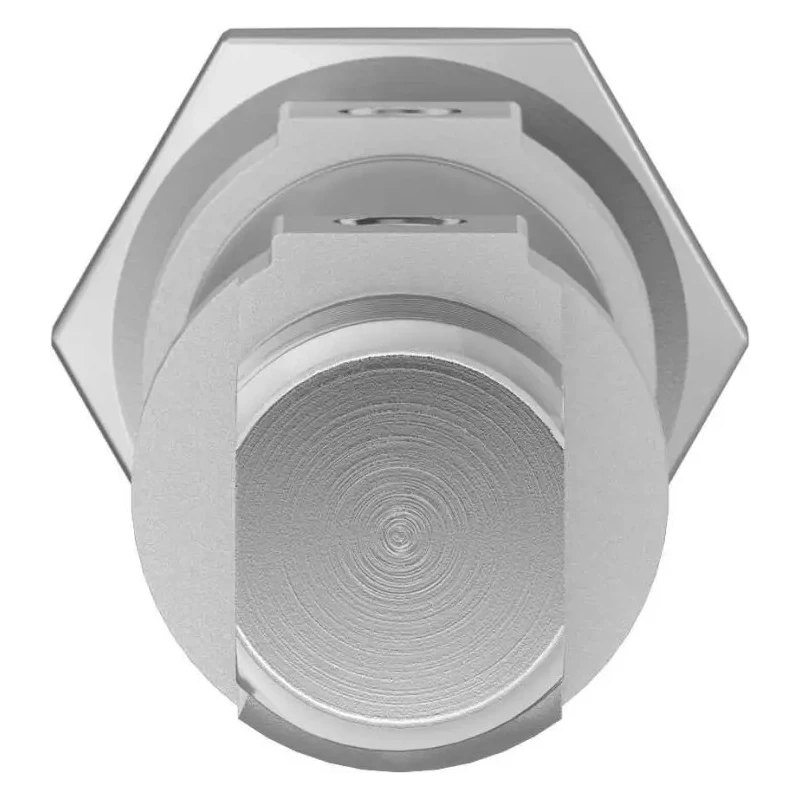

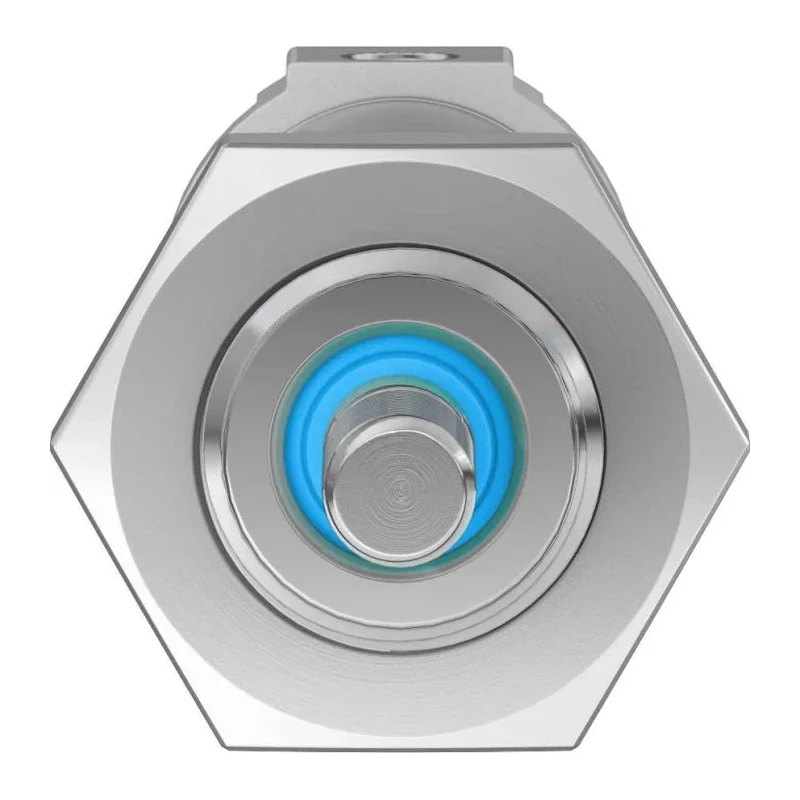

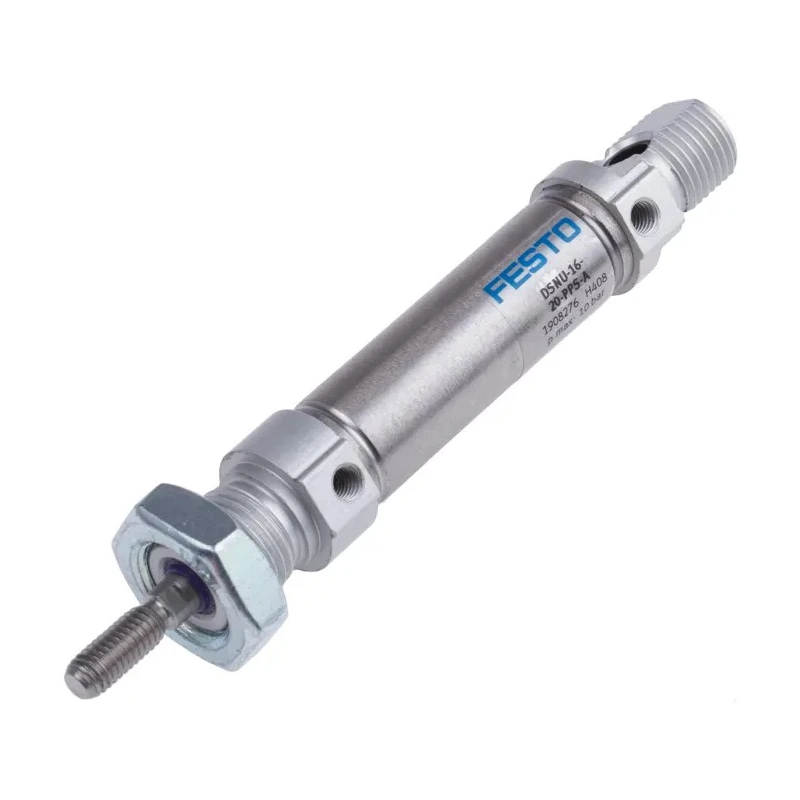

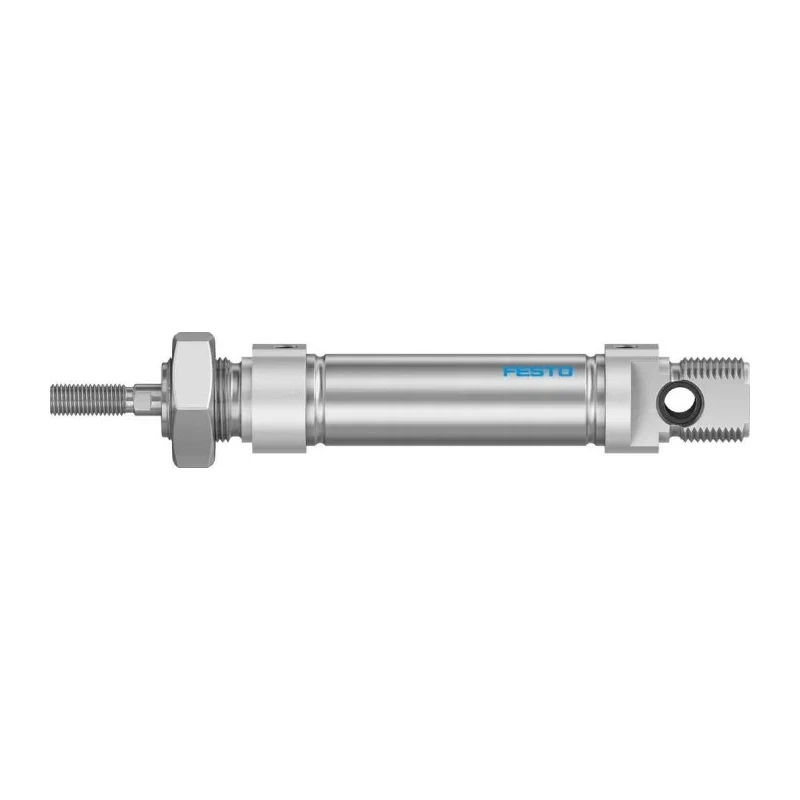

Festo Pneumatic Cylinder DSNU-16-20-PPS-A 20 mm Stroke Self-Adjusting Pneumatic Cushioning Germany

Festo DSNU-16-20-PPS-A pneumatic cylinder is a precision engineered pneumatic actuator featuring a 16 mm piston diameter with a 20 mm stroke length. This cylinder incorporates self-adjusting pneumatic end-position cushioning (PPS), which ensures smooth, gentle cushioning at both ends of the actuator barrel without requiring manual adjustments. The design includes a stainless steel piston rod with a male thread (M6) and a high alloy steel cylinder barrel, providing excellent corrosion resistance and durability.

The cylinder operates in a double acting mode, allowing compressed air to actuate piston movement in both directions. It supports a maximum piston speed of 100 mm/s and can function reliably up to an operating temperature of 80°C. The product conforms to key international standards such as ISO 1179-1 for fittings, ISO 6432 for compact cylinders, ISO 228-1 for thread type, and complies with the EU Explosion Protection Directive (ATEX), along with Germanischer Lloyd certification, ensuring safety in hazardous environments.

Mounting options are versatile, including rear, flange, direct, swivel, front, and foot mounts, enabling installation flexibility in various industrial and manufacturing settings. The DSNU series cylinders follow ISO 6432 standards for metric mounting dimensions, providing interchangeability and ease of integration.

These cylinders are suitable for a wide range of pneumatic applications including automation, material handling systems, packaging machinery, and laboratory instruments where compact and reliable pneumatic actuation is required.

The piston diameter is 16 mm with a 20 mm stroke length. Features self-adjusting pneumatic cushioning at both ends for reliable operation. Built with corrosion-resistant high alloy steel piston rod and cylinder barrel. Supports multiple mount types including rear, flange, direct, swivel, front, and foot mounts for versatility.

Double acting pneumatic operation for controlled linear motion. Compliance with ISO 1179-1, ISO 6432, ISO 228-1, ATEX, CE marking, and Germanischer Lloyd standards. Maximum operating temperature is 80°C with a maximum piston speed of 100 mm/s.

Ideal for industrial automation, manufacturing, HVAC, and laboratory pneumatic applications. Part of the established DSNU series, known for long service life and easy assembly. Explore more Pneumatic Cylinders and actuators from Festo in the Industrial Tools & Equipment category at EnvMart for your automation and pneumatic system needs.
