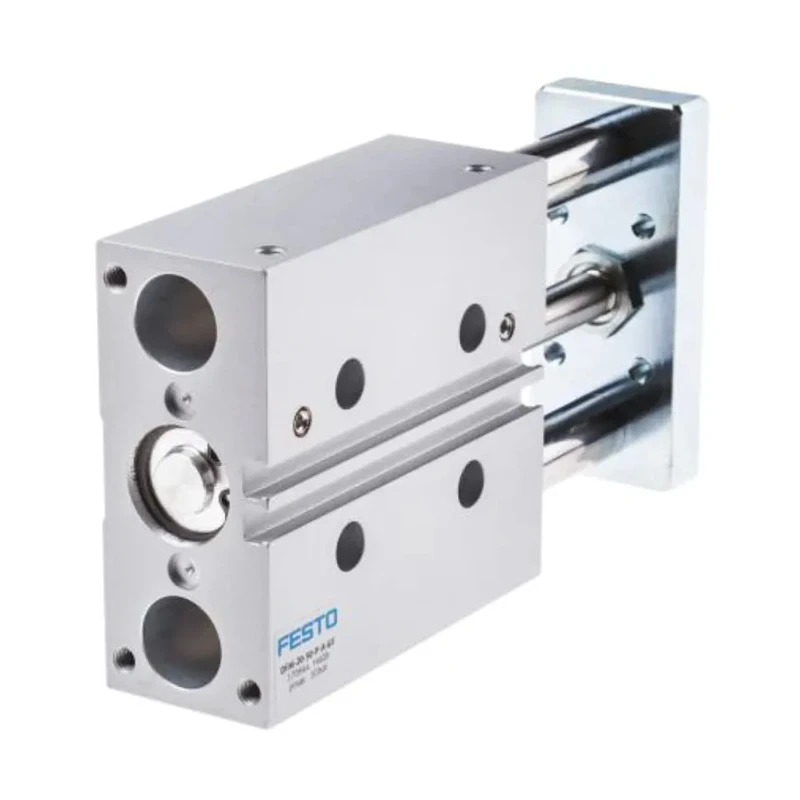

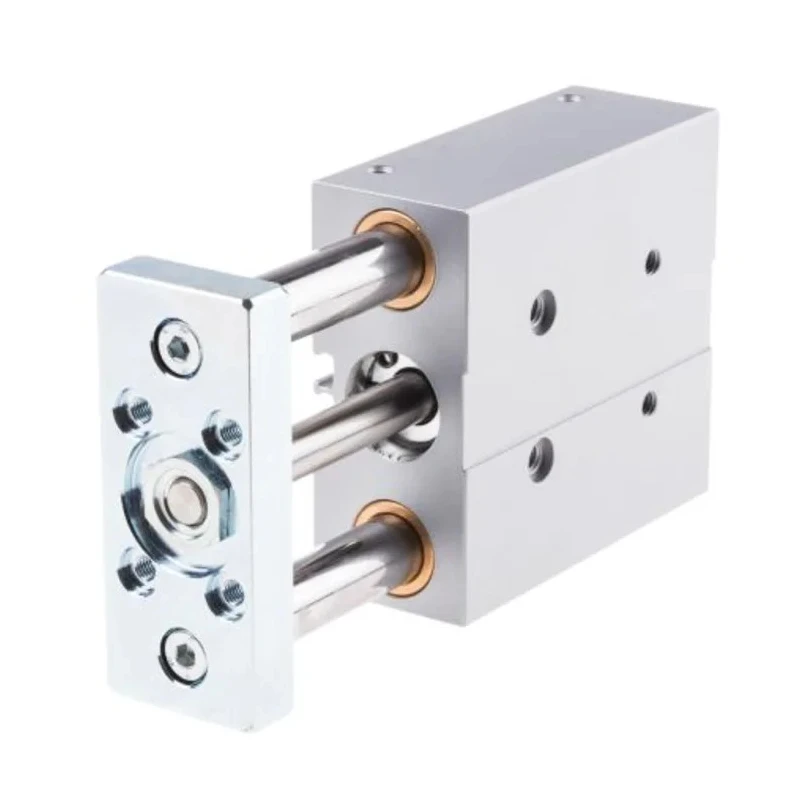

Festo Pneumatic Guided Cylinder, 20mm Bore, 80mm Stroke, Double Acting, Through Hole Mount, Elastomer DFM-20-80-P-A-GF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Maximum Operating Pressure | 10 bar |
| Height | 36mm |
| Length | 161mm |
| Model | DFM-20-80-P-A-GF |
| Gross Weight | 1.4kg |
| Width | 83mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 80mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | RoHS, ISO 228-1, ISO 1179-1 |
| Cushioning Type | Elastomer |
| Guide Type | Plain Bearing, Ball Bearing |
Key Features
- Cylinder combines drive and guiding in a single maintenance-free aluminium housing.
- Four plain slide bearings provide high rigidity and resistance to lateral forces.
- Flexible cushioning plates reduce operational noise and extend service life.
- Supply ports on top and side enable flexible mounting orientations.
- Compact dimensions with length 161mm, width 83mm, height 36mm, weight 1.4 kg.
- Suitable for double acting pneumatic applications including clamping, lifting, and stopping.
- Operates reliably in temperatures from -20°C to 80°C.
- Supports maximum operating pressure up to 10 bar and piston speed to 0.8 mm/s.
Product Description
Festo DFM-20-80-P-A-GF Pneumatic Guided Cylinder is a compact, double acting actuator combining both drive and guide functions within a single aluminium housing. Featuring a 20mm bore diameter and an 80mm stroke length, this pneumatic guided cylinder is engineered to deliver precise and reliable performance in demanding industrial environments.
The cylinder utilizes four plain slide bearings on large diameter guide rods, providing exceptional rigidity and resistance to lateral forces and torque. Its maintenance-free design includes flexible cushioning plates which lower operational noise and improve longevity, essential for continuous industrial use.
Operating within a temperature range of -20°C to 80°C, it supports a maximum operating pressure of 10 bar and a piston speed of up to 0.8 mm per second, making it ideal for applications such as clamping components, lifting loads, and stopping heavy equipment safely and efficiently.
The unit features supply ports located on both the top and side, offering flexible installation options to suit various machinery setups. Its single rod type design is complemented by plain and ball bearing guides for enhanced durability and smooth operation.
Compact in size with dimensions of 161 x 83 x 36 mm and a weight of 1.4 kg, the DFM series is designed for integration into advanced pneumatic systems where stiffness and precision are critical.
Drive and guide unit combined for high load pneumatic applications. Robust aluminium construction resistant to external torque and lateral forces. Flexible cushioning plates to minimize noise and increase system lifetime.
Multiple mounting options via supply ports on top and side of cylinder. Integrated slots for proximity sensors to enable precise piston positioning. Versatile applications including clamping, lifting, and stopping in industrial automation.
Engineered in Germany and compliant with RoHS, ISO 228-1, and ISO 1179-1 standards, this Festo Pneumatic Guided Cylinder delivers reliability and efficiency for modern manufacturing, laboratory automation, construction, and HVAC systems. Explore EnvMart’s extensive range of pneumatic actuators for enhanced industrial productivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 80mm.
It supports a maximum operating pressure of 10 bar.
The dimensions are 161mm in length, 83mm in width, and 36mm in height.
The bore diameter is 20mm.
It operates reliably within a temperature range of -20°C to 80°C.
This model features a double acting action type.
It supports through hole mounting.
The gross weight of this unit is 1.4 kg.
It uses elastomer cushioning to minimize noise and increase system lifetime.
It features both plain bearing and ball bearing guides for enhanced durability and smooth operation.
This model is compliant with RoHS, ISO 228-1, and ISO 1179-1 standards.
It is suitable for applications such as clamping components, lifting loads, and stopping heavy equipment.
