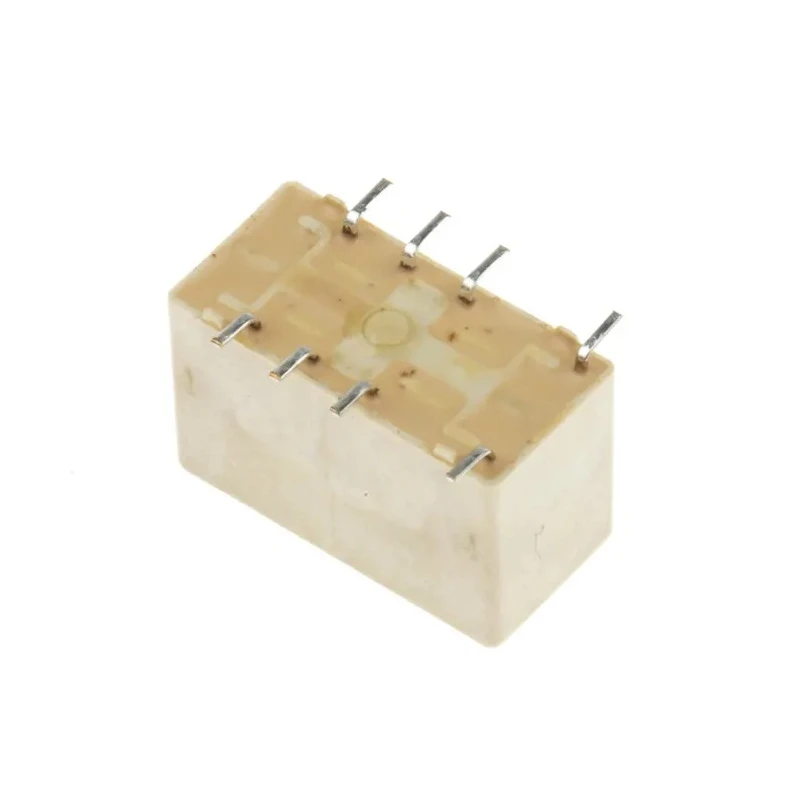

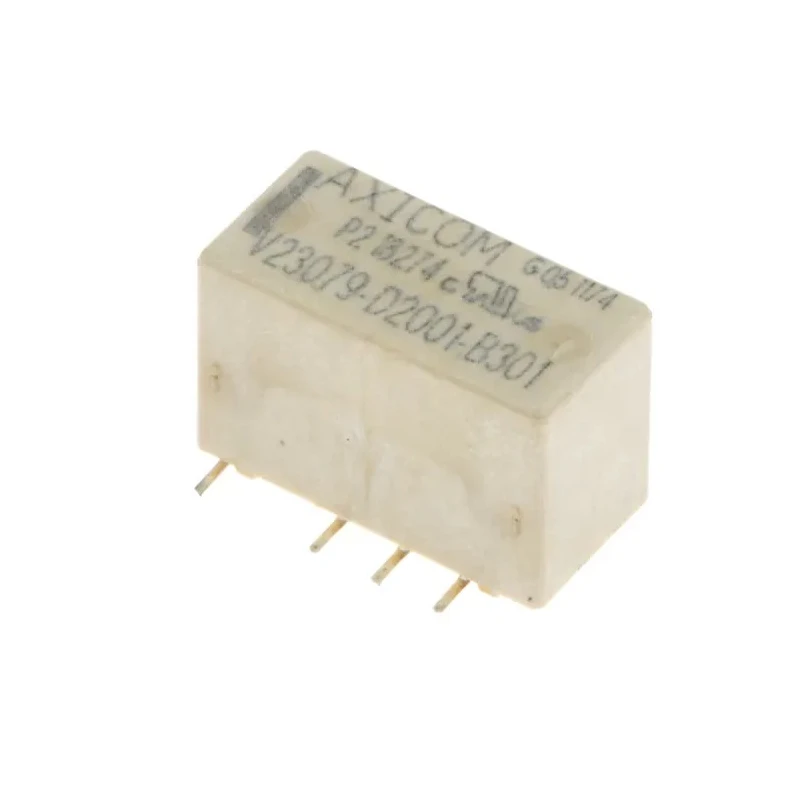

TE Connectivity Axicom P2 Surface Signal Relay 5V DC Coil 2A DPDT Surface Mount Gold Contacts V23079-D2001-B301

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Axicom P2 Surface Signal Relay 5V DC Coil 2A DPDT Surface Mount Gold Contacts V23079-D2001-B301

Name: TE Connectivity Axicom P2 Surface Signal Relay 5V DC Coil 2A DPDT Surface Mount Gold Contacts V23079-D2001-B301
Brand: TE Connectivity
SKU: 88068
Price: 3.13 USD
Availability: InStock



Category Signal Relay Brand TE Connectivity Condition New

Specifications

Country of Origin	Czech Republic
Brand	TE Connectivity
Height	10.4mm
Length	14.5mm
Model	V23079-D2001-B301
Width	7.4mm
Mount Type	Surface
Contact Material	Gold Plated
Series	Axicom P2
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	2A
Terminal type	Surface Mount
Standards/Approvals	RoHS
Coil Resistance	178Ω
Coil Voltage	5V dc
Switching DC Voltage	220V dc
Switching AC Voltage	250V ac
Coil Power	140mW
Flammability Classification	V-0
TE Connectivity Surface Signal Relay, 5V dc Coil, 2A, DPDTBrand	TE Connectivity

Key Features

Operates with a 5V DC coil for efficient signal control.
2A maximum switching current supports a variety of low-power applications.
DPDT contact configuration enables versatile circuit switching.
Surface mount design for modern PCB assembly and integration.
Bifurcated gold-plated contacts enhance long-term reliability and low contact resistance.

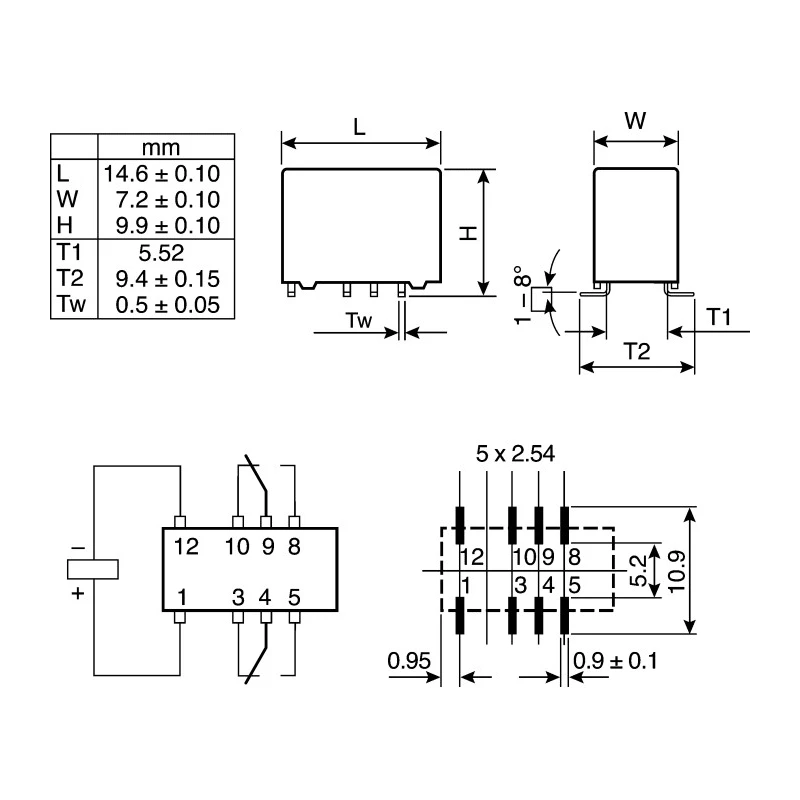

Compact body with dimensions of 14.5mm x 7.4mm x 10.4mm.
Wide operating temperature range from -40°C to 85°C.
Features low coil power consumption of only 140mW.

Product Description

TE Connectivity's V23079-D2001-B301 is a high-quality Axicom P2 series surface signal relay designed to offer precise control in telecommunications, industrial, and commercial electronic applications. It is engineered with a 5V DC coil and allows up to 2A switching current, providing robust operation for demanding signal switching needs.

This relay employs a DPDT (Double Pole Double Throw) contact configuration, making it suitable for versatile circuit routing or switching operations. The surface mount format supports streamlined automated PCB assembly and integration in both compact and high-density electronic designs.

Constructed with bifurcated, gold-plated silver nickel contacts, the relay ensures excellent conductivity and resistance to corrosion over time, enhancing both reliability and signal integrity. Its compact dimensions (14.5mm length, 7.4mm width, 10.4mm height) make it ideal for densely packed circuitry, such as in communication equipment, set-top boxes, industrial controllers, consumer electronics, medical instrumentation, and automotive systems.

With a low coil power consumption of just 140mW, the relay supports energy-efficient designs. Its insulation resistance at 500V DC is greater than 1 GΩ, contributing to high isolation between coil and contact circuits for improved safety and noise immunity. The rugged build achieves IP67 immersion cleanability, RTIII humidity resistance, and V-0 flammability classification, making it suitable for applications requiring enhanced environmental protection.

Surge capability complies with Telcordia TR-NWT-001089 (2/10 μs) and IEC 60950 (10/700 μs) standards, supporting up to 2000V between open contacts and 2500V between coil and contacts. This ensures robust protection for sensitive telecom and industrial signal lines.

Typical use cases include telecommunications (PABX, VOIP, ringing, and test access), industrial automation, consumer electronics, control units, medical equipment, and automotive control modules. The relay is RoHS and UL compliant, meeting international standards for quality and environmental safety.

Explore more about signal relays and other advanced switching solutions in the Signal Relay category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum switching current of this relay is 2A, making it suitable for various low-power applications.

This model operates with a coil voltage of 5V DC.

The dimensions of this relay are 14.5mm in length, 7.4mm in width, and 10.4mm in height.

It features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile circuit switching.

The relay operates within a temperature range of -40°C to 85°C.

The coil power consumption is low at just 140mW, supporting energy-efficient designs.

The contacts are made of gold-plated silver nickel, which enhances conductivity and resistance to corrosion.

Yes, this relay is designed for surface mounting, facilitating modern PCB assembly and integration.

This relay is RoHS compliant and meets flammability classification V-0, ensuring it adheres to international safety standards.

The insulation resistance at 500V DC is greater than 1 GΩ, providing high isolation between coil and contact circuits.

This relay is suitable for telecommunications, industrial automation, consumer electronics, medical equipment, and automotive control modules.

The relay supports surge capability compliant with Telcordia TR-NWT-001089 and IEC 60950 standards, with ratings of up to 2000V between open contacts.
