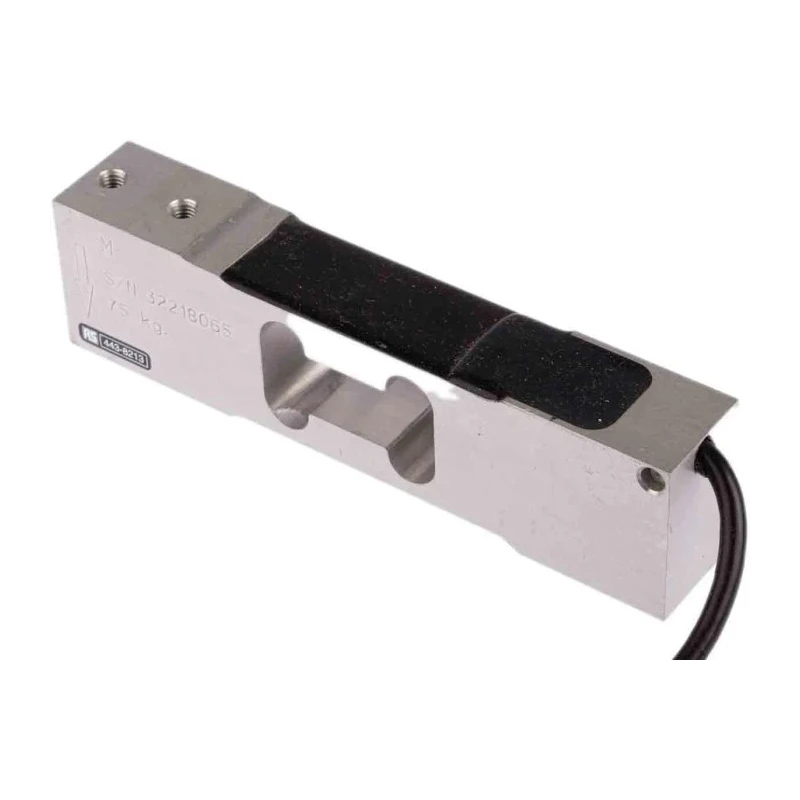

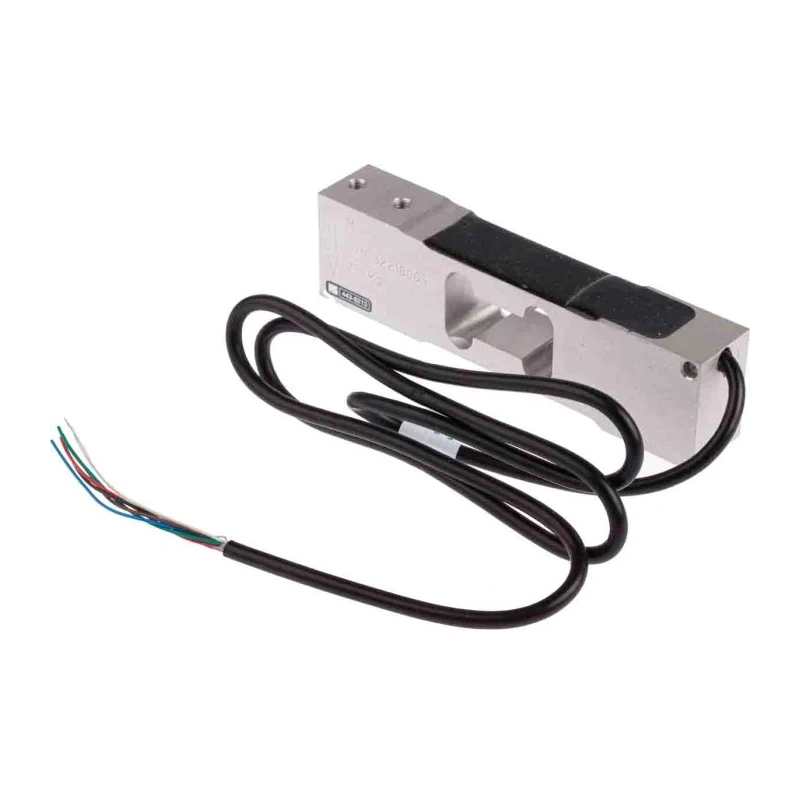

Tedea Huntleigh Model 1042 Series Single Point Load Cell, Compression Force, 1kg to 75kg Range, Aluminium 1042-0075-F000-RS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 40mm |
| Model | 1042-0075-F000-RS |
| Depth | 25.4mm |
| IP Rating | IP66 |
| Sensor Type | Single Point |
| Width | 150mm |
| Mount Type | Hole |
| Housing Material | Aluminium |
| Series | Model 1042 |
| Termination Type | Cable |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -10°C |
| Terminal type | Wire |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | NTEP, OIML |
| Maximum AC Voltage | 15V ac |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 75kg |
| Gauge Resistance | 415Ω |
| Minimum Force/Load Measurement | 1kg |
| Ultimate Overload | 300% of Rated Load |
Key Features
- Low profile aluminium design for durability and stability.
- Measures compression forces accurately within 1kg to 75kg.
- Rated for 415Ω gauge resistance ensuring precise output signal.
- Humidity resistant coating for long-term stability in varied environments.
- IP66 rating protects against dust and water for industrial use.
- Operating temperature range from -10°C to 40°C for diverse conditions.
- Ultimate overload capacity of 300% of rated load to prevent damage.
- Designed for direct mounting of low cost weighing platforms.
Product Description
Tedea Huntleigh 1042-0075-F000-RS is a Model 1042 series single point load cell engineered for precise compression force measurement within the range of 1kg to 75kg. The sensor features a low profile aluminium housing rated IP66 which offers protection against dust and water ingress, suitable for various industrial and laboratory applications.
This load cell has a gauge resistance of 415Ω and provides stable and reliable output signal through a cable termination. The device supports maximum AC and DC voltages of 15V respectively, ensuring safe operation within electrical limits.
The 1042 series is humidity resistant, with a protective coating that maintains accuracy and long-term stability across the compensated temperature range from -10°C to 40°C. Its robust design includes an ultimate overload capacity of 300% of rated load, ensuring protection against mechanical damage during heavy use.
Dimensions of this load cell are 25.4mm depth, 40mm length, and 150mm width, making it compact and easy to mount on low cost weighing platforms.Typical use cases include industrial automation, weighing, force measurement in manufacturing, and quality control laboratories. Its IP66 rating and aluminium housing make it suitable for harsh environmental conditions including water and dust exposure.
Low profile aluminium construction for lasting durability. Compression force measurement from 1kg to 75kg with high accuracy. Protected coating for humidity resistance and stable readings. IP66 degree of protection suitable for industrial settings.
Wide operating temperature range from -10°C to 40°C. Ultimate overload protection up to 300% of rated load. Compatibility with weighing platforms requiring single point load cells. Robust cable termination for secure electrical connection.
Browse the EnvMart catalog for additional sensors, strain gauges, and Load Cells by Tedea Huntleigh for comprehensive automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures compression forces accurately within a range of 1kg to 75kg.
The load cell has an IP66 rating, providing protection against dust and water ingress, making it suitable for industrial use.
It features a low profile housing made of aluminium, which contributes to its durability and stability.
The gauge resistance is rated at 415Ω, ensuring a precise output signal.
The ultimate overload capacity is 300% of the rated load, which helps prevent damage during heavy use.
The dimensions are 25.4mm in depth, 40mm in length, and 150mm in width, making it compact for mounting.

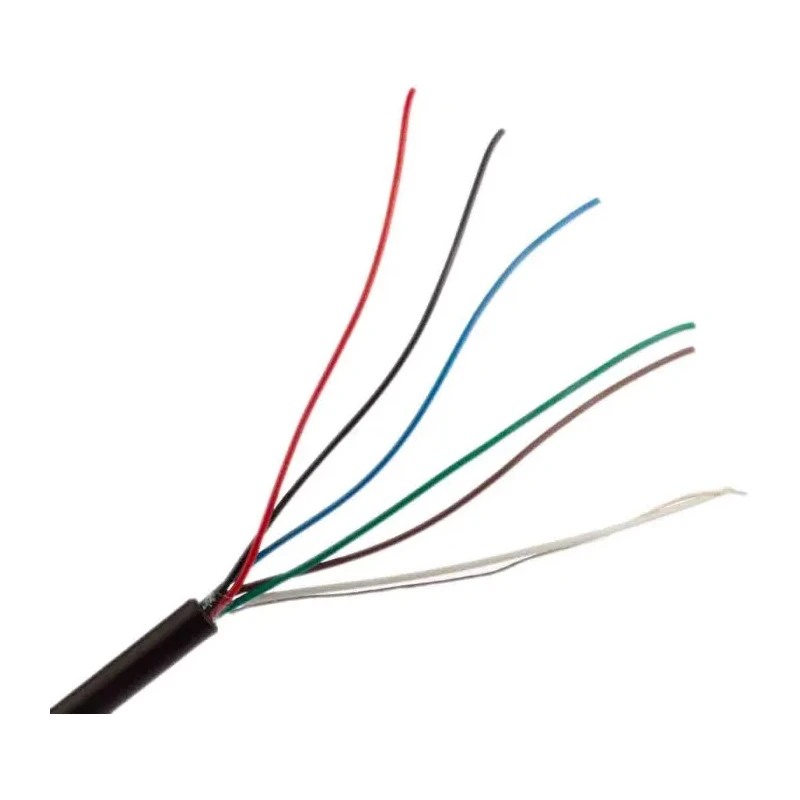

The load cell uses a cable termination type, providing a secure electrical connection.
It is compliant with NTEP and OIML standards, ensuring reliable performance.
Typical applications include industrial automation, weighing, force measurement in manufacturing, and quality control laboratories.
This load cell is designed specifically for measuring compression forces.
It features a humidity-resistant coating that maintains accuracy and long-term stability in varied environments.
