onsemi M-BUS Transceiver Evaluation Kit NCN5150SOICGEVB 19.2 kHz SOIC Package 2-Wire Interface NCN5150SOICGEVB

Free Delivery in India | Lowest Global Shipping Charges

onsemi M-BUS Transceiver Evaluation Kit NCN5150SOICGEVB 19.2 kHz SOIC Package 2-Wire Interface NCN5150SOICGEVB

Name: onsemi M-BUS Transceiver Evaluation Kit NCN5150SOICGEVB 19.2 kHz SOIC Package 2-Wire Interface NCN5150SOICGEVB
Brand: onsemi
SKU: 185979



Category Communication & Wireless Development Tool Brand onsemi Condition New

Specifications

Country of Origin	United States
Brand	onsemi
Model	NCN5150SOICGEVB
Interface Type	2 Wire
For Use With	NCN5150
Standards/Approvals	RoHS
Maximum Frequency	19.2kHz
Kit Classification	Evaluation Kit
Featured Device	NCN5150SOICGEVB
Kit Name	M-BUS Transceiver

Key Features

This evaluation kit provides all necessary components to demonstrate the NCN5150 transceiver functionality.
Supports up to 38400 Baud half-duplex UART communication speed.
Includes a programmable power level with integrated 3.3 V LDO regulator and adjustable I/O levels.
The transceiver operates at low bus voltages with polarity independence and power-fail functionality.
Designed for Meter Bus (M-BUS) standard compliant remote meter reading applications.
Kit classification is Evaluation Kit for use with NCN5150 device series.
RoHS compliant and manufactured in the United States.
Interface type is 2 Wire for simple connection topology.

Product Description

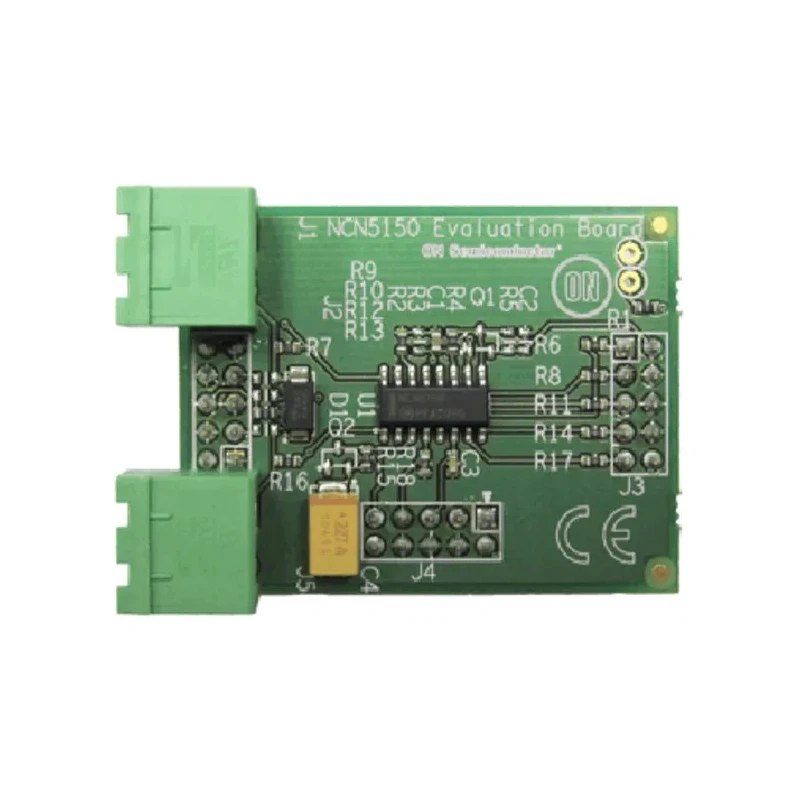

The onsemi NCN5150SOICGEVB M-BUS Transceiver Evaluation Kit provides a comprehensive platform to evaluate the NCN5150 M-BUS transceiver device, housed in a standard SOIC package. Operating at a maximum frequency of 19.2 kHz, this evaluation board includes all necessary components for easy operation and demonstration of the transceiver's capabilities.

This integrated slave transceiver is designed specifically for two-wire Meter Bus (M-BUS) slave devices and repeater applications. It supports communication speeds up to 38400 Baud in half-duplex UART mode, enabling efficient data transmission for remote meter reading systems.

The NCN5150 device features a programmable power level allowing up to 2 unit loads, accessible via a 3.3 V LDO regulator supplying extended peak current. The transceiver features adjustable I/O voltage levels, low bus voltage operation, and polarity independence, ensuring reliable performance in varied industrial environments. It incorporates a power-fail detection function for enhanced system safety.

Compliant with the European M-BUS standard (EN 13757-2 physical layer and EN 13757-3 application layer), this device is ideal for gas, electricity, and other remote utility meter reading applications. The evaluation kit’s 2 wire interface simplifies connection to existing M-BUS networks.

This evaluation board supports quick development and testing of the NCN5150 transceiver functionality. Range of applications includes Industrial, Communication, Metering, and Wireless Development. Compact design in SOIC package aids easy integration and prototyping.

Kit includes all necessary components to facilitate testing and demonstration. Product is fully RoHS compliant and manufactured in the United States. Explore more Communication & Wireless Development Tools in the EnvMart catalog to complement your design and development needs.
