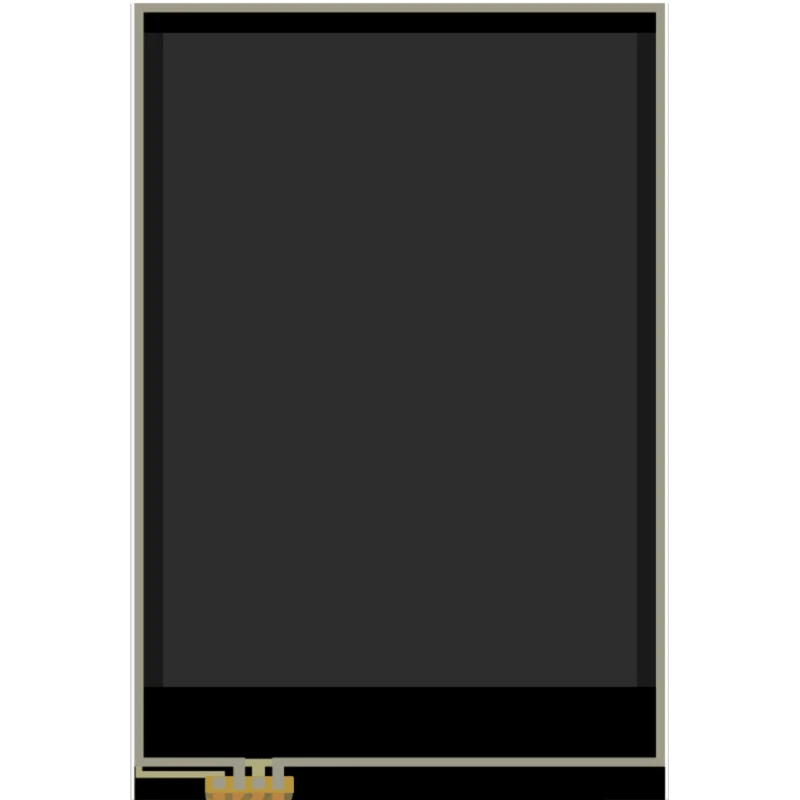

4D Systems LCD Colour Display Touch Screen 81.28 mm 240 x 320 pixel 4DLCD-32320240-RTP
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | LCD |
| Brand | 4D Systems |
| Current | 25mA |
| Height | 77.7mm |
| Model | 4DLCD-32320240-RTP |
| Depth | 64.8mm |
| Width | 55.04mm |
| Series | 4DLCD |
| Maximum Operating Temperature | 70°C |
| Brightness | 160cd/m² |
| Minimum Operating Temperature | -20°C |
| Interface Type | MCU 16 Bit/SPI |
| Screen Resolution | 240 x 320 pixel |
| Standards/Approvals | RoHS |
| Touch Screen Type | Resistive |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 2.6V |
| Viewing Area Dimensions | 48.6 x 64.8 mm |
| Backlight Type | LED |
| Diagonal Display Size | 81.28mm |
| Contrast Ratio | 250:1 |
| Contrast Ratio250 | 1 |
| 250 | 1 |
Key Features
- The display features a diagonal size of 81.28 mm and a resolution of 240 x 320 pixels.
- It provides a viewing area of 48.6 x 64.8 mm with an LED backlight for clear visibility.
- The touch screen type is resistive, enabling precise user input.
- The module operates at a supply voltage range of 2.6V to 3.3V with a current consumption of 25mA.
- Designed to operate within temperatures ranging from -20°C to 70°C for reliable performance.
- Interface options include MCU 16 Bit and SPI, ensuring compatibility with various systems.
- Its compact dimensions are 77.7mm in height, 55.04mm in width, and 64.8mm in depth.
- The product complies with RoHS standards, ensuring environmental safety.
Product Description
4D Systems 4DLCD-32320240-RTP LCD Colour Display Touch Screen is a high-quality colour active matrix LCD module incorporating an amorphous silicon TFT panel. It features a colour TFT-LCD panel integrated with a driver IC, FPC, and LED backlight unit, and supports a resistive touch screen interface.
This module displays 240 x 320 pixels on an 81.28 mm diagonal screen, offering a viewing area of 48.6 x 64.8 mm. Its LED backlight ensures clear, bright display output with a brightness of 160 cd/m² and a contrast ratio of 250:1. The resistive touch screen provides accurate and responsive touch control suitable for user interface applications.
The display operates at a minimum supply voltage of 2.6V and a maximum of 3.3V with a 25mA current draw, making it energy-efficient. It is designed to work in industrial and commercial environments with a temperature range from -20°C to 70°C, providing reliable performance under diverse operating conditions.
Its interface supports MCU 16 Bit and SPI, allowing integration with various microcontrollers for embedded system applications. Physical dimensions of 77.7mm height, 55.04mm width, and 64.8mm depth make it compact and versatile for various industrial, laboratory, and automation projects.
The product is RoHS compliant, confirming adherence to environmental protection standards. Manufactured in Australia, this module ships new and ready for use in systems requiring high-quality colour display and touch screen functionality.
The display features a diagonal size of 81.28 mm and a screen resolution of 240 x 320 pixels. Viewing area measures 48.6 x 64.8 mm with LED backlighting. Resistive touch screen type enables precise input detection. Power supply rating ranges between 2.6V and 3.3V with 25mA current usage.
Operating temperature range is from -20°C to 70°C for consistent performance. Brightness is rated at 160 cd/m² with a contrast ratio of 250:1. Supports MCU 16 Bit and SPI interface types for system compatibility. Physical dimensions: Height 77.7mm, Width 55.04mm, Depth 64.8mm.
Complies with RoHS environmental standards. Manufactured in Australia and supplied in new condition.
This display module is suitable for industrial automation, embedded systems, laboratory instruments, and commercial electronics applications requiring a versatile LCD colour display with touch interface. Browse EnvMart for more products by 4D Systems and related electronic components.
Explore more products in our LCD Colour Displays category.
