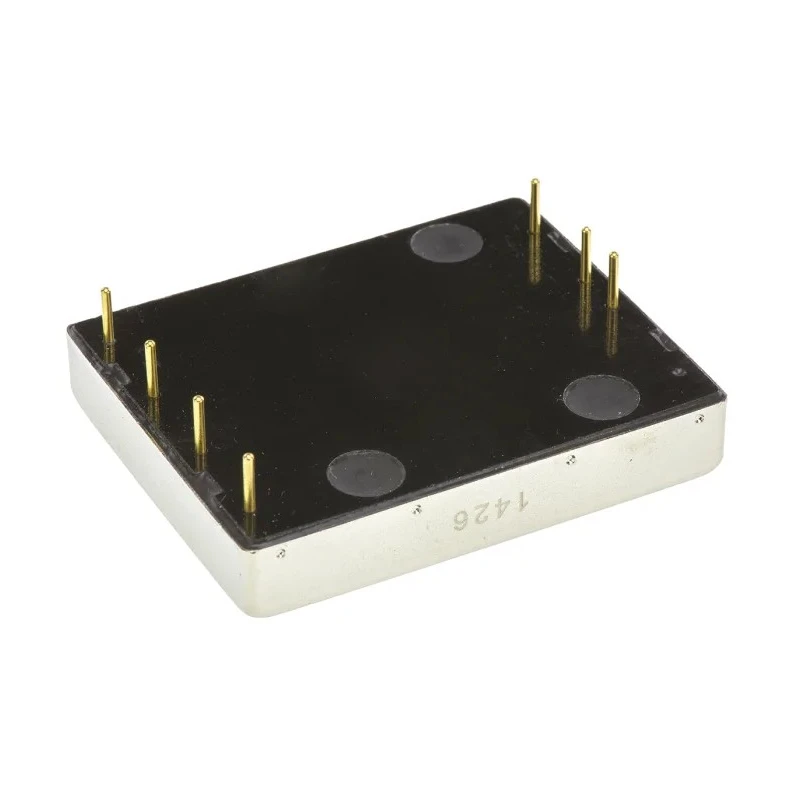

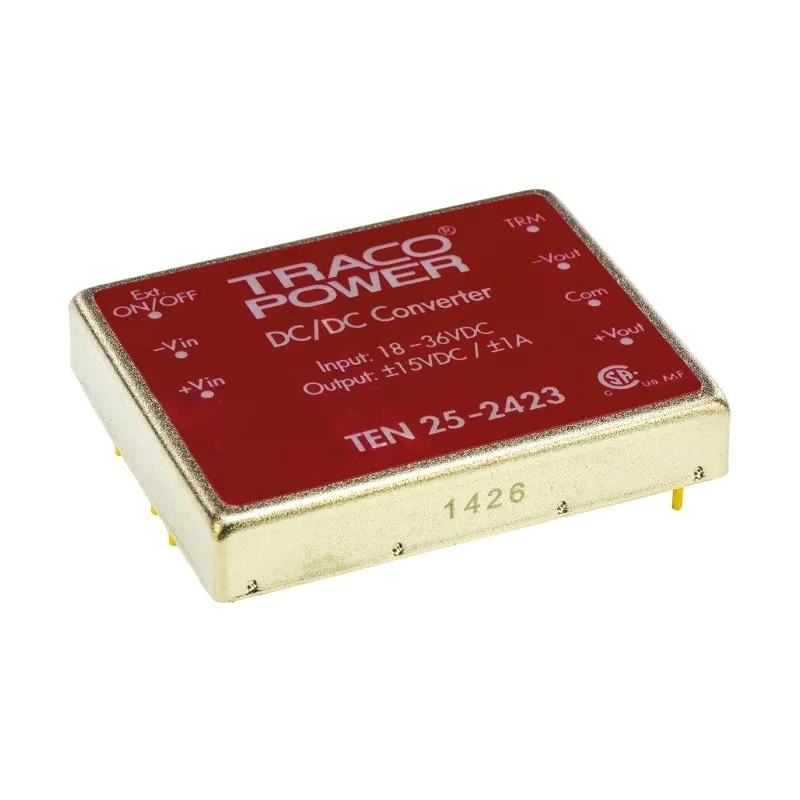

TRACOPOWER TEN 25 Series PCB Mount Dual Output DC/DC Converter 15V/1A, -15V/1A, 18-36V Input, 25W Power TEN 25-2423
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 25 DC/DC Converter, 15V dc/ 1 A, 36 |
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 40.6mm |
| Model | TEN 25-2423 |
| Depth | 9.5mm |
| Width | 50.8mm |
| Mount Type | PCB |
| Series | TEN 25 |
| Maximum Operating Temperature | 85°C |
| Package Type | Shielded Metal Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 550000h |
| Number of outputs | 2 |
| Maximum Output Power | 25W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 1A |
| Isolation Voltage | 1.5kV dc |
| Output Current 2 | 1000mA |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Output Voltage 2 | -15V dc |
Key Features
- Wide input voltage range from 18 V to 36 V DC ensures compatibility with diverse power supplies.
- Dual output voltage providing +15 V dc and -15 V dc at 1 A each for versatile electronic applications.
- High efficiency of 89% reduces energy loss and improves thermal management.
- Compact shielded metal case with PCB mount and 7-pin configuration for easy integration.
- Operating temperature range from -40°C up to 85°C suits harsh industrial environments.
- Provides continuous short circuit protection to enhance device longevity.
- Isolation voltage rating of 1.5 kV DC ensures electrical safety and noise suppression.
- Mean Time Between Failures (MTBF) exceeds 550,000 hours under benign conditions.
Product Description
TRACOPOWER TEN 25-2423 is a high-performance dual output DC/DC converter designed for industrial and electronic power supply applications. Featuring an input voltage range from 18 V to 36 V DC, this converter delivers stable voltages of +15 V and -15 V at 1 A current capacity each, with a maximum output power of 25 W.
The shielded metal case with a compact PCB mount and a 7-pin interface facilitates easy installation and integration in complex electronic systems. With an efficiency rating of 89%, the converter minimizes energy loss and operates effectively over a wide temperature range of -40°C to +85°C, suitable for demanding environmental conditions.
Electrical isolation up to 1.5 kV DC enhances safety and reduces noise interference, making it ideal for sensitive industrial and communication equipment. The device also incorporates continuous short circuit protection, ensuring reliable operation and extended lifetime, substantiated by an MTBF exceeding 550,000 hours.
Compatibility extends to battery-operated devices and distributed power systems, offering robust performance and stability in voltage conversion tasks. This converter is a preferred choice for engineers seeking dependable and efficient power management solutions in electronic components and industrial controls.
Wide input voltage range from 18 V to 36 V DC. Dual outputs of +15 V and -15 V DC at 1 A each. High efficiency up to 89% for energy savings. Compact shielded metal case with 7-pin PCB mount. Operating temperature from -40°C to 85°C for industrial use.
Continuous short circuit protection for durability. Isolation voltage of 1.5 kV DC for electrical safety. Long MTBF of 550,000 hours ensuring reliability. Ideal for industrial electronics, communication, and battery applications.
Provides stable voltage conversion in demanding environments. Explore TRACOPOWER products and DC/DC converters at EnvMart for quality industrial power solutions.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18 V to 36 V DC.
This unit provides dual output voltages of +15 V DC and -15 V DC, each with a current capacity of 1 A.
The maximum output power of this converter is 25 W.
It has an efficiency rating of 89%, which helps reduce energy loss.
The operating temperature range for the TEN 25-2423 is from -40°C to 85°C.
This model features a PCB mount design, making it easy to integrate into electronic systems.
The isolation voltage rating is 1.5 kV DC, ensuring electrical safety and noise suppression.
The MTBF for this unit exceeds 550,000 hours under benign conditions, indicating reliability.
This model has two outputs.
The converter is housed in a compact shielded metal case.
The dimensions of this model are 40.6 mm in length, 50.8 mm in width, and 9.5 mm in depth.
This converter is suitable for industrial electronics, communication equipment, and battery-operated devices.
