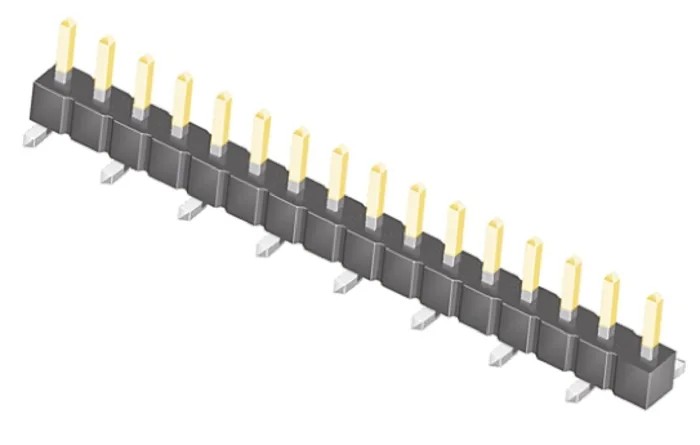

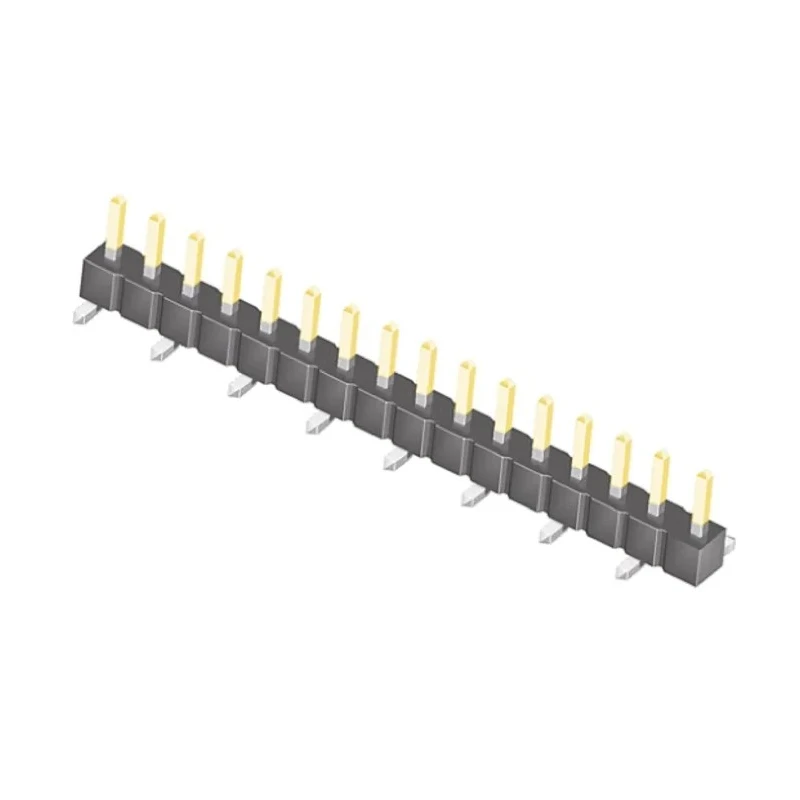

Samtec TSM Series Straight Surface Pin Header 16 Contacts 2.54 mm Pitch 1 Row Unshrouded TSM-116-01-L-SV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7A |
| Model | TSM-116-01-L-SV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.84mm |
Key Features
- Constructed with a black liquid crystal polymer housing for durability.
- Phosphor bronze contacts plated with 0.25μm gold on the post ensuring reliable conductivity.
- Surface mount technology (SMT) with solder termination type.
- Operates reliably within a wide temperature range from -55°C to 125°C.
- Rated for 7A current and 475V voltage applications.
- Male contact gender with a mating pin length of 5.84 mm.
- Designed for board-to-board and wire-to-board connector systems.
- Unshrouded and straight pin orientation for flexible PCB configurations.
Product Description
Samtec TSM-116-01-L-SV is a straight surface mount pin header designed for use in electronics assemblies requiring a reliable and compact board-to-board or wire-to-board connection.
This single-row header features 16 male contacts spaced at a standard 2.54 mm pitch, with a black liquid crystal polymer housing that withstands operating temperatures ranging from -55°C to 125°C.
The phosphor bronze contacts are plated with 0.25 micron gold on the post and matte tin on the tail, providing excellent conductivity and corrosion resistance.
It supports current up to 7A and voltage up to 475V, making it suitable for power connectors and signal transmission in industrial, commercial, and manufacturing electronic circuit boards.
The unshrouded design and straight pin orientation facilitate easy soldering and integration onto surface-mount PCBs. Durable liquid crystal polymer housing ensures longevity in demanding environments. Gold-plated phosphor bronze contacts offer high reliability and low contact resistance.
Designed for solder termination compatible with automated SMT processes. Wide operating temperature range supports diverse industrial applications. Suitable for use in power connectors, signal interfaces, and PCB wiring systems.
Unshrouded pin header simplifies mechanical assembly and inspection. Compact single row with 2.54 mm pitch adapts to standardized PCB layouts. Ideal for electronics manufacturing, testing equipment, and prototyping. This Samtec TSM series header complements a wide range of PCB connectors and socket strips, facilitating modular design and efficient electronic component assembly.
Explore additional PCB Headers and related electronic components at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 7A and a maximum voltage of 475V, making it suitable for power connectors and signal transmission applications.
The contacts on this pin header are spaced at a standard pitch of 2.54 mm, which is commonly used in PCB layouts.
It operates reliably within a wide temperature range from -55°C to 125°C, allowing for diverse industrial applications.
The housing is made of liquid crystal polymer, and the contacts are made of phosphor bronze with gold plating for excellent conductivity and corrosion resistance.
This model features solder termination, which is compatible with automated surface mount technology (SMT) processes.
This pin header has a total of 16 male contacts, designed for reliable connections in electronic assemblies.
The mating pin length for this model is 5.84 mm, facilitating easy connection to corresponding sockets.
It is designed for both board-to-board and wire-to-board connector systems, making it versatile for various applications.
This model is unshrouded, which simplifies mechanical assembly and inspection during installation.
The pins are oriented straight, allowing for flexible PCB configurations during assembly.
The country of origin for this product is India.
It is suitable for use in power connectors, signal interfaces, and PCB wiring systems, particularly in electronics manufacturing and prototyping.
